CAMTOP PT-RD Насос Through Rupture Disc Circulating Клапан | 15K PSI | DST Предохранительный клапан
5 inch (127.5 mm) & 3-7/8 inch
Product Overview
The CAMTOP PT-RD Насос Through Rupture Disc Safety Circulating Клапан is a pump-through rupture disc controlled safety valve and circulating valve. It functions as a single-cycle safety valve for end-of-test operations as a shut-off tool.
The PT-RD Safety Circulating Клапан can be converted to a PT-RD safety valve if the circulating ports are removed, or converted to a circulating valve by removing the valve mechanism and adding the circulating ports.
If placed above the gauge carrier, the PT-RD also acts as a backup shut-in tool for the final shut-in, minimizing wellbore storage during final pressure build-up.
Product: PT-RD Safety Circulating Клапан | Type: Насос Through Type RD Предохранительный клапан | Size: 5 inch (127.5 mm) & 3-7/8 inch | OD: 127.5 mm (5″) | ID: 57 mm | Length: 1413 mm
Product Image

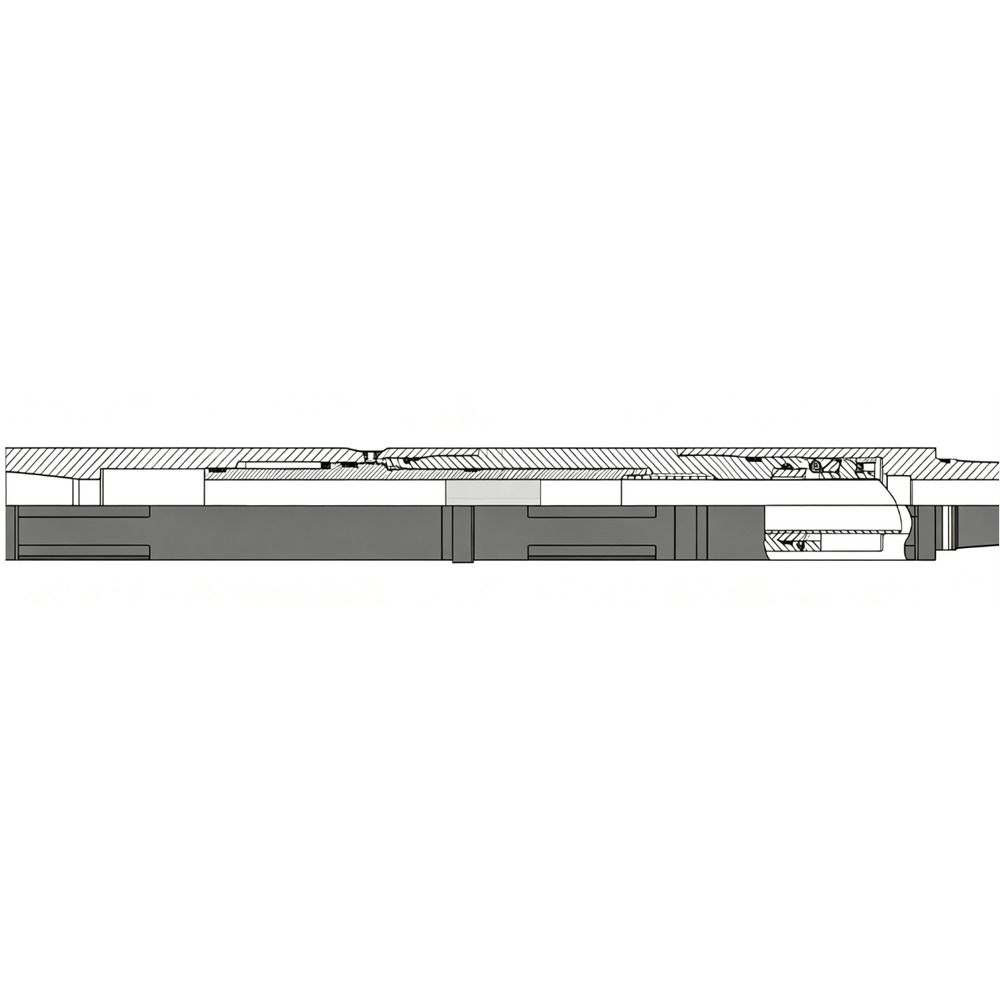

CAMTOP PT-RD Насос Through Rupture Disc Circulating Клапан — 5 inch, 15,000 psi, alloy steel, DST safety valve for cased hole drill stem testing
Key Features
- Dual Function Design: Functions as both a safety valve and circulating valve; can be converted between configurations by adding or removing components
- Насос Through Capability: Насос-through rupture disc controlled operation enables single-cycle safety shut-off at end of test operations
- Backup Shut-In Инструмент: When placed above the gauge carrier, acts as a backup shut-in tool for final shut-in, minimizing wellbore storage during pressure build-up
- Высокого давления Rating: Rated to 15,000 psi (105 MPa) working pressure with 149 MPa internal pressure strength
- H2S Sour Service: Compliant with NACE MR0175 for H2S-containing environments above 175F
- Shear Pin System: Adjustable shear pin system with up to 18 pins, single shear pin value 5.2 +/- 0.3 MPa for precise pressure control
- High Tensile Strength: 2431 KN tensile strength and 70 KN.m torque strength for demanding DST operations
- Alloy Стальной Construction: Manufactured from high-strength alloy steel for reliable downhole performance
Technical Specifications
| Item | Specification |
|---|---|
| Product | PT-RD Safety Circulating Клапан |
| Type | Насос Through Type RD Предохранительный клапан |
| Size | 5 inch (127.5 mm) & 3-7/8 inch |
| OD | 127.5 mm (5″) |
| ID | 57 mm |
| Length | 1413 mm |
| Working Pressure | 105 MPa (15,000 psi) |
| Internal Pressure Strength | 149 MPa |
| External Pressure Strength | 138 MPa |
| Tensile Strength | 2431 KN |
| Torque Strength | 70 KN.m |
| Single Shear Pin Value | 5.2 +/- 0.3 MPa |
| Shear Pin Qty (Max.) | 18 pcs |
| Working Temperature | -29C to +204C (-20F to +400F) |
| Service | H2S NACE MR0175 (Above 175F) |
| Connection Thread | 3-1/2″ IF BXP, 3-7/8″ CAS BXP |
| Application | Cased Hole Drill Шток Testing Service |
Applications
- Cased hole drill stem testing (DST) operations
- Oil and gas well downhole testing service
- Formation testing and well completion operations
- Perforation and tubing string testing
- Circulation and fluid conditioning during well testing
- Sour-service (H2S) well testing environments
- High-pressure and high-temperature downhole conditions
Ordering Information
When requesting a quote, please specify the following parameters:
- Инструмент Size / OD: Required outside diameter (e.g., 5″, 3-7/8″)
- Working Pressure: Required pressure rating (5,000 / 10,000 / 15,000 psi)
- Connection Type: IF, EUE, CAS, or custom thread
- Service Environment: Standard or H2S / sour service
- Shear Pin Configuration: Required operating pressure values
- Rupture Disc Pressure Rating: (if applicable)
- Quantity Required: For pricing and delivery schedule
Why Choose CAMTOP
- Specialized manufacturer of oilfield drill stem testing (DST) tools
- High-strength alloy steel and Inconel construction with full material traceability
- Multiple sizes, pressure ratings, and connection types available
- NACE MR0175 compliance for H2S / sour service environments
- API / ISO quality management and inspection procedures
- Application engineering support for DST string integration
- Competitive pricing with fast delivery from China
