Description

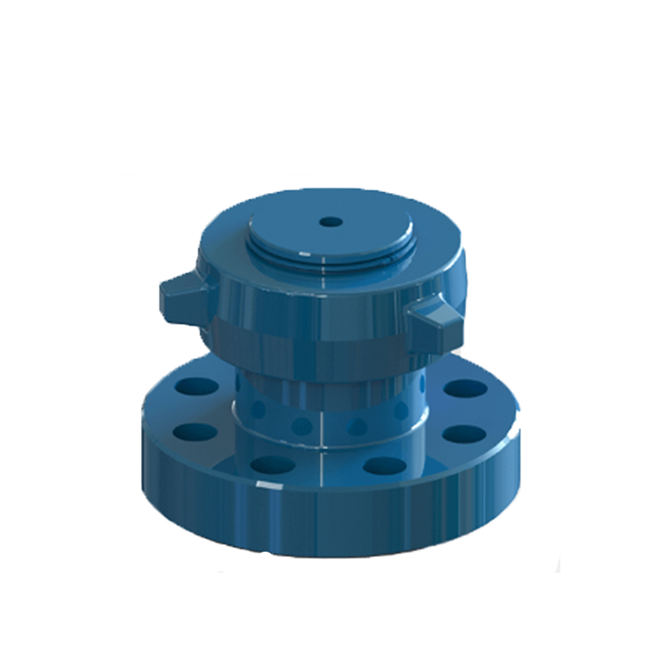

API-6A Oilfield Устьевое оборудование Фонтанная арматура Cap
| Min. Order: | 5 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CIF,EXW |
| Payment Terms: | L/C, T/T |
| Place of Origin: | Jiangsu, China (Mainland) |
| Means of Transport: | Ocean |
| Production Capacity: | 2000 Pieces/Month |
| Packing: | Plywood |
Product Attribute
| Delivery Date: | 30 Days | Bore Size: | 2-1/16″ – 7-1/16″ |
|---|---|---|---|
| Rated Working Pressure: | 2000 PSI – 15000 PSI | Material: | AISI4130 Integral Кованый |
| Lifting Thread: | 2-3/8″ EUE, 2-7/8″ EUE, 3-1/2″ EUE, 4-1/2″ EUE | Standard Carried: | API Spec 6A, NACE-MR0175 |
| Material Class: | AA, BB, CC, DD, EE, FF | Temp Class: | K, L, P, R, S, T, U, V |
| Product Specification Level: | PSL1, PSL2, PSL3, PSL3G | Performance Requirement: | PR1, PR2 |
| Application: | Устьевое оборудование Фонтанная арматура |
Product Description
A Фонтанная арматура Cap or Tree Cap, also known as Bottom Hole Test Переходник – BHTA, is an important component of Устьевое оборудование В сборе and Фонтанная арматура. As its name suggests, tree cap is often installed on the upper section of the Swab Клапан which is right on top of the Фонтанная арматура. You will constantly find standard API-UPTBG(EUE) lift thread in the body of tree cap. The top plug of the tree cap has a thread for mounting a pressure gauge to measure well pressure. The Tree Cap provides access to Устьевое оборудование В сборе and Фонтанная арматура for service and monitoring. It provides quick access to the tubing bore for bottom hole testing, installing down-hole equipment, swabbing, and other services.
All of Camtop’s Устьевое оборудование Фонтанная арматура Caps are fully designed, manufactured, and tested in accordance with API Spec 6A & NACE MR0175 standards. Available in nominal bore sizes from 2-1/16″ to 7-1/16″ and working pressure ranging from 2000PSI to 20000PSI. The standard material for our tree caps is high quality integral forged AISI 4130 alloy steel, stainless steel and other material and sizes are also available upon request.
Detailed Specifications:
Product Name: Устьевое оборудование Фонтанная арматура Cap, Bottom Hole Test Переходник – BHTA
Bore Size: 2-1/16″, 2-9/16″, 3-1/16″, 3-1/8″, 4-1/16″, 5-1/8″, 7-1/16″ or customized
Lifting Thread: 2-3/8″ EUE, 2-7/8″ EUE, 3-1/2″ EUE, 4-1/2″ EUE etc
Connection: API 6A Фланец
Standards: API Spec 6A, NACE MR0175, ISO 9001, ISO14001 etc
Working Pressure: 2000 PSI to 15000 PSI
Material Class: AA, BB, CC DD, EE, FF
Material: AISI 4130 (Integral Кованый), Stainless Стальной
Temp Class: K-U
Performance Requirement: PR1, PR2
Product Specification Level: PSL1, PSL2, PSL3, PSL3G
Application: Устьевое оборудование В сборе and Фонтанная арматура
Paint Color: Red, Blue, or Customized
Traceability: Camtop’s tree caps are supplied with full traceability documentation for each component.
Origin: Yancheng, China
