Description

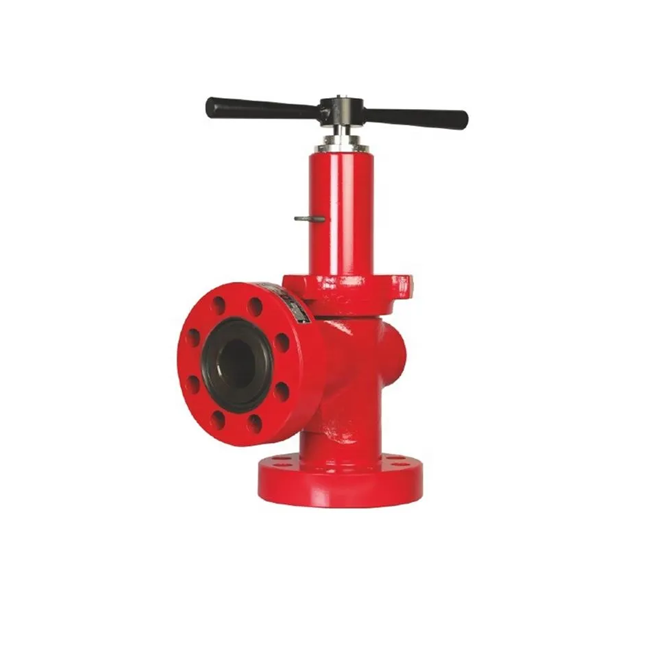

API 6A adjustalbe Дроссельный клапан for wellhead and choke manifold

Дроссельный клапан is used to control the flow rate of fluids for a broad range of application, including

well testing, wellheads, stream injection, choke manifold and well clean operation, etc.,

our adjustable choke valve is improved from Cameron H2 series adjustable choke,

which is designed and manufactured in accordance with API 6A and API 16C standard,

easy operation and simple maintenance, reasonable price.
Manufactured and tested in accordance with API 6A.
Carbide alloy is embedded into stem needle of the valve, seat.
Flow adjustment is indicated on a measuring scale.
Composite rubber-plastic stem lip packing reduces operating torque.
Max orifice: 1”-3″.
Working Pressure: 2,000PSI – 20,000PSI
Material Class: AA – EE
Connection Type: Фланец, Быстросъёмное соединение, Thread

Inlet	Outlet	Working Pressure	Корпус	Dimensions
				X	Y
1″ Maximum Orifice
2″ LP	2″ LP	3000	A	3 7/16″	4 9/16″
2″ LP	2″ LP	5000	A	3 7/16″	4 9/16″
2 1/16″ 2000 Flg	2″ LP	2000	C	6 11/16″	4 9/16″
2 1/16″ 5000 Flg	2″ LP	3000	C	6 7/8″	4 9/16″
2 1/16″ 5000 Flg	2″ LP	5000	C	6 7/8″	4 9/16″
2 1/16″ 2000 Flg	2 1/16″ 2000 Flg	2000	D	6 11/16″	7 13/16″
2 1/16″ 5000 Flg	2 1/16″ 5000 Flg	3000	D	6 7/8″	8″
2 1/16″ 5000 Flg	2 1/16″ 5000 Flg	5000	D	6 7/8″	8″
2 9/16″ 5000 Flg	2 9/16″ 5000 Flg	3000	D	6 15/16″	8 1/4″
2 9/16″ 5000 Flg	2 9/16″ 5000 Flg	5000	D	6 15/16″	8 1/4″
3 1/8″ 3000 Flg	3 1/8″ 3000 Flg	3000	D	7 13/16″	8 15/16″
3 1/8″ 5000 Flg	3 1/8″ 5000 Flg	5000	D	9 11/16″	9 9/16″
1 13/16″ 10,000 Flg	1 13/16″ 10,000 Flg	10,000	D	7 11/16″	8 13/16″
2 1/16″ 10,000 Flg	2 1/16″ 10,000 Flg	10,000	D	7 11/16″	8 13/16″
2 9/16″ 10,000 Flg	2 9/16″ 10,000 Flg	10,000	D	8 3/16″	9 5/16″
1 13/16″ 15,000 Flg	1 13/16″ 15,000 Flg	15,000	D	8 15/32″	9 5/8″
2 1/16″ 15,000 Flg	2 1/16″ 15,000 Flg	15,000	D	8 7/8″	10 5/16″
2 9/16″ 15,000 Flg	2 9/16″ 15,000 Flg	15,000	D	10 1/2″	11 3/4″
3 1/16″ 15,000 Flg	3 1/16″ 15,000 Flg	15,000	D	10 11/32″	11 5/8″
2″ Maximum Orifice
3″ L.P.	3″ L.P.	3000	A	4 1/2″	7″
3 1/8″ 5000 Flg	3″ LP	3000	C	8 7/8″	7″
3 1/8″ 5000 Flg	3″ LP	3000	C	8 7/8″	7″
2 1/16″ 5000 Flg	2 1/16″ 5000 Flg	5000	D	8 15/16″	11 7/16″
2 9/16″ 5000 Flg	2 9/16″ 5000 Flg	5000	D	8 7/8″	11 3/4″
3 1/8″ 2000 Flg	3 1/8″ 2000 Flg	2000	D	8 7/8″	11 3/8″
3 1/8″ 3000 Flg	3 1/8″ 3000 Flg	3000	D	8 7/8″	11 3/8″
3 1/8″ 5000 Flg	3 1/8″ 5000 Flg	5000	D	8 7/8″	11 3/8″
4 1/16″ 3000 Flg	4 1/16″ 3000 Flg	3000	D	10 3/8″	11 5/8″
4 1/16″ 5000 Flg	4 1/16″ 5000 Flg	5000	D	10 1/8″	12 5/8″
2 1/16″ 10,000 Flg	2 1/16″ 10,000 Flg	10,000	D	10 3/8″	12″
2 9/16″ 10,000 Flg	2 9/16″ 10,000 Flg	10,000	D	10 3/8″	11 3/4″
3 1/16″ 10,000 Flg	3 1/16″ 10,000 Flg	10,000	D	10 3/8″	11 3/4″
4 1/16″ 10,000 Flg	4 1/16″ 10,000 Flg	10,000	D	9 15/16″	11 1/2″
3″ Maximum Orifice
4″ LP	4″ LP	3000	A	6 1/4″	7 3/4″
