Description

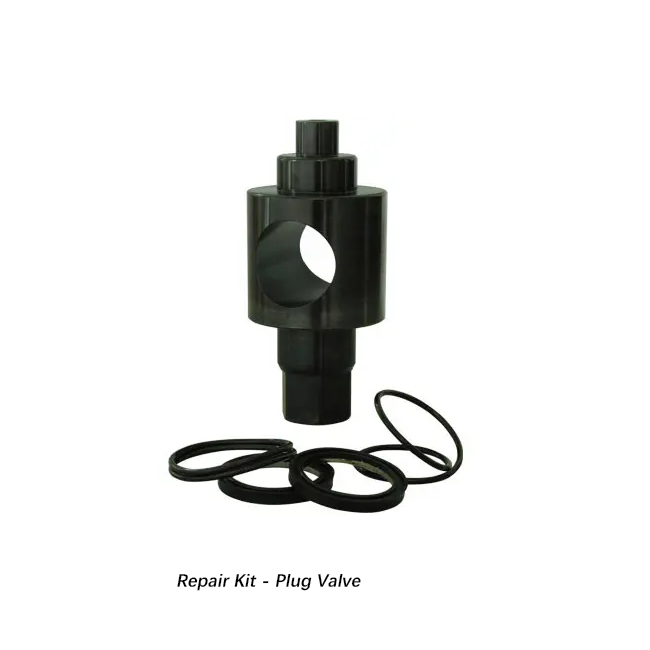

Plug Клапан Repair Комплект
We can provide Plug valve repair kits of FMC Technologies, SPM & NOV for standard service, or low temperature and sour gas condition. These repair kits are replaceable and interchangeable for Weir SPM, FMC 2 and 3 DR plug Клапан, which is including plug, seal segment, side segment, elastomer seals, and grease fittings.
Specification
Size:
1″ Plug Клапан Low Torque (1 x 1) Male x Female FIG1502
1″ Plug Клапан Low Torque (1 x 2) Male x Female FIG1502
2″ Plug Клапан Low Torque (2 x 2) Male x Female FIG1502
3″ Plug Клапан Low Torque (3 x 3) Male x Female FIG1502
Cold working pressures: 42Mpa (6000Psi), 70Mpa (10000Psi), 105Mpa (15000Psi).
Connection type: hammer union (Fig.602, Fig.1002, Fig.1502 MXM, MXF, and FXF), LP female thread and LP external thread and the plug valve with bottom base can be designed upon the client’s request.
| Name | 1″×2″plug valve | 2″×2″plug valve | 3″×3″plug valve | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Qty. | 105Mpa | 70Mpa | 42Mpa | 105Mpa | 70Mpa | 42Mpa | 105Mpa | 70Mpa | 42Mpa |
| 15000psi | 10000psi | 6000psi | 15000psi | 10000psi | 6000psi | 15000psi | 10000psi | 6000psi | |
| Side segment | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Уплотнение segment | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Inner seal and Outer seal | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Lock nut, Hex | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| O-ring for body cap | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| O-ring for plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Nylon backup ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Grease Retainer Кольцо | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Grease fitting | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
