Description

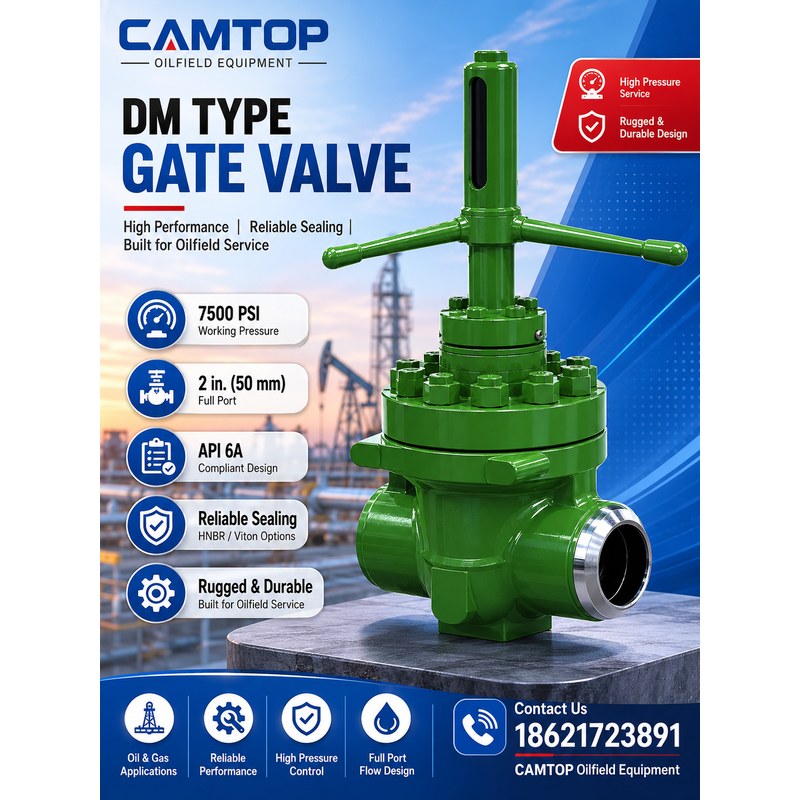

DM Type Задвижка 2″ 7500 PSI Full Port
High-performance 2″ 7500 PSI full port DM type gate valve designed for oilfield drilling,
wellhead, choke & kill manifold, fracturing, cementing, and pressure control applications.
Key Specifications
| Item | Specification |
|---|---|
| Product Name | DM Type Задвижка |
| Клапан Size | 2 in. (50 mm) Full Port |
| Working Pressure | 7,500 PSI |
| Design Standard | API 6A |
| End Connection | Flanged or Weld End |
| Клапан Седло ID | 2.00 in. (51 mm) |
| API Кольцо Number | BX-152 |
| Number of Handle Turns | 8.60 |
| Service Condition | General Service |
Dimensional Data & Weights
| Dimension | 2 in. (50 mm) FP 7500 WP |
|---|---|
| Weld End Length | 9.00 in. (229 mm) |
| Flanged End API Length | 20.50 in. (521 mm) |
| Клапан Седло ID | 2.00 in. (51 mm) |
| API Кольцо Number | BX-152 |
| Фланец ID | 2.06 in. (52 mm) |
| Фланец OD | 7.88 in. (200 mm) |
| Фланец Bolts | 8 × 3/4 in. |
| Handle Turns from Open to Closed | 8.60 |
| Weight – Weld End | 76 lb. (34 kg) |
| Weight – Flanged End | 124 lb. (56 kg) |
Material & Sealing Options
- HNBR sealing option for high-temperature and severe oilfield service
- Viton sealing option for chemical resistance and high-performance sealing
- Rugged body construction for demanding pressure control applications
- Full port design for efficient flow and reduced pressure drop
Applications
- Устьевое оборудование systems
- Choke and kill manifolds
- Fracturing equipment
- Cementing units
- Flowback systems
- Production manifolds
- Offshore and onshore drilling operations
