Description

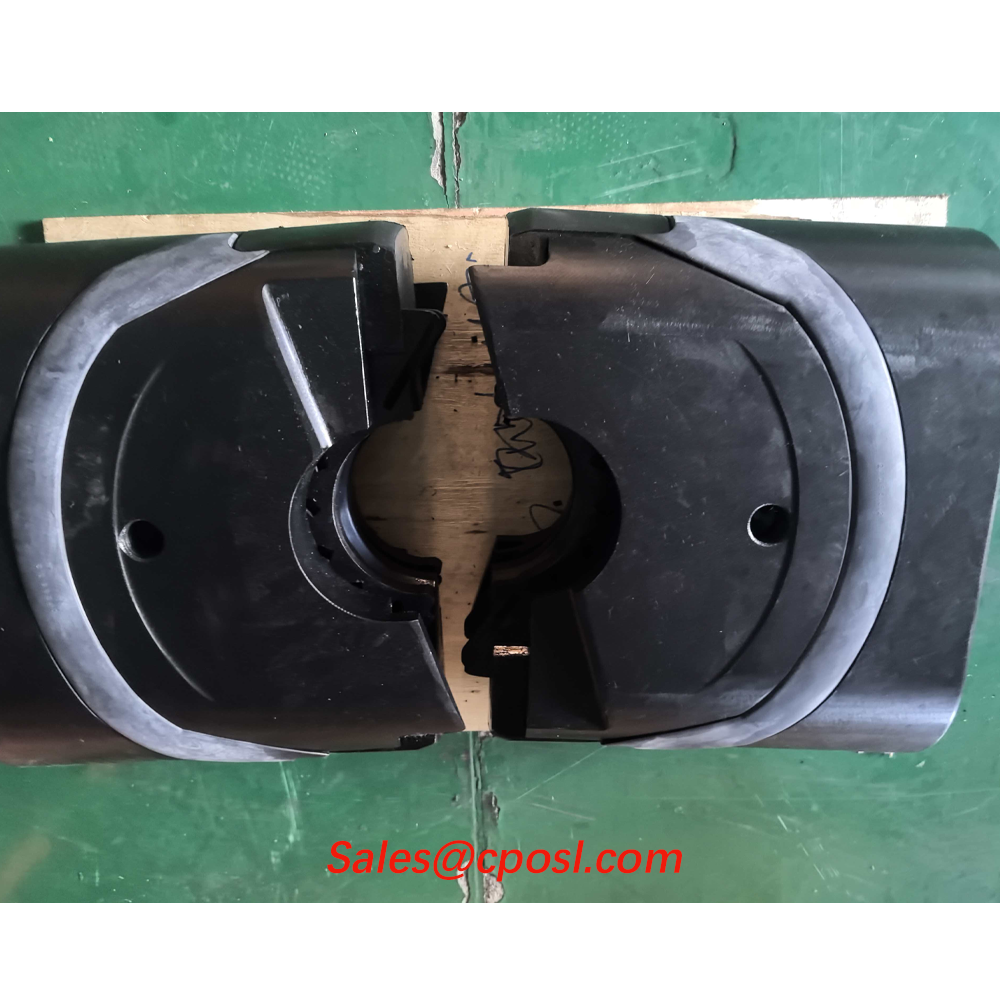

U AND UM ПВО Pipe Rams

The standard “U” ПВО pipe rams are interchangeable for the U and UM ПВО’s.

Pipe rams are available for use in Cameron U, and UM ПВО’s to fit all commonly used sizes of tubing, drill pipe, drill collar or casing within the ranges in the charts of the following pages.

Cameron pipe rams include the following features:

1.Cameron pipe rams are self-feeding and incorporate a large reservoir of packer rubber to ensure a long lasting seal under all conditions.

2.Ram packers lock into place and are not dislodged by well flow.

3.All Cameron pipe rams are suitable for H2S service per NACE MR-01-75.

4.CAMRAMTM top seals are standard for all U and UM ПВО pipe rams from 7-1/16” through 18-3/4” sizes.Пакер part numbers beginning with 644xxx indicate the CAMRAM lipped-plate design. Other part num bers may use standard elastomer material and reinforced plates. Verify this with you Cameron representative.

CAMRAM 350TM packers and top seals are available for high temperature service and for service in which concentra tions of H2S are expected.

Part Numbers for U & UM ПВО Pipe Rams
Pipe Size (in.)	21-1/4″ Bore 2000 psi 20-3/4″ Bore 3,000 psi (*) Top Уплотнение 2163621-01			26-3/4″ Bore 2000 and 3,000 psi (*) Top Уплотнение 2163566-01
								В сборе	Ram	Пакер	В сборе	B	Ram	Пакер
	Blind	044256-01-00-02	044191-05	2163612-01	044260-01-00-01	B	044209-01-00-01	2163561-01
1.05	——	——	——	——	——	——	——
1.315	——	——	——	——	——	——	——
1.66	——	——	——	——	——	——	——
1.9	——	——	——	——	——	——	——
2.062	——	——	——	——	——	——	——
2.375	——	——	——	044260-02	——	——	2163559-01
2.875	2010278-01-01	2010261-02-01	2163613-02	044260-03	——	——	2163559-02
3.5	044256-02	——	2163613-03	044260-04	——	——	2163559-03
4	044256-03	——	2163613-04	044260-05	——	——	2163559-04
4.5	044256-04	——	2163613-05	044260-06	——	——	2163559-05
4.75	044256-05	——	——	——	——	——	——
5	044256-06-00-01	645328-03-00-01	2163613-06	044260-07-00-01	B	614018-04-00-01	2163559-06
5.5	044256-07-00-04	044193-02-00-01	2163613-07	044260-08-00-01	B	614018-05-00-01	2163559-07
5.75	——	——	——	——	——	——	——
5.875	044256-32-00-01	645328-05-00-01	2163613-18	044260-24-00-01	——	614019-07-00-01	2163559-23
6	236534-20-04-01	236534-20-04	031228-10-00-02	044260-09	——	——	2163559-08
6.625	236534-20-04-01	——	2163613-08	044260-10-00-01	——	614019-02-00-01	2163559-09
7	236534-21-04-01	——	2163613-09	044260-11	——	——	2163559-10
7.625	044256-11	——	2163613-10	044260-12	——	——	2163559-11
7.75		——	——	——	——	——	——
8.625	044256-13	——	2010583-14		——	——	——
9	044256-14	——	——	044260-14	——	——	2163559-13
9.625	044256-15	——	——	044260-15	——	——	2163559-14
10.75	044256-16	——	2010583-17	044260-16	——	——	2163559-15
11.75	044256-17	——		044260-17	——	——	2163559-16
13.375	044256-18-00-02	044194-03-00-02	2163613-15	044260-18-00-01	B	614020-04-00-01	2163559-17
13.625	044256-21-00-01	044194-05-00-01	2163613-20	——	——	——	——
13.75	044256-19		2010583-19	——	——	——	——
16	044256-20-00-01	44195-01-00-01	2010583-21	044260-19	——	——	2163559-18
18.625	044256-22-00-01	614459-01-00-01	2163613-17	044260-22-00-01	B	614021-04-00-01	2163559-19
20	——	——	——	044260-20-00-01	——	614021-02-00-01	2163559-21
17	044256-25	——	——	044260-25-00-01	——	614021-06-00-01	2163559-24
22	——	——	——	044260-23-00-01	——	614021-05-00-01	2163559-22
