Description

Штанга ПВО

Features of Штанга ПВО:

  • The working pressure: 1500PSI to 5000PSI.
  • Suitable for sucker rod specifications: 5/8″~1 1/2″.
  • Easy to operation while drilling.
  • API certified product, quality can be assured.
  • Short delivery time.

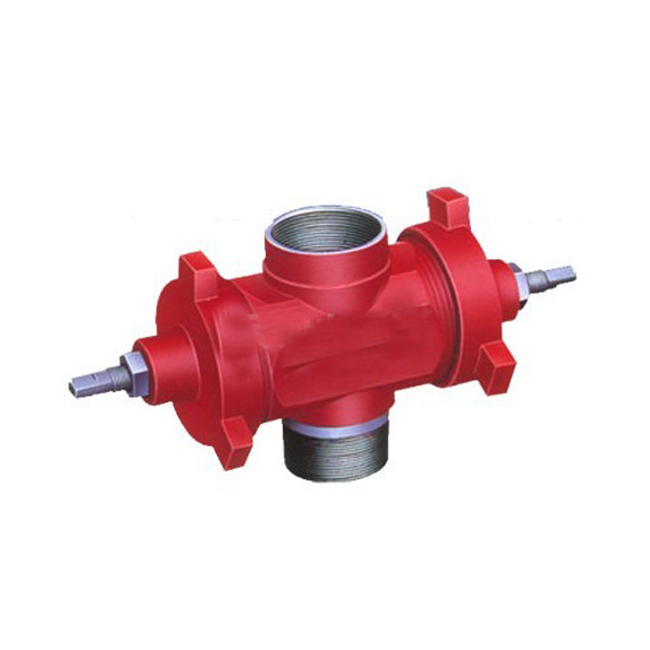

Sucker rod ПВО is used to prevent the oil and gas from leaking and ensure the washing wells and etc, its max working pressure is 1500psi and it is used for 1/2″ to 1-1/8″ sucker rod.

Technical Parameters of Sucker rod ПВО:

Max. Рабочее давление: 10.5MPa (1,500PSI)

Suitable Штанга: 5/8-1.1/8 (16-29mm)

Верхний and Нижний Резьба Соединение: 3.1/2 UP TBG

size 1″,1-1/8″,1-1/4″,1-1/2″,1-3/4″
structure single packed, double packed
matierial carbon steel AISI 1018-1045
alloy steel AISI 4130-4140
working pressure 1500psi
working tempreture -20°C to 200 °C
connection NUE, EUE, LP
