Description

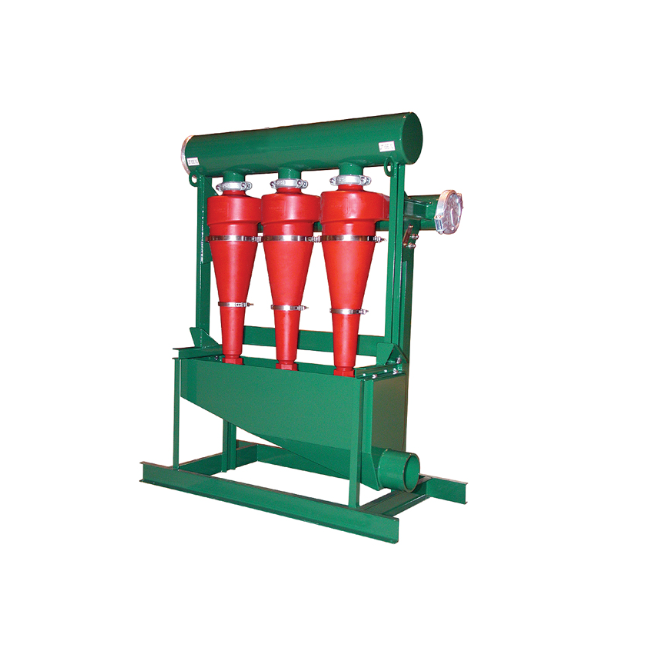

desander

The desander with underflow shaker is also called mini desander cleaner which is applicable for both weighted and unweighted drilling mud, while traditional desander no underflow vibrating screen only for unweighted drilling fluids. And comparing with large size mud cleaner, the Mini Desander is cost-effective. For compact mud system used in HDD, CBM, water well drilling and mining project, Mini desander is an Ideal choice.

  • Desander Options with shaker and without shaker for flexible application.
  • Desander Cyclone PU material with better Истирание resistance.
  • No under shaker design structure compact and assembly flexible.
  • Mini desander cleaner with shaker for both weighted / unweighted mud in various drilling.
Модель Z200-D528*2 Z528-D1056 Z528-D1584
Производительность 120/240m3/h 240m3/h (1056GPM) 360m3/h(1584GPM)
Desander Размер 10 Inch
Desander Qty 1/2pcs 2pcs 3pcs
Рабочее давление 0.25~0.4Mpa
Feeding Размер 6 Inch
Output Размер 8 Inch
Bottom Shale Shaker Specs
Shaker Модель Z200 Z528
Вибрация Mode Linear Motion
Вибрация Мотор 2×0.75Kw 2×1.72Kw
Angle Adjust Мотор N/A 0.55Kw
Screen Qty 2pcs 3pcs
Screen Размер: L×W 750×900mm 700×1250mm
