1. Product Overview
The CAMTOP 7-1/16″ 5M psi Bolted-Крышка Сферический превентор is a forged alloy-steel wellhead pressure-control device engineered for 5,000-psi working pressure (PR1 service class) on onshore and offshore drilling rigs. Built to API 16A / 16D Class B with NACE MR0175 sour-service compliance, this compact 7-1/16″-bore (179.4 mm) spherical ПВО replaces the legacy 7-1/16″ 10M version for wells where 5M-class pressure ratings are sufficient — giving operators a lighter, lower-cost alternative without sacrificing safety. The bolted-cover design grants fast field access to internal wear bands and elastomer packers for fast rebuild and minimum downtime.
This page also includes CAMTOP’s complete 28-part BOM (Bills of Materials) plus the Figure 4-13 Bolted-Крышка Exploded View with all 20 component positions identified. Same spare-part rigor CAMTOP issues for its overhaul kits — giving purchasing, maintenance, and re-manufacturing teams a single-source P/N reference.

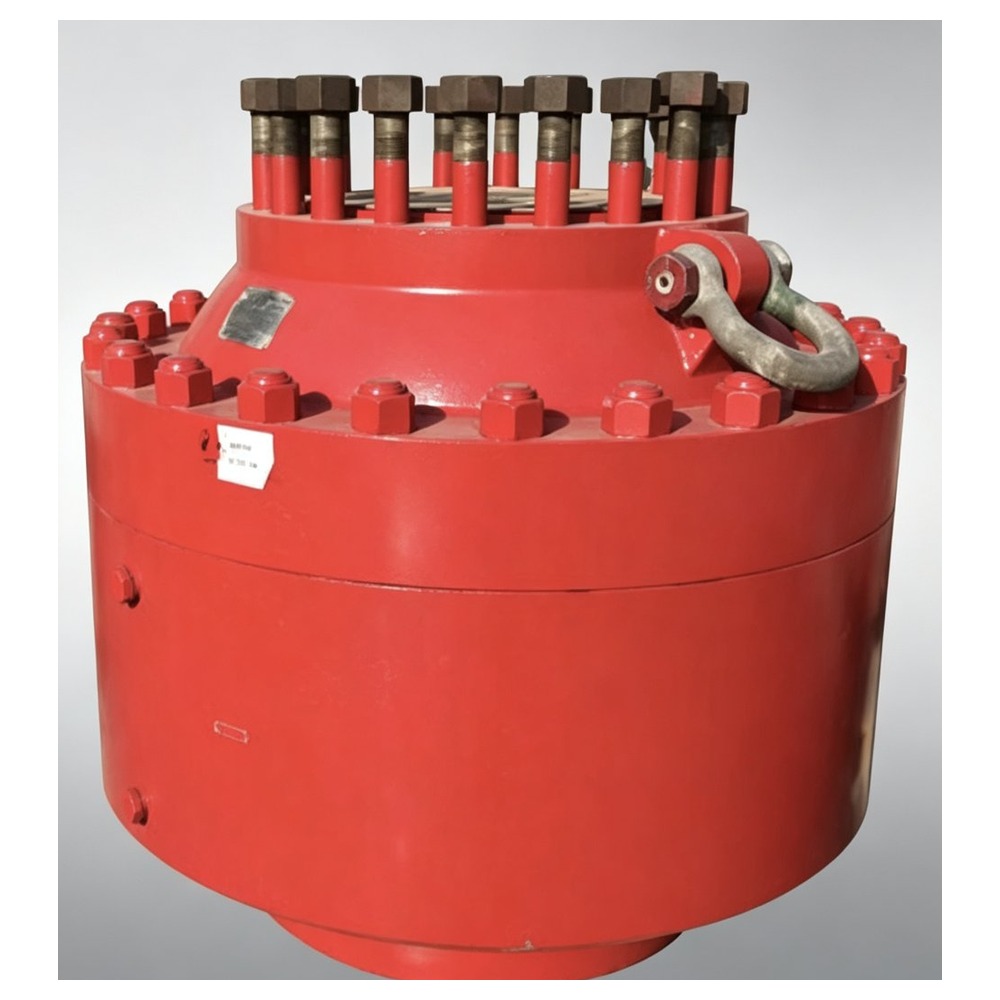

2. Product Image
3. Key Features
- API 16A / 16D Class B, 5,000 psi WP / 10,000 psi Test — fully API-compliant pressure-control device for onshore and offshore service
- Кованый Alloy-Стальной Корпус (ASTM A4130 / A4140) — heat-treated, ultrasonic-tested, red epoxy-coated for corrosion resistance
- Bolted-Крышка Design — 16× B7 studs / 2H nuts permit rapid field access for wear-band and elastomer replacement
- Replaceable Wear Bands on Поршень, Нижний Корпус, and Переходник Кольцо — restore clearances without scrapping forged housings
- Dual Elastomer Packers (Nitrile Blue + Natural Red) — field-interchangeable elastomer options for hot, sour, or oil-base mud service
- NACE MR0175 Sour H₂S Compliance — qualified for HPHT and sour-service wells without special trim
- Compact 7-1/16″ (179.4 mm) Bore — seals 2-3/8″ to 5-1/2″ drill pipe and all standard wireline tools
- Пневматический / Гидравлический Operator Compatible — interfaces with standard accumulator closing units (CAMTOP / OEM)
- Full Spare-Part Coverage — 28 part numbers readily available from CAMTOP for fast rebuild and field overhaul
- Optional Уплотнение Комплект (P/N 155076) and Гидроаккумулятор Комплект (P/N 152715) available for turnkey rebuild support
4. Technical Specifications
| Bore Size (Inches) | 7-1/16″ (179.4 mm) |
| Working Pressure (WP) | 5,000 psi (34.5 MPa) |
| Test Pressure | 10,000 psi (68.9 MPa) |
| API 16A Pressure Class | Class B (PR1, 5M) |
| API Standard | API 16A / 16D, NACE MR0175 |
| Корпус Material | Кованый Alloy Стальной ASTM A4130 / A4140 |
| Крышка Type | Bolted-Крышка with 16× B7 Studs / 2H Nuts |
| Elastomer Пакер Options | Nitrile (Blue) + Natural (Red) — temperature -29°C to +121°C |
| Wear Bands (P/N 150613 / 152344) | Replaceable on Поршень, Нижний Корпус, and Переходник Кольцо |
| End Connection (Standard) | API 6A Flanged Top + Flanged Bottom (Studded for Fast Make-Up) |
| Service | H₂S Sour / CO₂ / Oil-Base Mud / Water-Base Mud |
| Operating Temperature | -29°C to +121°C (-20°F to +250°F) |
| Гидравлический Operating Pressure | 1,500–3,000 psi closing circuit |
| Weight (Approx.) | 1,650 kg / 3,640 lb |
| Height (Approx.) | 1,080 mm / 42.5″ |
| Surface Finish | Red Epoxy Coated (RAL 3000) |
| Optional Уплотнение Комплект | P/N 155076 (recommended spare) |
| Optional Гидроаккумулятор Комплект | P/N 152715 (non-standard accessory) |
5. Component Breakdown & Construction
The figure below shows CAMTOP’s standard Figure 4-13. Bolted-Крышка Exploded View with all 20 callout positions marking the internal sealing and wear-protection elements:
| ① | Гайка for Top API Фланец | ⑪ | Уплотнение, Переходник ID Нижний (4) — P/N 031002 |
| ② | Шпилька for Top API Фланец — P/N 011020 | ⑫ | Поршень — P/N 150718 (replaceable wear bands at ⑭ ⑯ ⑱) |
| ③ | Гайка — P/N 020106 | ⑬ | Wear Band (between ⑫ and ⑮) |
| ④ | Шпилька — P/N 150790 | ⑭ | Уплотнение, Поршень OD Верхний (3) and Нижний (1) — P/N 030780×2 |
| ⑤ | Anchor Shackle — P/N 060496 | ⑮ | Wear Band (between ⑫ and ⑯) |
| ⑥ | Верхний Корпус, Studded — P/N 150726 | ⑯ | Уплотнение, Поршень ID Верхний (A) — P/N 031105 |
| ⑦ | Sealing Element (Nitrile Blue / Natural Red) | ⑰ | Уплотнение, Поршень ID Нижний (2) — P/N 031000 |
| ⑧ | Уплотнение, Переходник OD (5) — P/N 030408 | ⑱ | Wear Band (lower housing interface) |
| ⑨ | Уплотнение, Переходник Top (C) — P/N 030405 | ⑲ | Нижний Корпус, Flanged — P/N 152171 |
| ⑩ | Переходник Кольцо* — P/N 152163 (with wear band on some bolted-cover sphericals) | ⑳ | Pipe Plug — P/N 066335 |
* Some bolted-cover sphericals have a wear band on the adapter ring. This wear band is not shown above.
6. Bill of Materials (28-Part Complete BOM)
Below is CAMTOP’s complete 28-part maintenance BOM for the 7-1/16″ 5M psi Bolted-Крышка Сферический превентор. All P/Ns are stocked and ready for immediate spare-part dispatch.
6.1 BOM Reference Images
6.2 Complete 28-Part Spare-Part List
| Description | P/N | Qty. |
|---|---|---|
| Нижний Корпус-Flanged | 152171 | 1 |
| Верхний Корпус-Studded | 150726 | 1 |
| Поршень | 150718 | 1 |
| Переходник Кольцо | 152163 | 1 |
| Nitrile (Blue) | 150847 | 1 |
| Natural (Red) | 150848 | 1 |
| Шпилька | 150790 | 1 Комплект** |
| Гайка | 020106 | 1 Комплект** |
| Уплотнение-Поршень I.D.-Верхний | 031105 | 1 |
| Уплотнение-Поршень I.D.-Нижний | 031000 | 1 |
| Уплотнение-Поршень O.D. | 030780 | 2 |
| Уплотнение-Переходник I.D.-Верхний | 031104 | 1 |
| Уплотнение-Переходник I.D.-Нижний | 031002 |
