Description

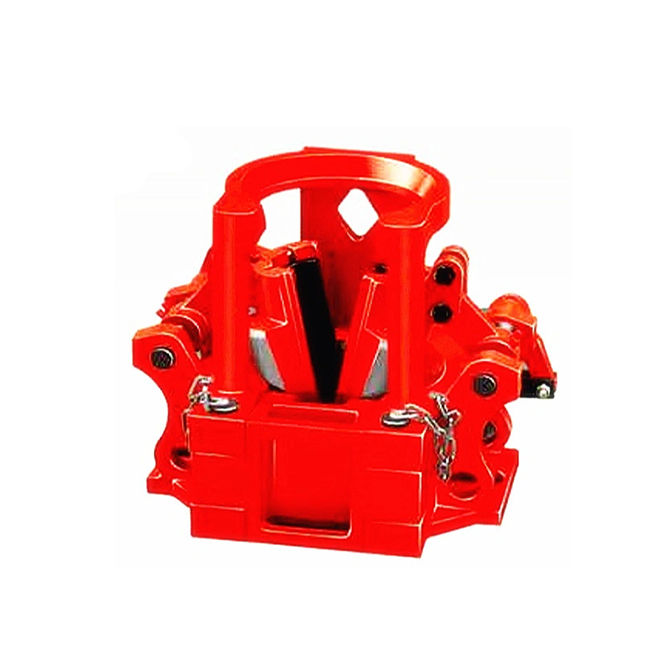

НКТ spider
The Пневматический НКТ Спайдер is used for oil well drilling and workover servicing operations. The spider allows the cable pass through during operation. Conforms to API standard. INCLUDE: Тип C, CHD, E, and F
Designed for heavy duty use. It has a size range of 1.315″ through 5 1/2″ by changing out slip bodies and inserts. It is made of high alloy heat treated steel for strength and resistance to wear.
| Модель | OD of the tubulars | specification of the slip bodies | Номинальная грузоподъёмность |
|---|---|---|---|
| C | 1.315-31/2 | 31/2 | 80tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Цельный) | ||
| 5 | 5(Цельный) | ||
| 51/2 | 51/2(Цельный) | ||
| CHD | 1.315-31/2 | 31/2 | 120tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Цельный) | ||
| 5 | 5(Цельный) | ||
| 51/2 | 51/2(Цельный) | ||
| HD | 1.315-31/2 | 31/2 | 125tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Цельный) | ||
| 5 | 5(Цельный) | ||
| 51/2 | 51/2(Цельный) | ||
| E | 23/8-31/2 | 31/2 | 175tons |
| 4-51/2 | 51/2 | ||
| 51/2-7 | 7 | ||
| 75/8 | 75/8 (Цельный) |
