Power Slips 动力卡瓦
API 7K | CE & ATEX Certified | Load Capacity up to 1,500 sTon | 7 Models Available
Product Overview
CAMTOP Power Slips are high-performance drill pipe slips engineered for demanding oilfield drilling operations. Available in spring-actuated, pneumatic, electro-hydraulic, and full hydraulic configurations, they provide reliable pipe handling on drilling rigs with load capacities from 350 to 1,500 short tons. All hydraulic models feature interlocking safety systems, slip-set signal confirmation, and broad compatibility with industry-standard rotary configurations.
Models: PS-15 (Пружина) | PS-16 (Air) | PSF (Electro-Гидравлический) | PS-21 (Гидравлический) | PS-30 (Гидравлический) | SLT (Гидравлический) | PS-495 (Heavy-Duty Гидравлический)

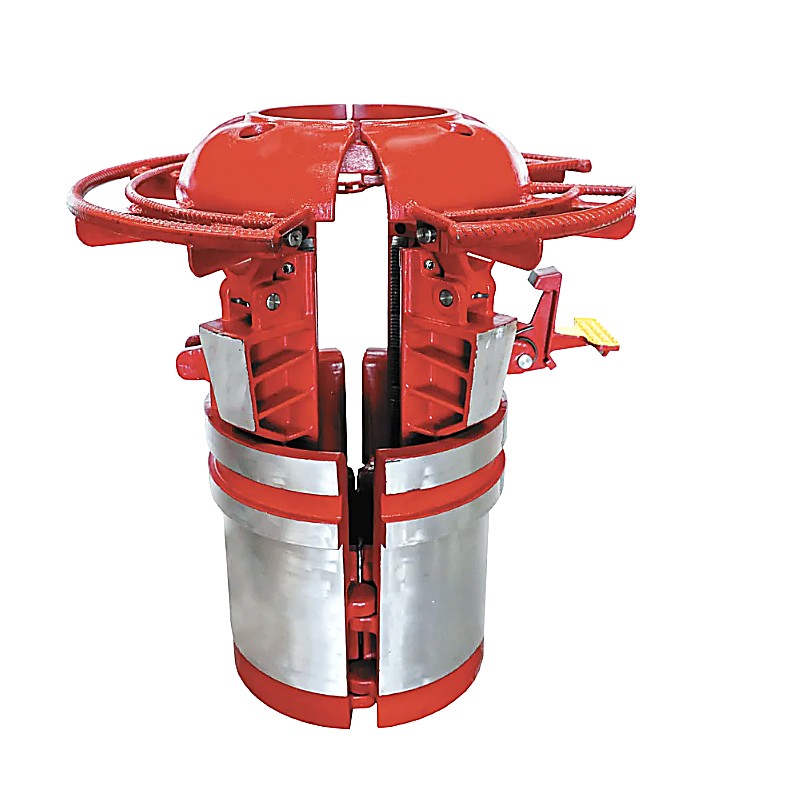

Product Image
CAMTOP Power Slips — Available in 7 models for various rig configurations
В сборе Drawing
CAMTOP Power Slips General В сборе Drawing — For reference only
Key Features
- Multiple Actuation Types: Пружина (PS-15), pneumatic (PS-16), electro-hydraulic (PSF), and full hydraulic (PS-21/30/495/SLT) to match any rig configuration
- High Load Capacity: From 350 sTon to 1,500 sTon across the model range, suitable for workover to deep drilling operations
- API 7K Compliant: Key models (PS-15, PS-16, PS-21, PS-30, PS-495) manufactured to API 7K standards for drilling and well servicing equipment
- CE & ATEX Certified: Air and hydraulic models carry CE and ATEX certifications for hazardous environment operation
- Interlocking Safety System: Гидравлический models (PS-16, PS-21, PS-30, PS-495) feature mechanical interlocks preventing accidental slip release under load
- Automated Greasing: PS-21 and PS-30 include automated greasing systems reducing maintenance downtime
- Top Крышка Protection: Heavy-duty models (PS-21, PS-30, PS-495) equipped with protective top covers
- Плашка-Комплект Signal Confirmation: Air and hydraulic models provide positive slip-set confirmation for driller awareness
- Single Operator Control: All powered models require only 1 crew member, improving rig safety and efficiency
- Broad Rotary Compatibility: Fits Oilwell, Wirth, Gardner Denver, Emsco, Ideco, Varco/National, and direct bowl-mount configurations
- Multi-Tubular Capability: PS-21 and PS-30 handle drill pipe, casing, drill collars, and tubing with quick-change slip inserts
- Extreme Temperature Range: Operates from -4°F to 131°F (-20°C to 55°C); lower temperature variants available on request
Technical Specifications — Model Comparison
| Specification | PS-15 | PS-16 | PSF | PS-21 | PS-30 | SLT | PS-495 |
|---|---|---|---|---|---|---|---|
| Actuation | Пружина | Air | Electro-Гидравлический | Гидравлический | Гидравлический | Гидравлический | Гидравлический |
| Система управления | Ручной | Auto Remote (Hand/Foot) |
Auto Remote (Hand/Foot) |
Auto Remote (Control Panel) |
Auto Remote (Control Panel) |
Auto Remote (Hand/Foot) |
Auto Remote (Control Panel) |
| Dimensions | 33″ x 41.5″ | 32″ x 48.4″ | 36.6″ x 27.5″ | Ø 39.88″ x 35.5″ | Ø 52.31″ x 37.0″ | 39.9″ x 43.4″ x 31.5″ | Ø 52.31″ x 45.98″ |
| Weight | 1,040 lbs | 1,600 lbs | 365 lbs | 5,600 lbs | 9,450 lbs | 794 lbs | 13,358 lbs |
| Load Rating | 750 sTon | 750 sTon | — | 350 sTon | 500 sTon | — | 1,500 sTon |
| Rotary Compatibility | Master Bushing | Master Bushing | Master Bushing | Oilwell/Wirth/Gardner Denver, Emsco, Ideco, Varco/National | Oilwell/Wirth/Gardner Denver, Emsco, Ideco, Varco/National | Direct bowl / LSB (MBH1250) | National, Emsco, Oilwell, Wirth |
| Tubular Types | Drill Pipe | Drill Pipe | Drill Pipe | Drill Pipe, Casing, Drill Collar, Tubing | Drill Pipe, Casing, Drill Collar, Tubing | Drill Pipe | Drill Pipe |
| Throat Opening | 15″ | 16″ | Bowl dependent | 21″ | 30″ | Bowl dependent | 19″ |
| Height (Комплект / Released) | 11″ / 19″ | 17.5″ / 26″ | 11.3″ / 27.5″ | 7″ | 7″ | 17.0″ / 31.5″ | 14.75″ |
| Required Pressure | — | 90 psi (Air) | 600 psi | 2,300 – 2,500 psi | 2,300 – 2,500 psi | 2,000 psi | 2,300 – 2,500 psi |
| Flow Rate | — | — | 3 gpm | 10 gpm | 10 gpm | 5 gpm | 10 gpm |
| Crew Required | 2 – 3 | 1 | 1 | 1 | 1 | 1 | 1 |
| Interlocking Safety | No | Yes | No | Yes | Yes | No | Yes |
| Greasing | Hand | Hand | Hand | Automated | Automated | Hand | Hand |
| Плашка-Комплект Signal | No | Yes | No | Yes | Yes | No | Yes |
| Top Крышка | No | No | No | Yes | Yes | No | Yes |
| Temperature Range | -20°C to 45°C | -20°C to 45°C | -20°C to 45°C | -20°C to 45°C | -20°C to 45°C | -20°C to 55°C | -20°C to 55°C |
| API 7K | Yes | Yes | N/A | Yes | Yes | N/A | Yes |
| CE | Yes | Yes | No | Yes | Yes | Yes | Yes |
| ATEX | N/A | Yes | No | Yes | Yes | Yes | Yes |
