Описание

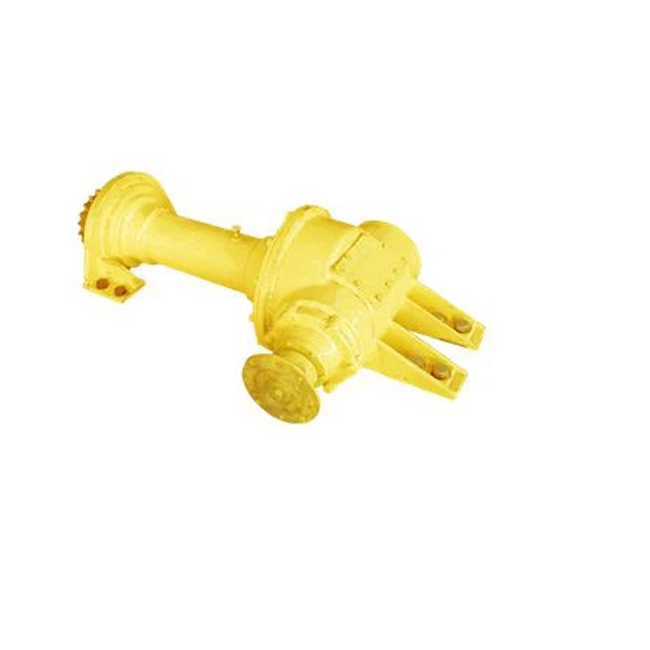

Правый Angle Шестерня Box

The power of the truck-mounted drilling rig and workover rig comes from the Двигатель and will be transferred to the axle, drawworks, rotary table through a variety of transmission boxes and transmission components.

Angle Gearbox

Overview

The power of the truck-mounted drilling rig and workover rig comes from the Двигатель and will be transferred to the axle, drawworks, rotary table through a variety of transmission boxes and transmission components. These transmission boxes mainly consist of compound gearbox, transfer case, angle gearbox, rotary table drive gearbox, upper & lower chain box, etc.

The angle gearbox is С приводом by a pair of vertical bevel gear pairs, and its input end is connected with the output end of the transfer case through the transmission shaft, and then the power is output to the drawworks through the sprocket mounted on the output shaft after changing direction through the bevel gear.

Особенность

The box body of the angle gearbox is welded by steel plate or made of integral casting, which is mainly composed of input shaft, output shaft, helical bevel gear, box body, bearing and other accessories.

Модель

The commonly used product models of the compound gearbox are as follows: Z03070000051AA，Z03070000055AA，Z03070000087AA，Z03070000090AA，Z03070000001AA，Z03070000002AA，Z03070000004AA，Z03070000005AA，Z03070000006AA，Z03070000007AA，Z03070000008AA，Z03070000010AA，Z03070000011AA，Z03070000012AA，Z03070000013AA，Z03070000014AA，Z03070000017AA，Z03070000018AA，Z03070000020AA，Z03070000022AA，Z03070000023AA，Z03070000024AA，Z03070000031AA，Z03070000035AA，Z03070000039AA，Z03070000040AA，Z03070000043AA，Z03070000047AA，Z03070000048AA，Z03070000049AA，Z03070000050AA，Z03070000051AA，Z03070000052AA，Z03070000053AA，Z03070000054AA，Z03070000056AA，Z03070000057AA，Z03070000059AA，Z03070000063AA，Z03070000064AA，Z03070000066AA，Z03070000067AA，Z03070000068AA，Z03070000069AA，Z03070000072AA，Z03070000073AA，etc.
