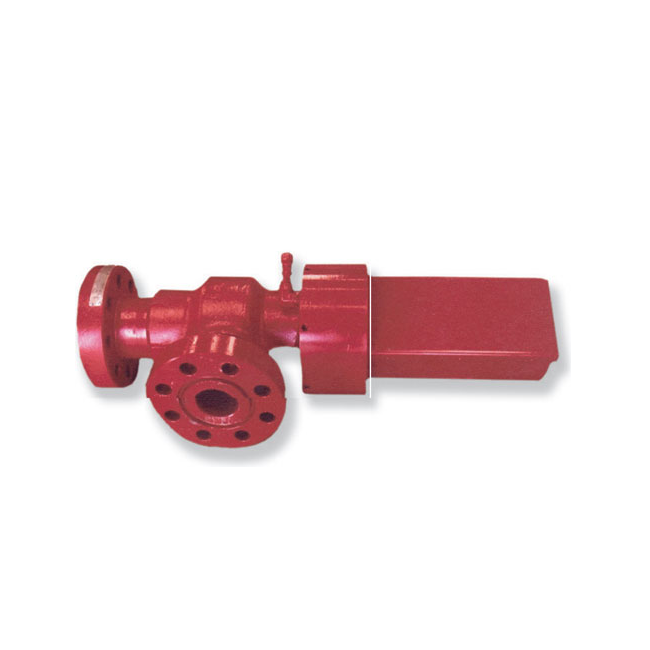

Гидравлический Drilling Choke

Дроссельный клапан is used to control the flow rate of fluids for a broad range of application, including

well testing, wellheads, stream injection, choke manifold and well clean operation, etc.,

our adjustable choke valve is improved from Cameron H2 series adjustable choke,

which is designed and manufactured in accordance with API 6A and API 16C standard,

easy operation and simple maintenance, reasonable price.


Manufactured and tested in accordance with API 6A.
Carbide alloy is embedded into stem needle of the valve, seat.
Flow adjustment is indicated on a measuring scale.
Composite rubber-plastic stem lip packing reduces operating torque.
Max orifice: 1”-3″.
Working Pressure: 2,000PSI – 20,000PSI
Material Class: AA – EE
Connection Type: Фланец, Быстросъёмное соединение, Thread

Item Description Item Description
1 Гидравлический Actuator 26 Spacer
2 Передний Retainer 27 Переходник
3 Gate 28 Tubing
4 Задний Retainer 29 Connector
5 Поршень 30 Гайка
6 Крышка 31 Retainer Cap
7 Actuator Rod 32 Lock Washer
8 Actuator Корпус 33 Screw
9 Кольцо уплотнительное 34 Back-up Кольцо
10 Кольцо уплотнительное 35 Кольцо уплотнительное
11 Кольцо уплотнительное 36 Нижний Стабилизатор Mount
12 Кольцо уплотнительное 37 Верхний Стабилизатор Mount
13 Pipe Bushing 38 Cap Screw
14 Retaining Кольцо 39 Screw
15 Locknut 40 Quick-Connect
16 Cap Screw 41 Nipple
17 Lock Washer 42 Nipple
18 Screw 43 Elbow
19 Elbow 44 Back-Up Кольцо
20 Quick-Connect 45 Корпус
21 Elbow 46 Седло
22 Корпус 47 Кольцо уплотнительное
23 Крышка 48 Wear Sleeve
24 Regulator 49 Back-up Кольцо
25 Spacer Mount
