Description

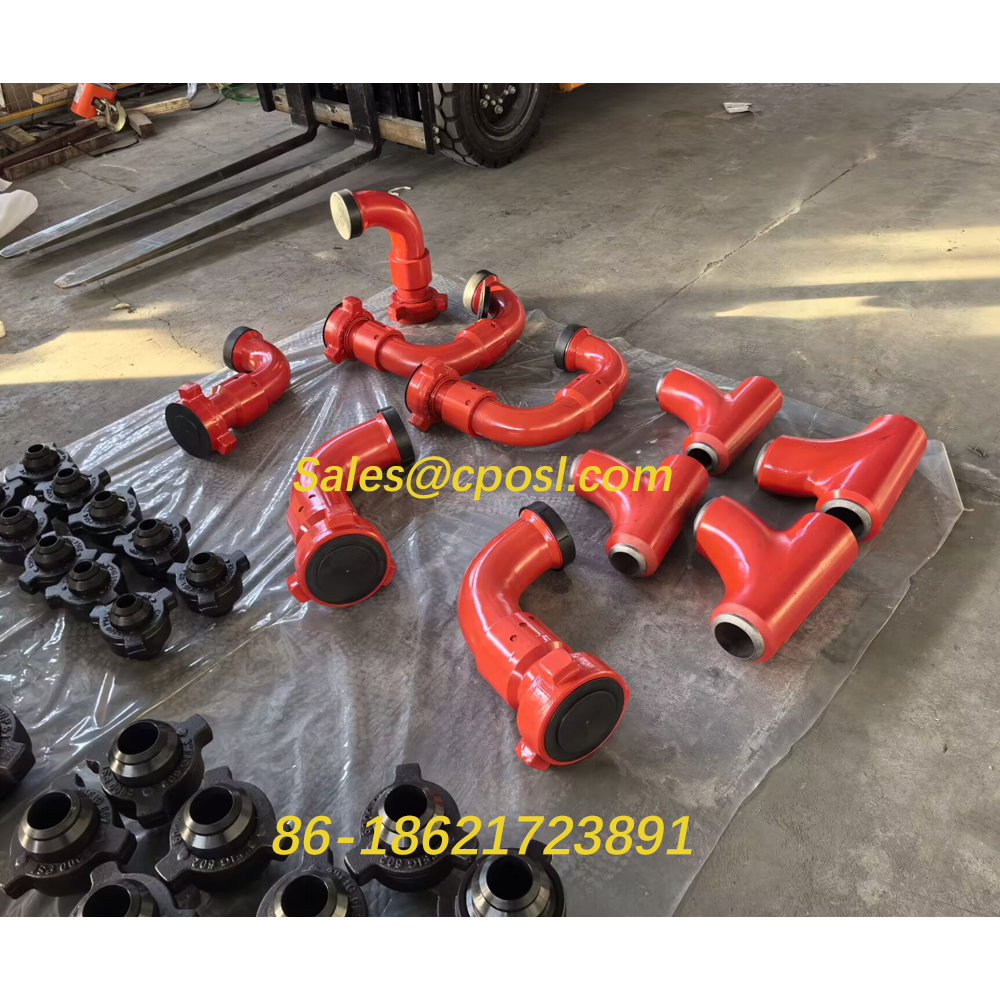

Высокого давления Манифольд Fittings
CAMTOP supplies series of high pressure integral fittings and welded fittings, including Elbows, Tees, Crosses, Laterals and Wyes with size ranging from 2″-4″ and pressure from 3000psi to 20000psi. The integral connections made of high strength alloy steel heat-treated with strong strength and longer service life. Weco wing union end or welded end, special connections are available upon request. All is designed and inspected in accordance with API Spec 6A.
Also provides OTECO style manifold fitting with standard LP thread or Schedule XX or 160 buttweld end connections in 2″, 3″, 4″, 5″ standard 5000psi working pressure or 7500psi high pressure. All fittings are hydrostatically tested prior to shipment and full certification can be supplied upon request. Include:
- 45º Длинный радиус Ells
- 90º Длинный радиус Ells
- 90º Длинный радиус Ells with 2 in. outlet
- 160º Standpipe Gooseneck
- 160º Standpipe Gooseneck with top outlet
- 180º Standpipe Gooseneck
- Длинный радиус Полнопроходной Крестовина
- Длинный радиус Полнопроходной Тройник
- Длинный радиус Тройник
- Длинный радиус Y
| Max Рабочее давление | 5000 PSI | 7500 PSI | 10,000 PSI | 15,000 PSI |
|---|---|---|---|---|
| Test Давление | 7,500 PSI | 11,250 PSI | 15,000 PSI | 22,500 PSI |
| Operating Temp. Range | -60° TO +345°C | -60° TO +345°C | -60° TO +345°C | -60° TO +345°C |
| Min. Yield | 52,000 PSI | >80,000 PSI | >80,000 PSI | >80,000 PSI |
| Min. Tensile | 66,000 PSI | 105,000 PSI | 105,000 PSI | 105,000 PSI |
| Материал | ASTM A487 Gr4 | ASTM A487 Gr4 | ASTM A234 Gr 4130 | ASTM A234 Gr 4130 |
