CAMTOP Long Sweep Манифольд Fittings 长扫掠管件
Кованый AISI 4130 | Sizes 2″–7″ | 5K–20K PSI | Standard & Sour Service
Product Overview
CAMTOP Long Sweep Манифольд Fittings are forged high-pressure fittings designed for cementing, mud circulation, and manifold systems where smooth flow and reduced pressure drop are critical. Manufactured from AISI 4130 alloy steel forgings, their extended sweep geometry—with a minimum 2D bend-radius design reference—helps reduce turbulence, pressure loss, and localized wear at directional changes in the flow path.
The range covers nominal sizes from 2 to 7 inches and pressure classes from 5,000 to 20,000 psi. Configurations include 90° and 45° long sweep elbows, full-flow tees, reducing tees, long sweep tees, tees with integral bull plug, crosses, bends, and goosenecks. Both standard and NACE MR-0175 sour-service options are available.
Material: Кованый AISI 4130 | Sizes: 2″–7″ | Pressure Ratings: 5,000–20,000 psi | Service: Standard & Sour (NACE MR-0175)
Product Image

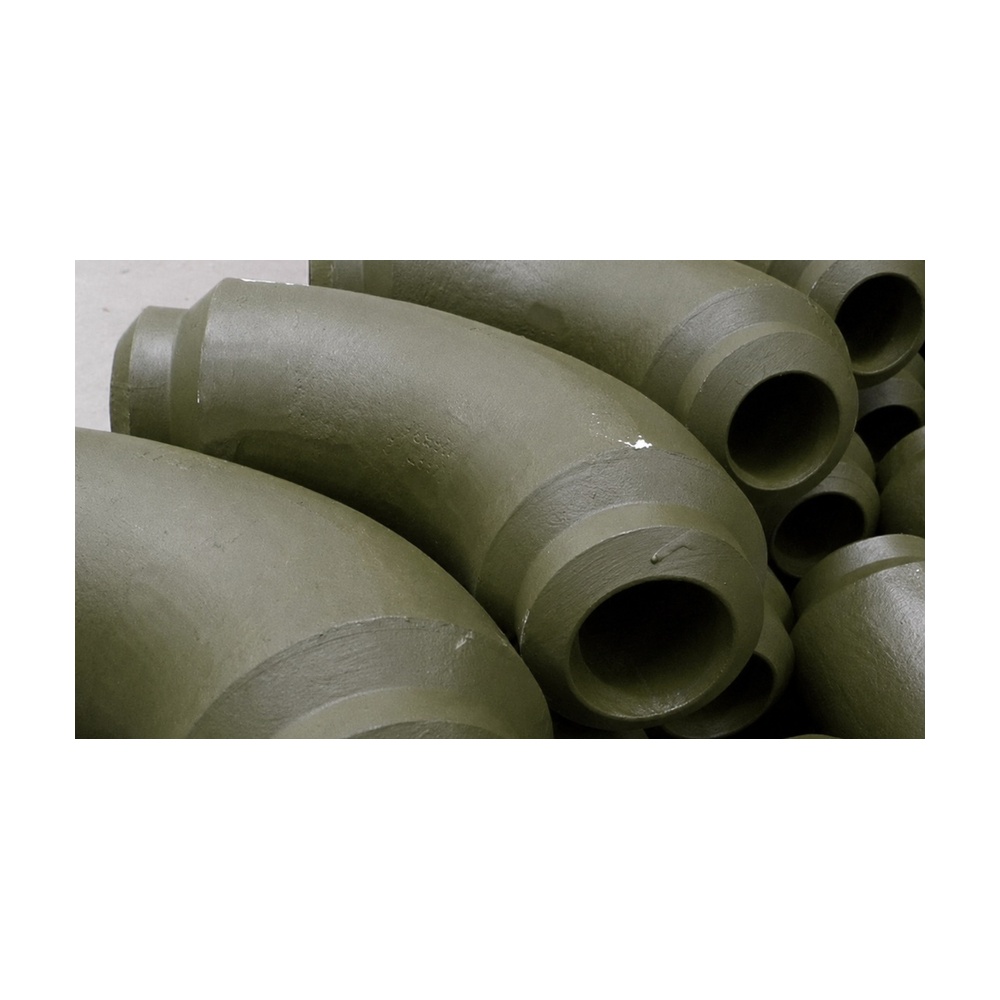

CAMTOP Long Sweep Манифольд Fittings — Кованый AISI 4130 construction with extended sweep geometry
Product Configurations
- 90° Long Sweep Elbows — for right-angle changes of direction with reduced pressure drop
- 45° Long Sweep Elbows — for gradual directional transitions
- Full-Flow Tees — for branch connections with minimal flow restriction
- Reducing Tees — for branch connections between different nominal sizes
- Long Sweep Tees — extended-radius tee geometry for smoother flow distribution
- Tees with Integral Bull Plug — convenient isolation and pressure-test configuration
- Long Sweep Crosses, Bends and Goosenecks — complex manifold routing solutions
Key Features
- Кованый AISI 4130 Alloy Стальной: High-strength forged construction for reliable pressure containment in high-pressure manifold applications
- Minimum 2D Bend Radius: Extended sweep geometry provides smoother flow path, reducing turbulence, pressure drop, and localized erosion
- Full-Flow Bore Design: Unobstructed internal bore matching the line pipe ID for maximum flow efficiency
- Wide Size Range: Nominal sizes from 2″ to 7″ covering standard manifold piping requirements
- Broad Pressure Coverage: Pressure ratings from 5,000 psi (5K) to 20,000 psi (20K) for various service conditions
- Sour Service Option: NACE MR-0175 compliant material available for H2S environments
- Multiple End Connections: Available with threaded (NPT/LTC/BTC), flanged (API 6A), or weld-end connections
- Traceable Material: Full material certification with heat numbers, chemical composition, and mechanical property reports
- Heat Trace Grooves: Steam trace grooves available for cold-weather or wax-bearing service
- Custom Configurations: Bends, goosenecks, and special angles manufactured to customer specifications
Technical Specifications
| Item | Specification |
|---|---|
| Product | CAMTOP Long Sweep Манифольд Fittings |
| Material | Кованый AISI 4130 (42CrMo) Alloy Стальной |
| Nominal Sizes | 2″, 2-1/2″, 3″, 4″, 5″, 6″, 7″ |
| Pressure Ratings | 5,000 / 10,000 / 15,000 / 20,000 psi |
| Bend Radius | Minimum 2D (2 × Nominal Pipe Size) |
| Configurations | 90° Elbow, 45° Elbow, Full-Flow Tee, Reducing Tee, Cross, Bend, Gooseneck |
| End Connections | Threaded (NPT/LTC/BTC), Flanged (API 6A 6B/6BX), Weld-End |
| Service Type | Standard & Sour Service (NACE MR-0175) |
| Heat Treatment | Normalized & Tempered (N+T) per material specification |
| Bore Type | Full-Flow (matching line pipe ID) |
| Trace Grooves | Steam trace grooves optional (for cold-weather / wax service) |
| Material Certification | EN 10204 3.1 MTC (Chemical + Mechanical + Heat Treatment) |
| Design Standard | ASME B31.3 / API 6A (as applicable) |
| Temperature Rating | -29°C to +121°C (-20°F to +250°F) [Standard] |
| Surface Finish | Machined bare or painted per customer specification |
90° Long Sweep Elbows — Dimensional Reference
| Nominal Size | WP (psi) | End Connection | Bend Radius (min) | Sweep Length (approx) | Approx Weight (lb) |
|---|---|---|---|---|---|
| 2″ | 5,000 | 2″ NPT | 4.0″ (2D) | 6.3″ | 12 |
| 2″ | 10,000 | 2″ NPT | 4.0″ (2D) | 7.5″ | 22 |
| 3″ | 5,000 | 3″ NPT | 6.0″ (2D) | 9.5″ | 28 |
| 3″ | 10,000 | 3″ NPT | 6.0″ (2D) | 11.0″ | 48 |
| 4″ | 5,000 | 4″ NPT | 8.0″ (2D) | 12.5″ | 52 |
| 4″ | 10,000 | 4″ NPT | 8.0″ (2D) | 14.0″ | 85 |
| 5″ | 5,000 | 5″ NPT | 10.0″ (2D) | 15.5″ | 85 |
| 5″ | 10,000 | 5″ NPT | 10.0″ (2D) | 17.5″ | 145 |
| 6″ | 5,000 | 6″ NPT | 12.0″ (2D) | 18.5″ | 130 |
| 6″ | 10,000 | 6″ NPT | 12.0″ (2D) | 21.0″ | 220 |
| 7″ | 15,000 | 7″ API Flg | 14.0″ (2D) | 26.0″ | 385 |
| 7″ | 20,000 | 7″ API Flg | 14.0″ (2D) | 28.0″ | 520 |
Note: Dimensions are for reference only. Actual dimensions may vary by configuration and end connection type. Contact CAMTOP for certified drawings.
Full-Flow Tees — Dimensional Reference
| Nominal Size | WP (psi) | End Connection | Корпус Length (approx) | Branch Height (approx) | Approx Weight (lb) |
|---|---|---|---|---|---|
| 2″ | 5,000 | 2″ NPT | 8.0″ | 5.0″ | 14 |
| 2″ | 10,000 | 2″ NPT | 9.5″ | 6.0″ | 25 |
| 3″ | 5,000 | 3″ NPT | 10.0″ | 6.5″ | 32 |
| 3″ | 10,000 | 3″ NPT | 12.0″ | 7.5″ | 55 |
| 4″ | 5,000 | 4″ NPT | 12.5″ | 8.0″ | 58 |
| 4″ | 10,000 | 4″ NPT | 14.5″ | 9.5″ | 95 |
| 5″ | 5,000 | 5″ NPT | 15.0″ | 10.0″ | 95 |
| 5″ |
