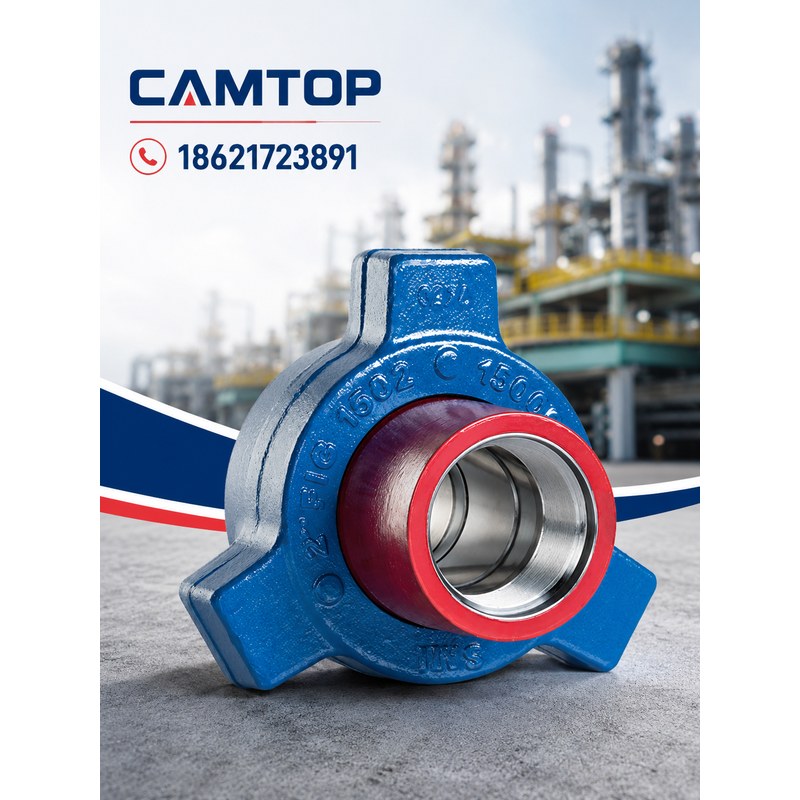

WECO TYPE Wing Соединение Figure 2202 Butt Weld 15,000 PSI

High-Pressure Быстросъёмное соединение for Oilfield Flowline, Fracturing, Cementing & Pressure Control Applications

alt=”WECO TYPE Wing Соединение Figure 2202 Butt Weld 15000 PSI high pressure hammer union for oilfield flowline and pressure control applications”>

Product Overview

The WECO TYPE Wing Соединение Figure 2202 Butt Weld is a high-pressure hammer union designed for demanding oilfield flowline, drilling, cementing, fracturing, well testing, and pressure control applications.

Rated for 15,000 PSI working pressure and 22,500 PSI test pressure, this rugged wing union provides reliable sealing performance, fast make-up and break-out, and dependable service in harsh oilfield environments.

Key Features

WECO TYPE Figure 2202 wing union design
15,000 PSI working pressure
22,500 PSI test pressure
Butt weld connection
Metal-to-metal sealing design
Fast make-up and break-out
Rugged ACME thread construction
Suitable for severe oilfield pressure control service

Technical Specifications

Item	Specification
Product Name	WECO TYPE Wing Соединение Figure 2202
Connection Type	Butt Weld
Working Pressure	15,000 PSI
Test Pressure	22,500 PSI
Соединение Type	Быстросъёмное соединение / Wing Соединение
Уплотнение Type	Metal-to-Metal Sealing
Available Sizes	2 in. (50 mm), 3 in. (80 mm)
Service	High-Pressure Oilfield Flowline Service

Dimensional Data

Dimension	2 in. (50 mm)	3 in. (80 mm)
A – Clearance Radius	3.75 in. (95.3 mm)	6.25 in. (158.8 mm)
B – Outside Diameter	2.88 in. (73.2 mm)	4.81 in. (122.2 mm)
C – End-to-End Length	8.81 in. (223.8 mm)	10.50 in. (266.7 mm)
D – Inside Diameter	1.30 in. (33 mm)	3.00 in. (62 mm)

Weight Information

Size	Weight
2 in. (50 mm)	26 lb (11.8 kg)
3 in. (80 mm)	97 lb (44 kg)

Main Components

Hammer Гайка
Male Переводник
Female Переводник
Уплотнение Кольцо
Retainer Segments
Retainer Кольцо

Applications

Oil & gas drilling operations
Fracturing flowline systems
Cementing units
Choke & kill manifolds
Well testing systems
Pressure pumping equipment
High-pressure fluid transfer systems
Offshore and onshore oilfield service

OEM-Compatible Replacement Parts

CAMTOP supplies OEM-compatible WECO TYPE wing unions and replacement parts for oilfield flowline and pressure control equipment.

Hammer nuts
Male subs
Female subs
Уплотнение rings
Retainer segments
Repair kits

Why Choose CAMTOP?

CAMTOP provides reliable oilfield pressure control equipment, flowline products, and OEM-compatible replacement parts for global drilling and well service operations.
