CAMTOP 6″ Ключ Line Pull Indicator — Real-Time Line-Pull Monitoring

The CAMTOP Ключ Line Pull Indicator is a precision hydraulic dial gauge system designed to display the actual line-pull force exerted on the tong assembly during make-up and break-out operations. Featuring a large 6-inch (152 mm) easy-read gauge coupled with a 4.08 SQ. IN. hydraulic tension cylinder, this unit provides rig floor personnel with the visual feedback needed to apply the correct torque / line-pull values — preventing both over-pull (which damages tool joints) and under-pull (which leads to improper make-ups).

Engineered for harsh drilling environments, the CAMTOP indicator is rated for continuous duty on rig floors and is fully compatible with all major hydraulic power tong systems (casing tongs, tubing tongs, drill-pipe tongs). The fluid-filled dampener mechanism absorbs pressure spikes, while the precision-bored cylinder ensures repeatable accuracy across the full 0 – 18,000 lbs scale.

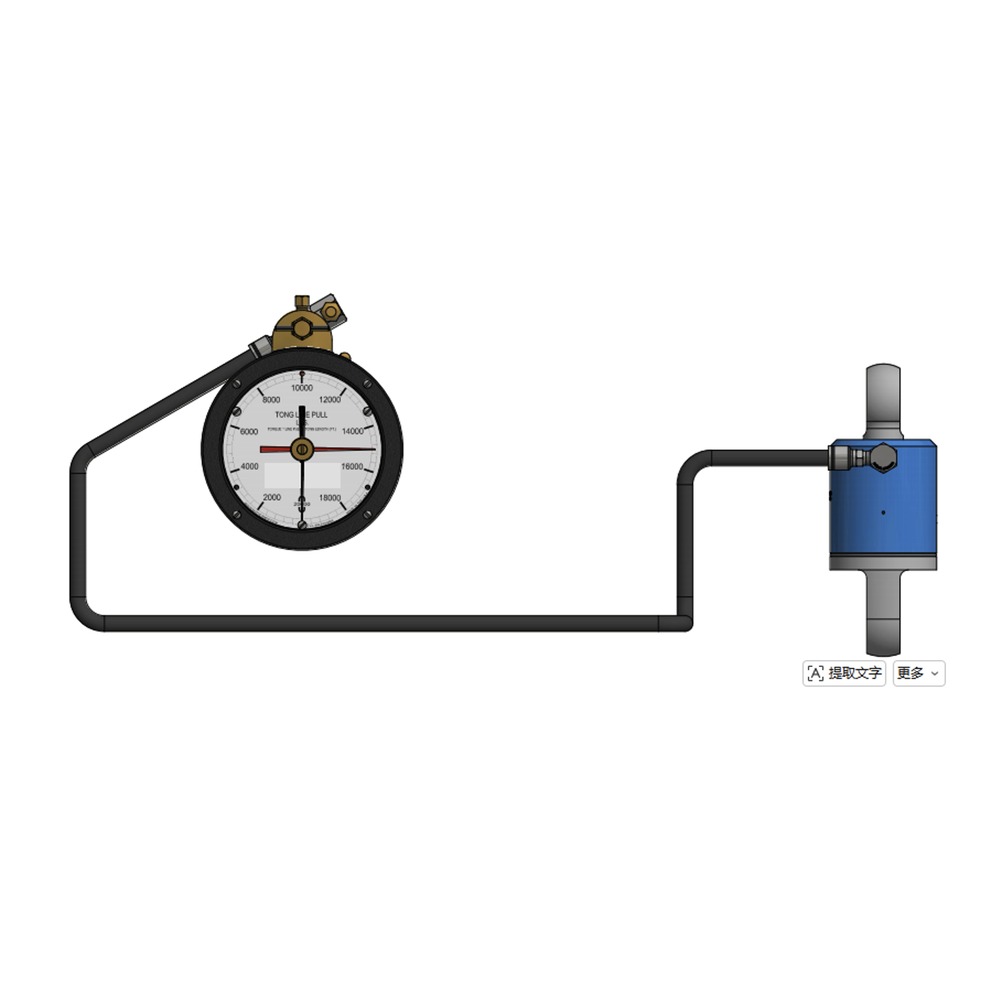

Product Image

Key Features

• 6″ Large Dial Gauge — High-visibility white face with bold 0–18,000 lbs scale, designed for fast readout from 5+ meters away on the rig floor
• 4.08 SQ. IN. Tension Цилиндр — Compact hydraulic actuator generates measurable fluid pressure proportional to tong line-pull force
• Direct Гидравлический Coupling — 1/4″ hose connection (HSS-025, 5,800 PSI) transmits cylinder pressure instantly to the gauge with minimal lag
• 6-Болт Mounting Bracket (BR600) — Heavy-duty steel bracket allows rigid mounting on tong frames, catwalks, or dedicated indicator stands
• Stainless Стальной Рукав (HSS-025) — 1/4″ × 25″ hydraulic hose rated 5,800 PSI; withstands abrasion and chemical exposure
• Hand Насос Bleed Port (HJA2) — Allows fast air-bleeding and zero-calibration of the system during rig-up
• Quartz Face with Anti-Glare Coating — Maintains readability in direct sunlight or harsh rig-floor lighting
• Shock-Resistant Internals — Glycerin-filled dial mechanism dampens vibration spikes during slug-pulling or jarring
• Universal Compatibility — Works with all CAMTOP and most competitor hydraulic power tongs (casing, tubing, drill-pipe)
• Compact Field-Serviceable Design — Only 10 line-item parts; gauges, hoses, and cylinder can be replaced in 15 minutes with basic hand tools

Technical Specifications

Parts List (Bill of Materials)

Complete assembly breakdown for the CAMTOP Ключ Line Pull Indicator. All part numbers below are stock items available from CAMTOP for fast field replacement.

Engineering Drawing

Full assembly drawing (scale 0.5:1, drawing no. SY66-408) showing dimensional layout of all 10 line items, mounting geometry, and hydraulic connections.

Working Principle

The CAMTOP Ключ Line Pull Indicator operates on a hydraulic load-cell principle. The tension cylinder (CY100, 4.08 SQ. IN. piston area) is installed in-line with the tong’s pull cable / wire-line. As the tong applies pulling force, the cylinder generates internal hydraulic pressure proportional to the load (P = F / A, where A = 4.08 in²). This pressure is transmitted via the stainless steel hose (HSS-025) to the 6″ dial gauge (G65H), which is factory-calibrated to convert pressure directly into line-pull force readings on the 0–18,000 lbs scale.

The hand pump (HJA2) is used during rig-up to bleed air from the system and to set the gauge to zero. The fluid indicator fluid (F200, 1 quart) is a low-viscosity, anti-foam hydraulic oil formulated for stable pressure readings across the full operating temperature range.

Applications

• Гидравлический power tongs — make-up / break-out line-pull monitoring
• Casing running operations — verifying proper joint make-up torque
• Drill-pipe tripping — controlling back-off and break-out loads
• Tubing tongs — ensuring consistent torque application across all connections
• Coiled tubing unit (CTU) injector tension monitoring
• Snubbing / hydraulic workover unit operations
• Устьевое оборудование equipment installation — controlled tensioning of bolts and hangers
• Drilling simulator training systems — visual demonstration of line-pull dynamics

Why Choose CAMTOP

• Direct Replacement — Fully interchangeable with GYRO Oilfield SY66-408 and equivalent industry-standard indicators
• 10-Item Modular BOM — Every component is field-replaceable; no proprietary tools required for service
• Rig-Floor Proven — Shock-resistant glycerin-filled gauge survives jarring and vibration spikes
• Stock Part Numbers — All 10 part numbers (G65H, CY100, HSS-025, BR600, etc.) available ex-stock for fast delivery
• Calibration Documentation — Each gauge ships with NIST-traceable calibration certificate
• 24/7 Technical Support — Direct engineering line for rig-up, troubleshooting, and custom configurations

Ordering Information
