Description

CAMTOP Тип D Mud Манометр is a heavy-duty analog pressure-indicating instrument designed for standpipe, mud pump, and choke manifold service on drilling rigs. Directly interchangeable with OTECO Модель 7 and Cameron D-style gauges, the Тип D provides quick, accurate pressure readout in harsh drilling environments — including H2S (sour) service, salt water, oil-based mud, and high-pressure mud circulation lines.

Featuring a 7-5/8″ diameter cast-alloy-steel case, a 2″ NPT female threaded process connection, and a precision bourdon-tube measuring element, the CAMTOP D-gauge is engineered to deliver long service life under continuous drilling vibration and shock. Multiple pressure ranges from 0-1000 PSI through 0-10,000 PSI are available to suit standard service, deep well, and HPHT applications.

Product Image

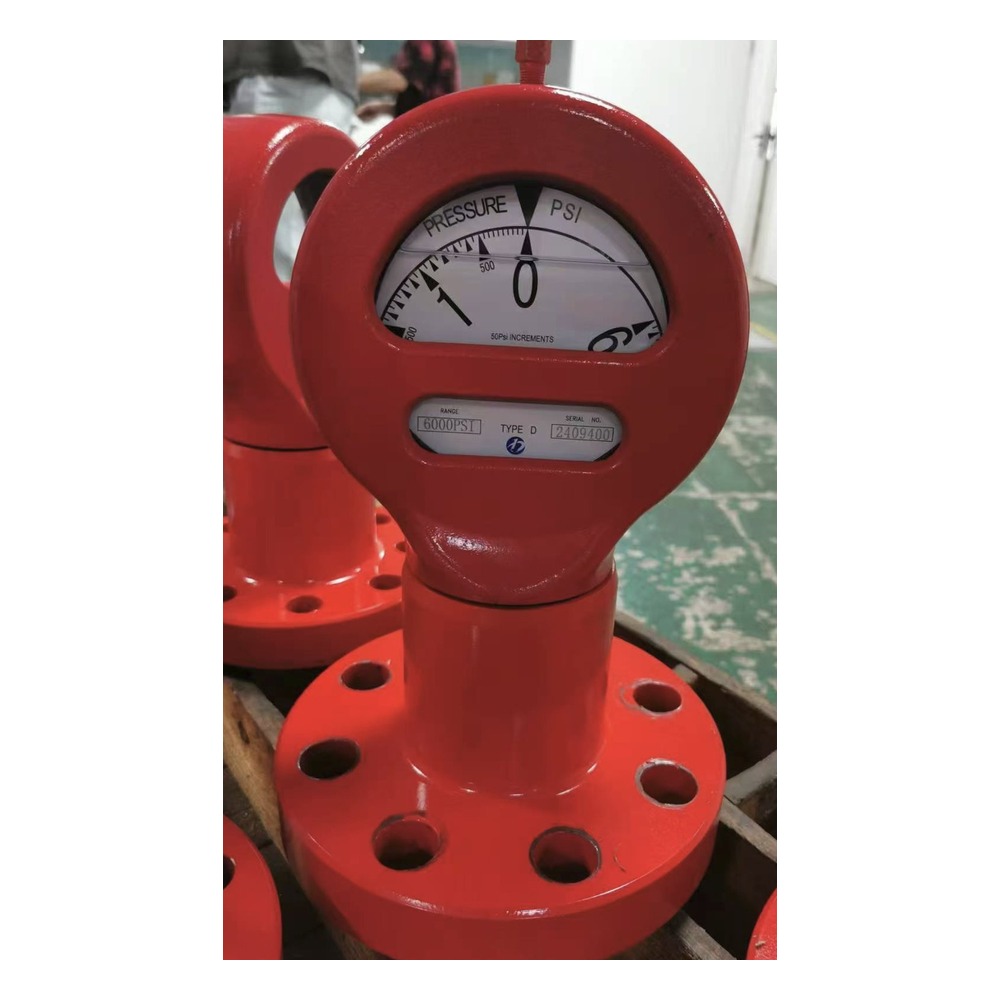

CAMTOP Тип D Mud Манометр — Alloy Стальной, 0-6000 PSI, 2

Шпонка Features

  • OTECO Модель 7 Взаимозаменяемый — Direct replacement for OTECO / Cameron D-style mud pressure gauges.
  • 7-5/8″ Dial Face — Large analog readout visible from the drill floor and rig supervisor’s station.
  • Alloy Стальной Case — Литой steel body with red epoxy coating provides corrosion resistance in mud, salt water, and harsh offshore environments.
  • 2″ NPT Внутренняя резьба Соединение — Стандарт process connection fits standpipe, mud pump discharge, and choke manifold sense lines.
  • Wide Давление Range Selection — 0-1000 / 0-3000 / 0-5000 / 0-6000 / 0-10,000 PSI options; 0-42,000 PSI HPHT range available on request.
  • Sour Обслуживание (H2S) Trim — NACE MR0175 compliant wetted parts available for sour-gas and H2S-bearing formations.
  • Salt Вода Обслуживание Trim — Salt-water-rated bourdon and socket for offshore / marine drilling.
  • Shatter-Resistant Lens — Tempered glass or polycarbonate dial window withstands rig-floor impact.
  • API 7K / 6A / 8C Качество Система — Manufactured under API and ISO 9001 quality program.
  • 50 PSI Increment Scale — Easy-to-read scale for accurate pressure monitoring during tripping and circulation.

Technical Specifications

Item Parameter
Product Name Тип D Mud Манометр
Brand CAMTOP
Модель Серия BTD6 (Тип D)
Interchange With OTECO Модель 7 / Cameron D-Style
Dial Case Диаметр 7-5/8″ (194 mm)
Overall Высота 14-3/4″ (375 mm)
Case Материал Литой Alloy Стальной (red epoxy coated)
Bourdon Tube Alloy steel / SS 316 (sour-service trim optional)
Lens Tempered Glass (shatter-resistant)
Process Соединение 2″ NPT Внутренняя резьба (standard); 2″ Фиг 1502 Наружная резьба, 1.81-10K RJ BX-151, 2.06-5K/10K RJ available
Давление Ranges 0-1000 / 0-3000 / 0-5000 / 0-6000 / 0-10,000 / 0-15,000 / 0-42,000 PSI
Scale Increments 50 PSI (standard)
Обслуживание Trim Options Стандарт / Salt Вода / Sour H2S (NACE MR0175)
Working Fluid Бурение mud, water, salt water, oil, air, gas
Operating Температура -40 °C to +120 °C
Accuracy Class ±1.5% of full scale (industrial grade)
Certifications API 7K, API 6A, API 8C, ISO 9001
Application Standpipe / mud pump discharge / choke manifold pressure indication

Available Models & Part Numbers (Тип D Серия)

All part numbers below are CAMTOP type-BTD6 equivalents. Select by pressure range, end connection, and service trim. (Reference part numbers shown; equivalent CAMTOP items available on request.)

Part No. Модель End Соединение Обслуживание Trim Давление Range (PSI)
361111 BTD6 2″ NPT Стандарт 0 – 1000
361121 BTD6 2″ NPT Salt Вода 0 – 1000
361211 BTD6 2″ NPT Стандарт 0 – 3000
361231 BTD6 2″ NPT Sour H2S 0 – 3000
361221 BTD6 2″ NPT Salt Вода 0 – 3000
361411 BTD6 2″ NPT Стандарт 0 – 6000
361431 BTD6 2″ NPT Sour H2S 0 – 6000
361421 BTD6 2″ NPT Salt Вода 0 – 6000
361511 BTD6 2″ NPT Стандарт 0 – 10,000
361541 BTD6 1.81-10K RJ BX-151 Стандарт 0 – 10,000
360056 BTD6 2.06-5K RJ R-24 Стандарт 0 – 6000
360057 BTD6 2.06-5K RJ R-24 Sour H2S 0 – 6000
360000 BTD6 2.06-10K RJ BX-152 Стандарт 0 – 10,000
360002 BTD6 2.06-10K RJ BX-152 Sour H2S 0 – 10,000
366431 BTD6 2″ Фиг 1502 Наружная резьба Стандарт 0 – 6000
364701 BTD6 2″ Фиг 1502 Наружная резьба Sour H2S 0 – 6000
364581 BTD6 2″ Фиг 1502 Наружная резьба Стандарт 0 – 10,000
362411 BTD6 2″ NPT Стандарт 0 – 42,000

Note: Part numbers above reference industry-standard cross-reference; CAMTOP equivalents follow the same nomenclature. Индивидуальный pressure ranges and connections available on request.

How It Works

The CAMTOP Тип D Mud Манометр operates on the bourdon-tube principle: process pressure enters the curved metal tube through the 2″ NPT connection, causing the tube to deform proportionally. This deformation is transferred through a mechanical linkage to a precision gear movement, which rotates the pointer against a calibrated dial scale.

Установленный on the standpipe, mud pump discharge, or choke manifold sense line, the gauge provides the rig crew with continuous, real-time pressure indication. The pointer position is read directly from the dial face — no external power, calibration, or instrumentation loop required, making the Тип D ideal for remote rig locations and explosive-environment zones.

The tempered lens and cast-alloy case protect the internal movement from mud splash, salt-air corrosion, and rig-floor impact, while the isolated bourdon and socket prevent process media from contaminating the gauge internals.
