Description

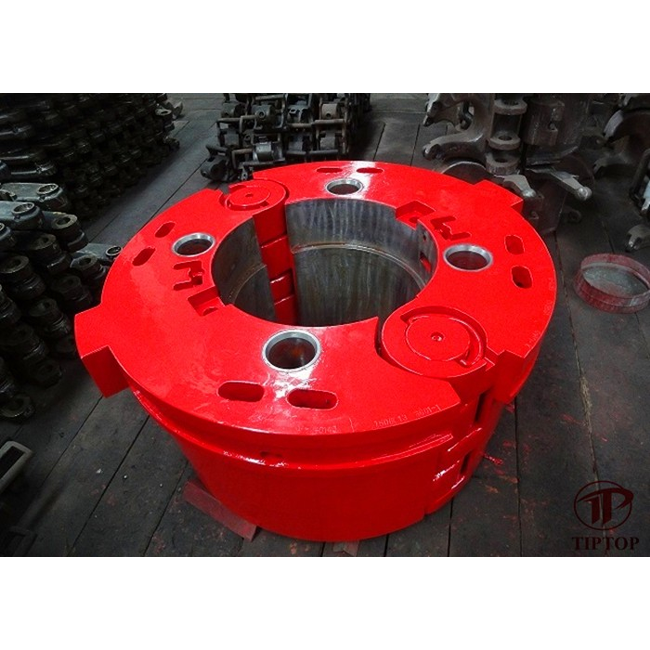

API 7K 17 1/2 ” to 49 1/2″ Роторный стол Мастер-втулка

We are providing master bushings and insert bowls sizing from 17 1/2’’ to 49 1/2’’. They are cast with high-quality alloy steel and sizes conform to API 7K specification for drilling and well servicing equipment. There are two types, pin drive and square drive. API standard rotary slips, drill collars slips, casing slips and roller Келли bushings can be contained in them.

Master bushings can be divided into three kinds of structure, hinged, solid and split. It is adapted to rotary table by size from 17 1/2’’ to 49 1/2’’ respectively. When insert bowls are assembled, it can be connected with rotary slips, drill collar slips, casing slips, and roller Келли bushing that are manufactured in accordance with API 7K.

There are two locks device in master bushings. Retract the two locks before lowering the insert bowl valves. This is done by lifting and turning the two pins 180 degrees, then dropping them back into the recesses, after inserting lock bowls in place.

API standard, square drive master bushings and insert bowls can use short or medium slips in order to apply load of Hooks Нагрузка 1112 kN effectively. When load of Hooks Нагрузка exceed 1112 kN, extend Вставка Bowls and medium or extra slips should be used.
