Description

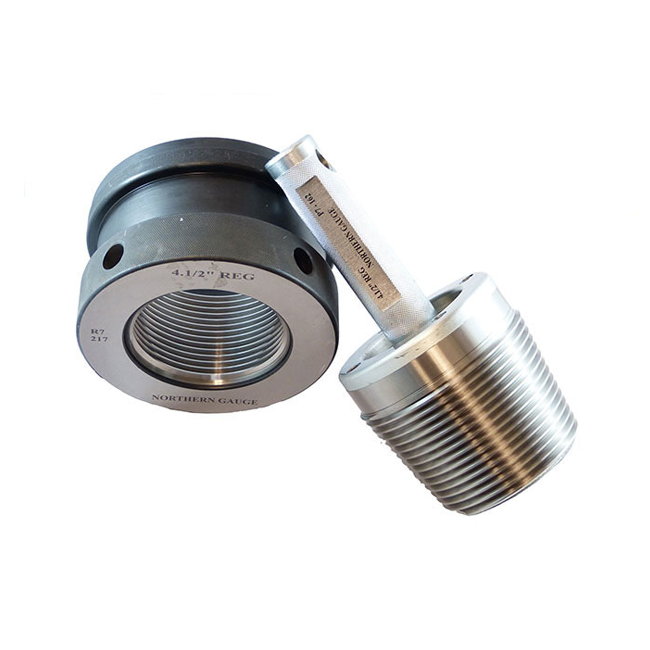

API Резьба Gauges
API Резьба Gauges are used for gaging API internal & external threads, manufactured according to API 5B, API 7-2 & API 11B standard, including working gages and master gages.
API working thread gauges include plug gauge and ring gauge. All of our working gauges will be inspected by master gauges after production and corresponding Calibration Сертификат will be provided together with thread gauges or separately couriered as clients’ request.
Our thread gauges are mostly used to inspect thread of tubing, casing, drill pipe, drill collar, line pipe, sucker rod & polished rod, etc.
The thread type includes: EUE/UPTBG, NUE/TBG, BTC/BCSG, STC/CSG, LTC/LCSG, REG, IF, FH, NC, LP, NPT, etc.
- All thread inspection after production.
- All thread gauges will be supplied with Calibration Сертификат.
- 100 % customer satisfaction for Качество and Reliability.
- Suitable for many kinds of thread and pipes.
- Good package suitable for international transportation.
- Fast lead time and sometimes some commonly used thread may be in stock.
Размер Range: 2-3/8 ~ 20 in
Резьба: BTC, STC, LTC, EUE, NUE, NC, IF, FH, REG, PH-6, XT, HT-PAC, etc.
Тип: Тяжёлого типа or light
Материал: HDPE, steel, steel-plastic
Color: Индивидуальный
Application: To protect the thread and connection of casing, tubing, drill pipe during transportation and loading and unloading
| API Spec 5B (Пробка Манометр & Кольцо Манометр) | ||||
|---|---|---|---|---|
| Normal Размер | Резьба | |||
| Applications | From | To | TPI | TPF |
| Обсадная колонна – Круглый | 4 1/2 | 13 3/8 | 8 | 3/4 |
| Line Pipe | 1/8 | 13 3/8 | 8-27 | 3/4 |
| НКТ – Non Upset | 1.050 | 3 1/2 | 10 | 3/4 |
| 4 | 4 1/2 | 8 | 3/4 | |
| НКТ – External Upset | 1.050 | 1.900 | 10 | 3/4 |
| 2 3/8 | 4 1/2 | 8 | 3/4 | |
| НКТ – Цельный Соединение | 2 3/8 | 4 1/2 | 10 | 3/4 |
| Extreme Line Обсадная колонна | 5 | 7 5/8 | 6 | 1 1/2 |
| 8 5/8 | 10 3/4 | 8 | 1 1/4 | |
