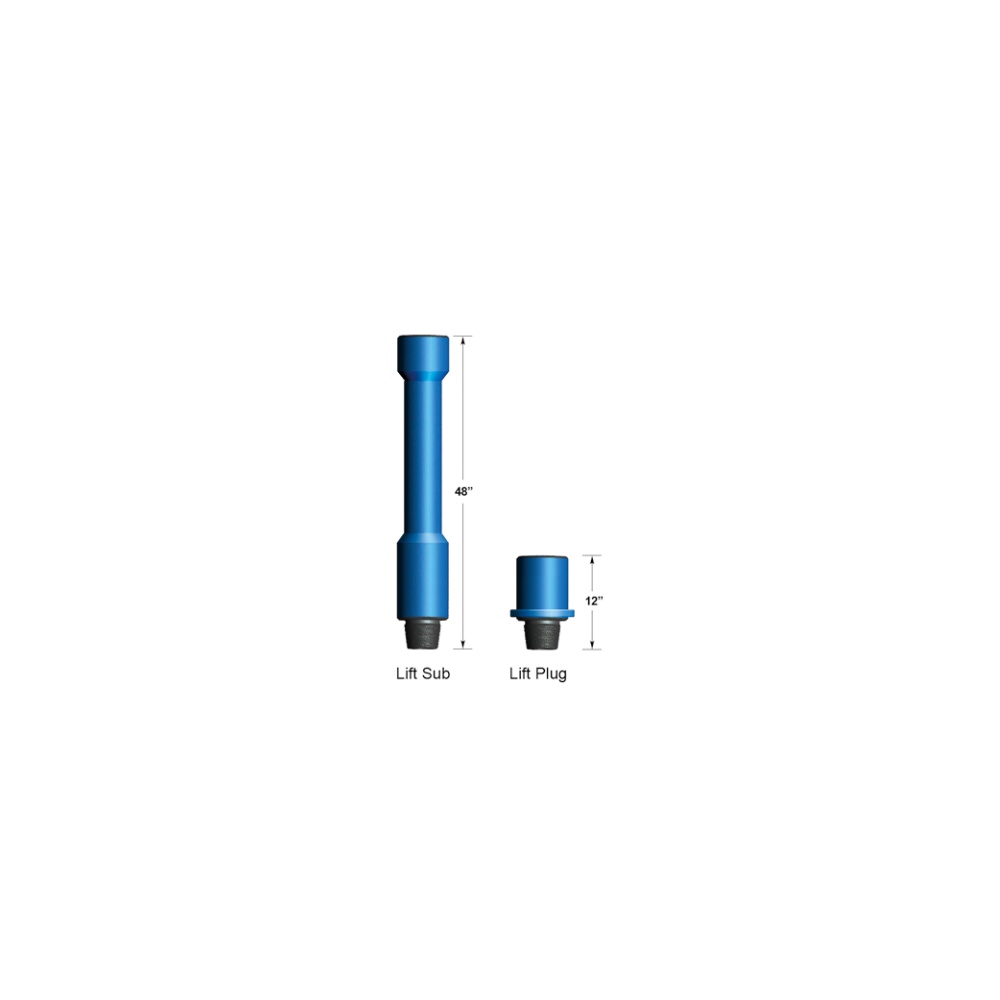

CAMTOP Lift Переводник and Lift Plug

Description

API Spec
4145 H Modified Стальной

2 Types
Lift Переводник & Lift Plug

Custom
Connections & Sizes

Product Overview

CAMTOP Lift Переводник and Lift Plug are manufactured from 4145 H modified quenched and tempered steel to API specifications. These tools are designed for safe, efficient handling of straight OD tubulars in drilling operations.

Lift Переводник enables the safe, efficient handling of straight OD tubulars such as drill collars, shock tools, jars, directional equipment and other tools by using the drill pipe elevators. Typical overall length is 48″.

Lift Plug is a small, easy-to-handle sub that makes up on top of the drill collar. It has a lifting flange that serves as a safety stop when drill collars without elevator recesses are being tripped out of the hole. The center section is bored out to reduce weight for easy handling. Typical overall length is 12″.

Technical Specifications

Parameter	Lift Переводник	Lift Plug
Material	4145 H modified quenched & tempered steel	4145 H modified quenched & tempered steel
Standard	API specifications, API monogram	API specifications, API monogram
Typical Length	48″	12″
Function	Handling straight OD tubulars with elevators	Safety stop & lifting for drill collars
Connections	Custom API connections available	Custom API connections available
Design	Straight OD handling profile	Lightweight bored center section

Key Features

API Certified Material Manufactured from 4145 H modified quenched and tempered steel to API specifications.	API Monogram Carries the API monogram for quality assurance and global acceptance.
Safe Tubular Handling Lift Переводник enables safe elevator handling of straight OD drill collars and tools.	Safety Stop Function Lift Plug flange acts as a safety stop when tripping drill collars without recesses.
Lightweight Design Lift Plug center is bored out to reduce weight for easy handling on the rig.	Custom Connections Non-standard connections, sizes and lengths available upon request.

When Ordering Please Specify

✔ Product type (Lift Переводник or Lift Plug)

✔ Top and bottom connection sizes

✔ Overall length / OD requirements

Applications

▶ Drill collar lifting and handling	▶ Straight OD tubular elevator operations	▶ Safety stop for drill collar tripping
▶ Shock tool and jar handling	▶ Directional equipment handling	▶ Oil & gas drilling operations
