CAMTOP Drill Pipe Float Клапан (DPFV) — Plunger & Flapper Series
Drill Pipe Float Valves (DPFV) are one-way check valves installed inside the drill string to prevent drilling fluid, cuttings, and formation back-flow from entering the drill pipe while making connections. CAMTOP DPFVs are manufactured as direct equivalents to Baker SPD Models F, FA, G, GA, GC, and GCA — covering both plunger type (F, FA) and flapper type full-flow (G, GA, GC, GCA) configurations. Each valve is forged from heat-treated alloy steel, precision-machined to API 7K / 6A / 8C and ISO tolerances, and individually pressure-tested before shipment.
Available in ten drill pipe sizes from 1R (1") through 6F (5-11/16") with matched metal and rubber repair kits, CAMTOP DPFVs are the reliable, cost-effective alternative to OEM drill pipe float valves for conventional and horizontal drilling operations worldwide.
Product Image

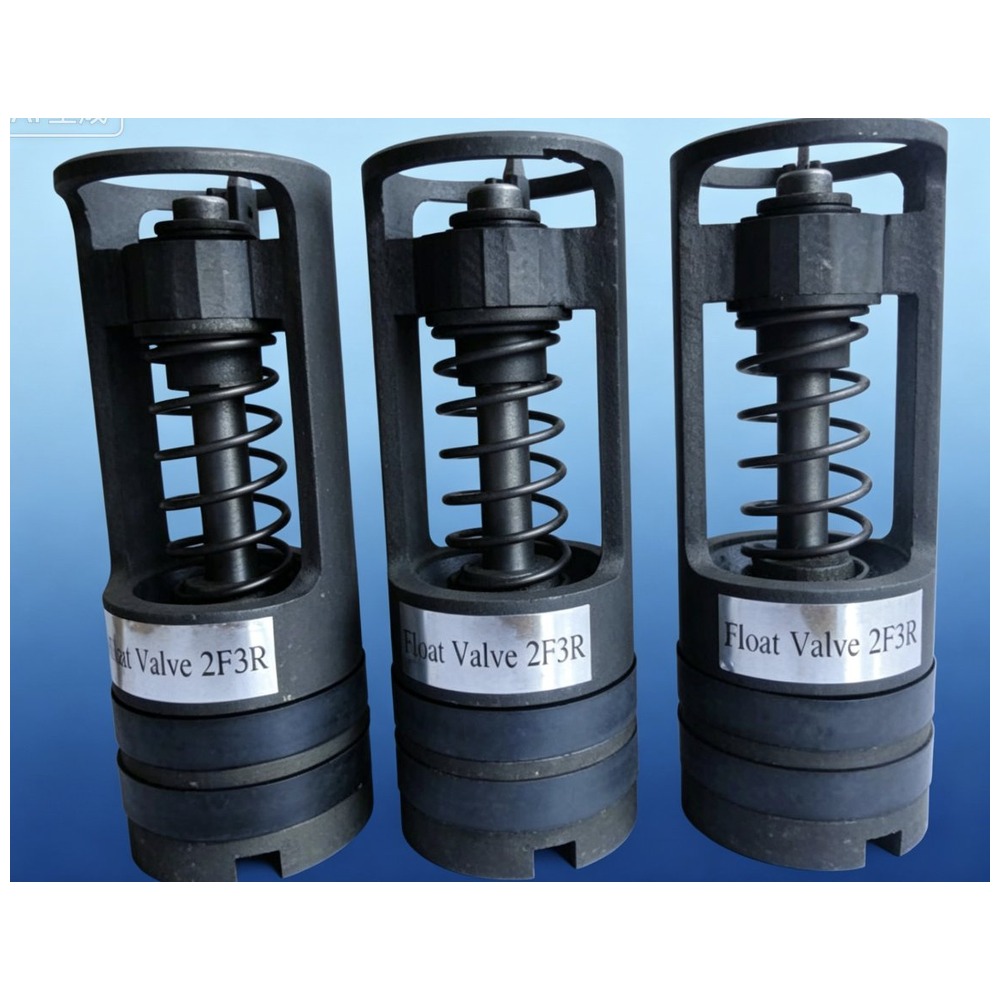

The CAMTOP Model F plunger type drill pipe float valve is engineered for instant shut-off when making connections. The spring-loaded plunger design prevents flow-back into the drill string, keeping drill cuttings out of the bore and protecting downhole tools. Standard H48013 family (economy grade) and H48043 family (heavy-duty alloy grade) are both available.
Key Features
- Six Model Series: F, FA, G, GA, GC, GCA covering both plunger and flapper designs
- Baker SPD Compatible: Direct dimensional and functional equivalent — drop-in replacement
- Heat-Treated Alloy Стальной: Кованый body with high tensile strength for deep well applications
- Instant Shut-Off: Positive spring-loaded closure prevents back-flow during connections
- Full-Bore Flapper Option: G/GA/GC/GCA models provide unrestricted bore for high-volume circulation
- Carbide Orifice: GA/GCA models allow differential pressure readings at surface
- Automatic Fill Feature: GC/GCA models prevent pressure surges during run-in
- Complete Repair Kits: Both metal and rubber kits available for every size and model
- API Certified: Manufactured to API 7K, 6A, 8C and ISO quality standards
- 10 Drill Pipe Sizes: 1R through 6F (1" to 5-11/16") covering all common drill string sizes
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Family | Drill Pipe Float Клапан (DPFV) |
| Model Series | F / FA (Plunger) · G / GA / GC / GCA (Flapper) |
| OEM Equivalent | Baker SPD Models F, FA, G, GA, GC, GCA |
| Корпус Material | Heat-treated alloy steel (forged) |
| Plunger / Flapper | Hardened alloy steel, precision ground |
| Пружина | High-grade alloy spring steel |
| Уплотнение / Кольцо уплотнительное | NBR / HNBR (H2S service optional) |
| Available Sizes | 1R, 1F-2R, 2F-3R, 3F, 3-1/2 IF, 4R, 4F, 5R, 5F-6R, 6F |
| Working Pressure | Up to 10,000 PSI (standard) |
| Operating Temperature | -40°F to +400°F (-40°C to +204°C) |
| Standards | API 7K, 6A, 8C, ISO 9001 |
| Repair Kits | Metal Repair Комплект · Резиновый Repair Комплект (matched to each size) |
Model Series Comparison
| Model | Type | Product Family | Key Feature |
|---|---|---|---|
| F | Plunger | H48013 / H48043 | Standard & Heavy-Duty; instant shut-off; economy & durability |
| FA | Plunger | H48012 | All F features + center port for automatic partial fill & bit-head gas monitoring |
| G | Flapper | H48015 | Full-open unrestricted bore; ideal for abrasive fluids; instant flapper closure |
| GA | Flapper | H48015 (variant) | Identical to G with carbide orifice in flapper for surface dP readings |
| GC | Flapper | H48015 (variant) | All G features + automatic fill on run-in; prevents formation breakdown |
| GCA | Flapper | H48015 (variant) | GA + GC combined: carbide orifice + automatic fill |
Size & Dimension Table
| Size | D (in) |
R (D+1/32) (in) |
L (in) |
T (in) |
Model F ID (in) |
Model F Recess Dia (in) |
Model G Dia (in) |
Baffle Recess (in) |
|---|---|---|---|---|---|---|---|---|
| 1R | 1 | 1 21/32 | 1 11/16 | 5 7/8 | 1 5/16 | 1 | N/A | N/A |
| 1F-2R | 1 | 1 29/32 | 1 15/16 | 6 1/4 | 1 1/2 | 1 1/4 | 1 | N/A |
| 2F-3R | 2 | 2 13/32 | 2 7/16 | 6 1/2 | 1 29/32 | 1 9/16 | 1 1/4 | N/A |
| 3F | 2 | 2 13/16 | 2 27/32 | 10 | 2 7/16 | 1 7/8 | 1 5/8 | N/A |
| 3-1/2 IF | 3 | 3 1/8 | 3 5/32 | 10 | 2 11/16 | 1 7/8 | 1 5/8 | N/A |
| 4R | 3 | 3 15/32 | 3 1/2 | 8 5/16 | 2 15/16 | 2 5/16 | 1 31/32 | N/A |
| 4F | 3 | 3 21/32 | 3 11/16 | 12 | 3 1/4 | 2 1/2 | 2 3/16 | N/A |
| 5R | 3 | 3 7/8 | 3 29/32 | 9 3/4 | 3 3/8 | 2 3/4 | 2 1/4 | N/A |
| 5F-6R | 4 | 4 25/32 | 4 13/16 | 11 3/4 | 4 9/32 | 3 1/4 | 2 7/8 | N/A |
| 6F | 5 | 5 11/16 | 5 23/32 | 14 5/8 | 5 3/16 | 4 1/8 |
