ISA Back Pressure Клапан vs Tree Test Plug: Complete Oilfield Guide

Introduction to Устьевое оборудование Pressure Control

In oil and gas production systems, wellhead pressure control tools are essential for maintaining operational safety and ensuring proper installation of surface equipment.

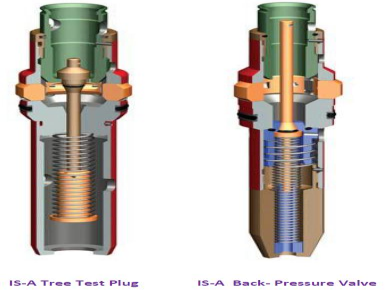

Two critical components widely used in well completion and well intervention operations are the ISA Back Pressure Клапан (BPV) and the ISA Tree Test Plug (TTP).

Both tools are installed in tubing hangers or wellhead adapters, but they serve different purposes in the pressure control process during Christmas tree installation and testing.

Understanding the differences between these tools helps engineers select the correct oilfield pressure control equipment for safe and efficient operations.

This guide explains:

• What an ISA Back Pressure Клапан is

• What a Tree Test Plug does

• Key differences between BPV and TTP

• Installation procedures

• Applications in well completion operations

---

What is an ISA Back Pressure Клапан?

The ISA Back Pressure Клапан (BPV) is a pressure control device used to seal the tubing hanger and contain well pressure from below.

The valve latches into a mating groove inside TC-Series tubing hangers or couplings, creating a reliable pressure barrier.

This isolation allows operators to safely remove blowout preventers and install the Christmas tree assembly without exposing surface equipment to well pressure.

---

Functions of a Back Pressure Клапан in Oilfield Operations

Wellbore Pressure Isolation

The primary function of the BPV is to seal the wellbore and isolate formation pressure.

This allows operators to safely perform operations such as:

• Removing blowout preventers (ПВО)

• Installing the Christmas tree

• Conducting wellhead maintenance

• Performing intervention operations

BPVs act as a temporary barrier that prevents well pressure from reaching the surface.

---

Safe Фонтанная арматура Installation

During well completion, the Christmas tree is installed after the ПВО stack is removed.

The BPV ensures that well pressure remains contained within the tubing hanger, allowing safe installation of:

• Master valves

• Wing valves

• Swab valves

• Surface safety systems

Without a BPV, tree installation could expose equipment and personnel to dangerous well pressure.

---

Temporary Pressure Isolation for Repairs

Another important function of the BPV is allowing tree maintenance without killing the well.

Operators can temporarily isolate well pressure to perform:

• Клапан repairs

• Surface equipment maintenance

• Pressure control adjustments

This significantly reduces well intervention costs.

---

Pressure Equalization and Monitoring

ISA Back Pressure Valves typically include an internal stinger mechanism that allows operators to:

• Check wellbore pressure

• Equalize pressure across the valve

• Safely retrieve the valve

Pressure equalization prevents sudden pressure release during removal.

---

Design Advantages of ISA Back Pressure Valves

ISA BPVs are designed specifically for high-pressure oil and gas wells.

Key design features include:

Controlled Sealing Location

The valve seals in the tubing hanger or coupling, where:

• Structural strength is highest

• Dimensional tolerances are tightly controlled

This improves sealing reliability compared to sealing directly in tubing.

Secure Latching System

The valve latches into a precisely machined groove, preventing accidental movement into the tubing string.

Positive Setting Indication

A shear pin release mechanism confirms when the valve is properly set.

Flexible Installation

The valve can be installed using:

• Ручной installation tools

• Гидравлический lubricator systems

This allows deployment in both offshore and onshore wells.

---

What is an ISA Tree Test Plug?

The ISA Tree Test Plug (TTP) is a specialized tool used to pressure test the Christmas tree and wellhead system after installation.

Unlike the BPV, the Tree Test Plug is designed to hold pressure from above, sealing the tubing bore and allowing operators to apply test pressure to the surface equipment.

This ensures the integrity of the Christmas tree valves, seals, and connections before production begins.

---

Importance of Фонтанная арматура Pressure Testing

Pressure testing the Christmas tree is a critical step in well commissioning.

It verifies:

• Клапан integrity

• Уплотнение performance

• Leak prevention

• Устьевое оборудование structural strength

Tree testing ensures that the wellhead system can safely handle operating pressure during production.

---

Key Functions of a Tree Test Plug

Tubing Bore Isolation

The Tree Test Plug seals the tubing hanger profile and isolates the tubing bore from test pressure.

This allows operators to pressure test only the Christmas tree and wellhead equipment.

---

Accurate Surface Equipment Testing

By isolating the tubing string, the TTP ensures that pressure tests evaluate the integrity of:

• Christmas tree valves

• Устьевое оборудование connections

• Surface pressure control components

This improves the accuracy of pressure testing procedures.

---

Simplified Installation

One advantage of the ISA Tree Test Plug is that it installs exactly the same way as the Back Pressure Клапан.

Operators can use the same:

• Installation tools

• Lubricator systems

• Tubing hanger profiles

This simplifies operational procedures in the field.

---

Limitation of Tree Test Plugs

Unlike a Back Pressure Клапан, the Tree Test Plug cannot hold pressure from below.

Therefore, well pressure must be isolated before testing.

Common isolation methods include:

• Downhole plugs

• Surface Controlled Subsurface Safety Valves (SCSSV)

Without downhole isolation, formation pressure could push the plug upward.

---

ISA Back Pressure Клапан vs Tree Test Plug
