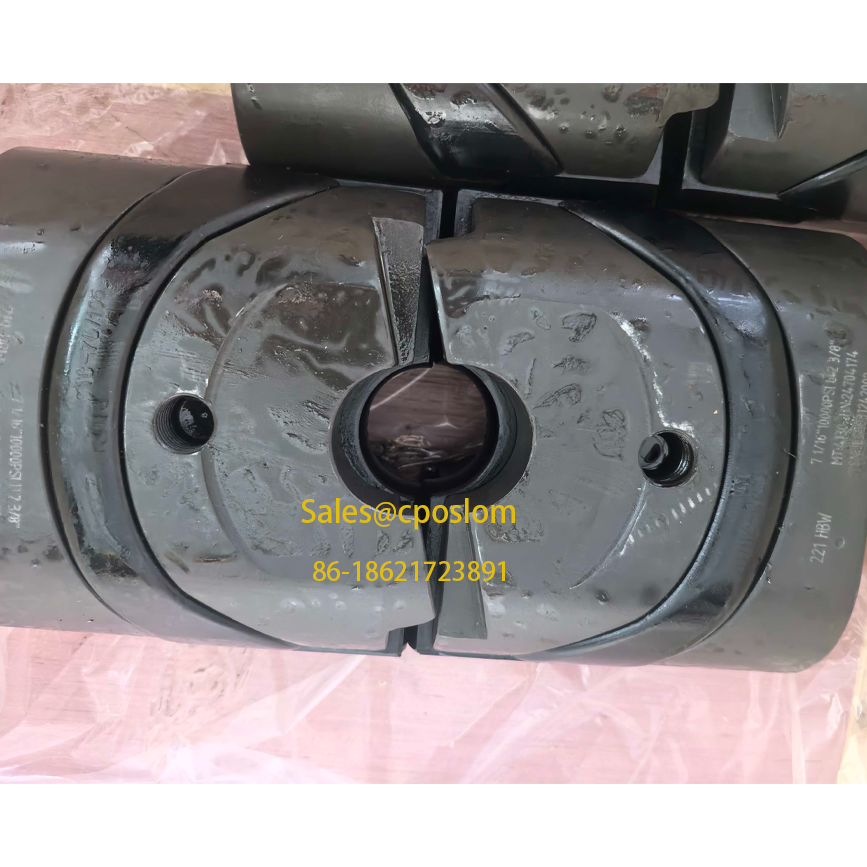

U AND UM ПВО Pipe Rams
The standard “U” ПВО pipe rams are interchangeable for the U and UM ПВО’s.
Pipe rams are available for use in Cameron U, and UM ПВО’s to fit all commonly used sizes of tubing, drill pipe, drill col
lar or casing within the ranges in the charts of the following pages. Cameron pipe rams include the following features:
1.Cameron pipe rams are self-feeding and incorporate a large reservoir of packer rubber to ensure a long lasting seal under all conditions.
2.Ram packers lock into place and are not dislodged by well flow.
3.All Cameron pipe rams are suitable for H2S service per NACE MR-01-75.
4.CAMRAM top seals are standard for all U and UM ПВО pipe rams from 7-1/16” through 18-3/4” sizes. Пакер part numbers beginning with 644xxx indicate the CAMRAM lipped-plate design. Other part numbers may use standard elastomer material and reinforced plates. Verify this with you Cameron representa tive.
CAMRAM 350TM packers and top seals are available for high temperature service and for service in which concentrations of H2S are expected.
| Part Numbers for U & UM ПВО Pipe Rams | ||||||
|---|---|---|---|---|---|---|
| 7-1/16″ | 11″ | |||||
| Pipe Size (in.) |
3,000, 5,000, 10,000 and 15,000 psi WP Top Уплотнение 644214-01-00-01 |
3,000, 5,000 and 10,000 psi WP Top Уплотнение 644217-01-00-01 |
||||
| В сборе | Ram | Пакер | В сборе | Ram | Пакер | |
| Blind | 644216-01-00-02 | 644500-01-00-02 | 644215-01-00-01 | 236510-00-04-01 | 236510-00-04 | 644218-01-00-01 |
| 1.050 | 644216-02 | |||||
| 1.315 | 644216-03-00-01 | 044102-02-00-01 | 644215-03 | 644219-02 | ||
| 1.660 | 644216-04-00-01 | 044102-03-00-01 | 644215-04-00-01 | 644219-03-00-01 | 044218-02-00-01 | 644218-03-00-01 |
| 1.900 | 644216-05-00-01 | 044102-04-00-01 | 644215-05-00-01 | 644219-04-00-01 | 044118-03-00-01 | 644218-04-00-01 |
| 2.062 | 644216-06 | 644219-04-00-01 | 044118-03-00-01 | 644218-04-00-01 | ||
| 2.375 | 644216-07-00-02 | 044102-05-00-02 | 644215-07-00-01 | 644219-06-00-02 | 044118-05-00-02 | 644218-06-00-01 |
| 2.875 | 644216-08 | 644219-07-00-03 | 044118-06-00-03 | 644218-07-00-01 | ||
| 3.500 | 644216-09-00-01 | 644502-01-00-01 | 644215-09-00-01 | 644219-08-00-04 | 644835-01-00-02 | 644218-08-00-01 |
| 4.000 | 644216-11 | 644215-11-00-01 | 644219-10-00-01 | 044119-02-00-01 | 644218-10-00-01 | |
| 4.500 | 644216-12-00-01 | 644503-03-00-01 | 644215-12-00-01 | 644219-11-00-03 | 644835-02-00-03 | 644218-11-00-01 |
| 4.750 | 644219-13 | |||||
| 5.000 | 644216-14-00-01 | 644503-05-00-01 | 644215-14-00-01 | 644219-14-00-01 | 644835-03-00-01 | 644218-14-00-01 |
| 5.500 | 644216-15 | 644215-15-00-01 | 644219-16-00-02 | 644835-05-00-01 | 644218-16-00-01 | |
| 5.750 | 644219-17 | |||||
| 5.875 | ||||||
| 6.000 | 236510-19-04-01 | 236510-19-04 | 644218-18-00-01 | |||
| 6.625 | 644219-19-00-01 | 644835-04-00-01 | 644218-19-00-01 | |||
| 7.000 | 644219-20-00-01 | 044120-11 | 644218-20-00-01 | |||
| 7.625 | 644219-21-00-01 | 044120-05-00-01 | 644218-21-00-01 | |||
| 7.750 | 644219-22 | 644218-22-00-01 | ||||
| 8.625 | — | — | — | 644219-23 | — | 644218-23-00-01 |
| 9.000 | ||||||
| 9.625 | ||||||
| 10.750 | ||||||
| 11.750 | ||||||
| 1.250 | 644216-17-00-01 | 644502-08-00-01 | 644215-17-00-01 | — | — | — |
| 1.500 | 644216-18-00-01 | 644502-09-00-01 | 644215-18-00-01 | — | — | — |
| 1.750 | 644216-19-00-01 | 644502-10-00-01 | 644215-19-00-01 | — | — | — |
| 2.250 | 644216-16-00-01 | 044102-12-00-01 | 644215-16-00-01 | 644219-24-00-01 | 044118-08-00-01 | 644218-24-00-01 |
| 3.650 | 644216-20-00-01 | 644502-02-00-01 | 644215-20 | — | — | — |
| 3.500 Aluminum | 644216-10 | — | — | 644219-09 | — | — |
| 4.500 Aluminum | 644216-13 | — | — | 644219-12 | — | — |
| 5.000 Aluminum | 644219-15 | |||||
