Description
Globe valve is mainly used in hydraulic pipeline or hydraulic integrated system to control the flow of oil or cut-off, its valve core is conical seal and hydraulic balance type, with small opening force, good sealing performance and other characteristics.
This series of globe valves are mainly composed of valve body, valve core, adjusting rod, handwheel, etc. The valve body is made of steel forging, with nickel plating on the surface and excellent corrosion resistance.This series of globe valve has screw thread, flange, plate type and other installation connection, easy to choose.

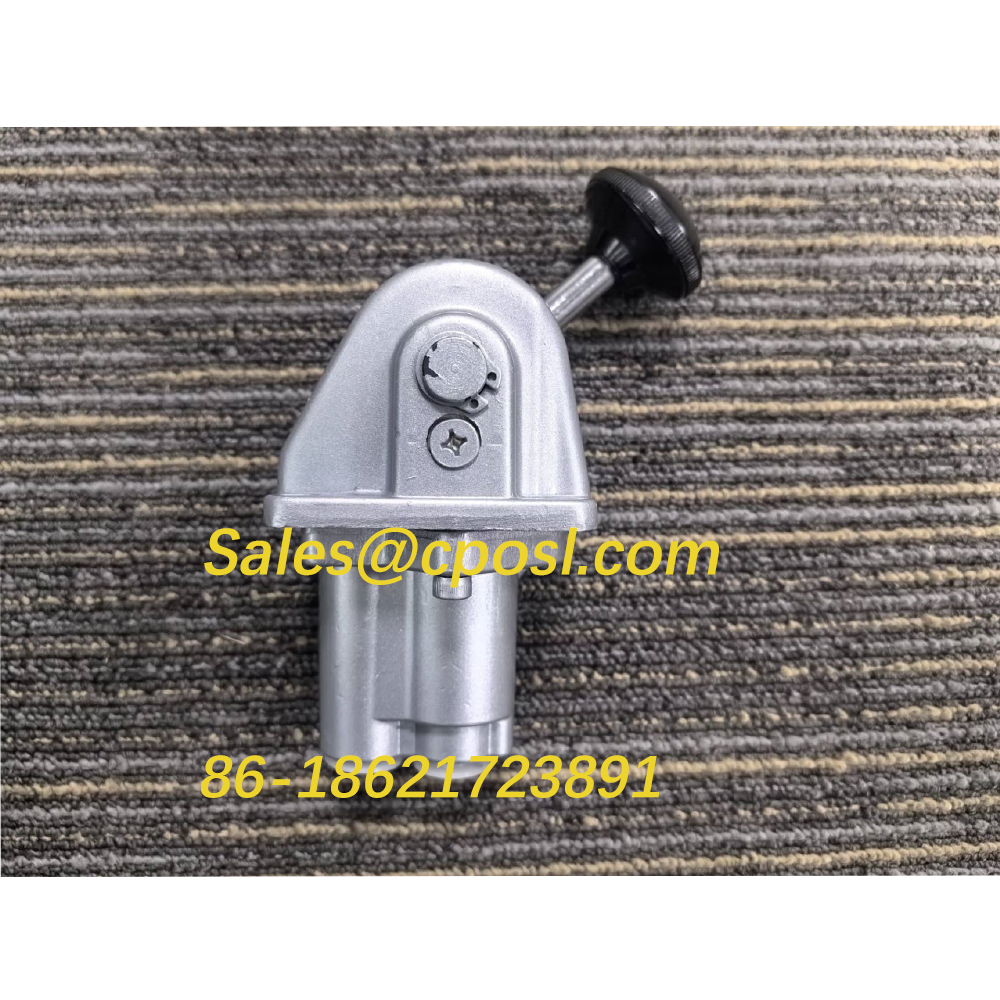

| 1 / 4 ”空气主控阀1″Main Air Control Клапан（1/4”KQKF-00-00） |
| In repair kit维修包 |
(Item)序号 |
图号(Part No.) |
名称(Description) |
数量Qty |
|
1 |
1/4″KQKF-00-01 |
阀体 Клапан Корпус |
1 |
|
2 |
1/4″KQKF-00-04 |
导套Guide Bush |
1 |
|
3 |
1/4″KQKF-00-02 |
圆锥弹簧Conical Пружина |
1 |
|
4 |
1/4″KQKF-00-03 |
支承垫Supporting Прокладка |
1 |
|
5 |
1/4″KQKF-00-05 |
阀芯 Клапан Core |
1 |
|
6 |
1/4″KQKF-00-06 |
阀座 Клапан seat |
1 |
|
7 |
1/4″KQKF-00-07 |
圆锥弹簧Conical Пружина |
1 |
|
8 |
1/4″KQKF-00-08 |
进排气套Air Inlet/Outlet Bush |
1 |
|
9 |
1/4″KQKF-00-10 |
顶杆 Tappet |
1 |
|
10 |
1/4″KQKF-00-23 |
标牌Name Plate |
1 |
|
11 |
1/4″KQKF-00-22 |
手柄套Handle Sleeve |
1 |
|
12 |
1/4″KQKF-00-21 |
锁紧胶垫 Lock Резиновый Pad |
1 |
|
13 |
1/4″KQKF-00-25 |
螺栓Handle |
1 |
|
14 |
1/4″KQKF-00-20 |
手柄 Handle |
1 |
