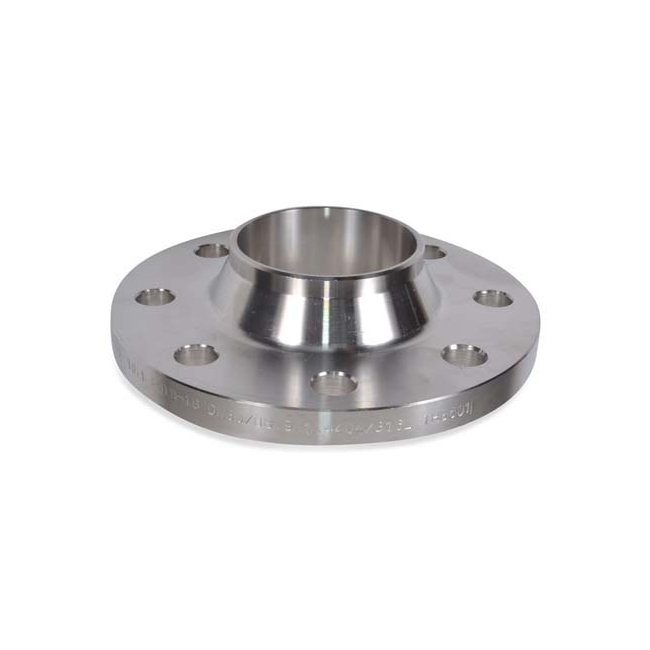

Сварной шей Фланец

API 6A Сварной шей Фланец are pipe flanges attach by welding the pipes to the neck of the flanges. This transfers stress from the flange to the pipe instead. weld-neck-flange also reduces the stress concentration from the base of the hub.

Welding neck flange remove stress concentration and allow full working pressure and they are often used for high pressure applications. The inside diameter of the flange is designed to match the pipe’s inside diameter.

Weld neck pipe flange are typically provided with a raised face, flat face, or RTJ facing.

Размер: 1-13/16″ – 26-3/4″

Рабочее давление: 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI, 20000 PSI

Материал: AISI 4130(forged)/ SUS316/Inconel 625

Face: FF, РЧ, RTJ

Соединение: bolted or studded

Temp Class: L-U

Материал Class: BB, CC, DD, EE, FF

Product Specification Уровень: PSL1, PSL2, PSL3, PSL4

Performance Requirement: PR1, PR2

Standards: API 6A, NACE MR0175, ISO 9001, ISO14001, ANSI
