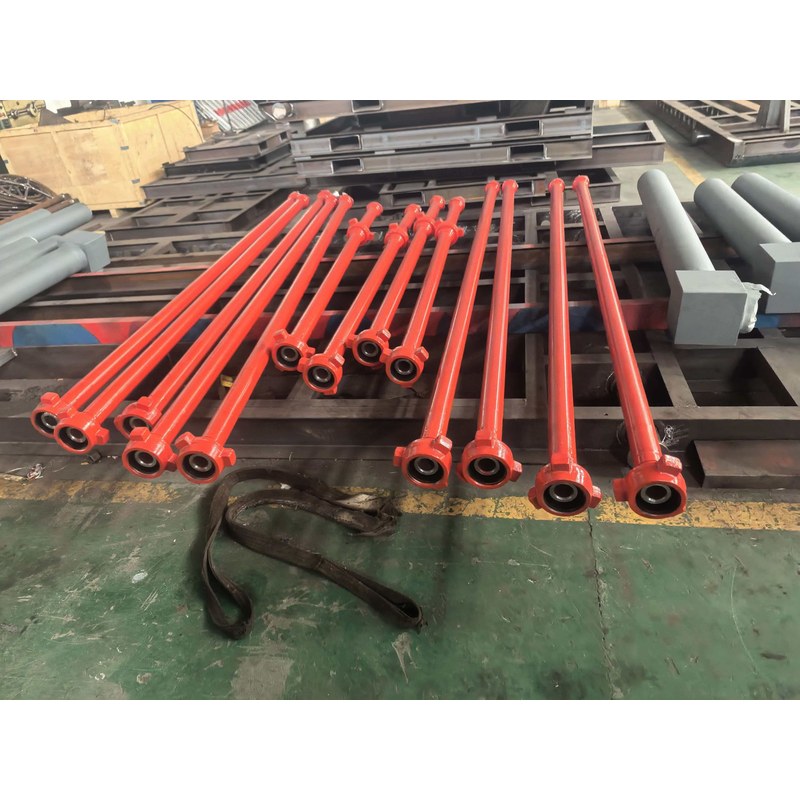

Weco Pup Joints — Высокого давления Flowline Fittings for Масло & Газ Operations
Weco Pup Joints are precision-machined oilfield flowline fittings engineered to connect piping sections in high-pressure drilling, cementing, fracturing, and well service applications. These short-length connecting spools feature Weco hammer union end connections, allowing quick make-up and break-out in the field without specialized tools.
Шпонка Features & Benefits
- Кованый High-Strength Стальной: Manufactured from premium alloy steel for exceptional durability under cyclic pressure loads.
- Weco Быстросъёмное соединение Connections: Industry-standard Weco 1502 and Weco 2202 union ends ensure leak-proof sealing and rapid assembly.
- Multiple Configurations: Available in Внутренняя резьба × Внутренняя резьба (F×F), Наружная резьба × Внутренняя резьба (M×F), and Наружная резьба × Наружная резьба (M×M) to match your manifold or treating iron layout.
- Wide Размер Range: From 1 inch to 4 inches, covering standard and high-flow oilfield applications.
- 10,000 psi and 15,000 psi Rated: Dual pressure classes for standard and extreme well service operations.
- Коррозия-Resistant Finish: Protective coating for extended service life in harsh field environments.
Technical Specifications
Weco Pup Joints are available in multiple sizes, connection types, pressure ratings, and lengths to meet diverse operational requirements. The detailed specification table below provides all ordering information.
Weco 1502 Серия — 10,000 psi (690 bar) CWP
| Part No. | Размер | Соединение | Dimensions | Вес lbs (kg) | |
|---|---|---|---|---|---|
| L in. (mm) | H in. (mm) | ||||
| 38014-0303 | 1″ (25) | F×F | 9-1/2 (241) | 3-5/8 (92) | 9.5 (4.3) |
| 38012-0404 | 1-1/2″ (38) | F×F | 10-1/4 (260) | 3-5/8 (92) | 11.5 (5.2) |
| 38012-0405 | 1-1/2″ (38) | M×F | 10-1/4 (260) | 3-5/8 (92) | 14 (6.4) |
| 38018-0505 | 2″ (50) | F×F | 9-3/4 (248) | 4-7/8 (124) | 13.5 (6.1) |
| 38018-0506 | 2″ (50) | M×F | 9-3/4 (248) | 4-7/8 (124) | 15 (6.8) |
| 38018-0507 | 2″ (50) | M×M | 9-3/4 (248) | 4-7/8 (124) | 15 (6.8) |
| 38026-0808 | 3″ (80) | F×F | 11 (280) | 5-1/2 (140) | 20 (9.1) |
| 38024-0809 | 3″ (80) | M×F | 11 (280) | 5-1/2 (140) | 22 (10.0) |
| 38032-1313 | 4″ (100) | F×F | 12 (305) | 7-1/4 (184) | 39 (17.7) |
| 38038-1315 | 4″ (100) | M×F | 12 (305) | 7-1/4 (184) | 39 (17.7) |
Weco 2202 Серия — 15,000 psi (1,034 bar) CWP
| Part No. | Размер | Соединение | Dimensions | Вес lbs (kg) | |
|---|---|---|---|---|---|
| L in. (mm) | H in. (mm) | ||||
| 38016-0303 | 1″ (25) | F×F | 9-1/2 (241) | 3-5/8 (92) | 9.5 (4.3) |
| 38016-0404 | 1-1/2″ (38) | F×F | 10-1/4 (260) | 3-5/8 (92) | 11.5 (5.2) |
| 38016-0405 | 1-1/2″ (38) | M×F | 10-1/4 (260) | 3-5/8 (92) | 14 (6.4) |
| 38018-0505 | 2″ (50) | F×F | 9-3/4 (248) | 4-7/8 (124) | 13.5 (6.1) |
| 38018-0506 | 2″ (50) | M×F | 9-3/4 (248) | 4-7/8 (124) | 15 (6.8) |
| 38018-0507 | 2″ (50) | M×M | 9-3/4 (248) | 4-7/8 (124) | 15 (6.8) |
| 38028-0808 | 3″ (80) | F×F | 11 (280) | 5-1/2 (140) | 20 (9.1) |
| 38028-0809 | 3″ (80) | M×F | 11 (280) | 5-1/2 (140) | 22 (10.0) |
| 38038-1313 | 4″ (100) | F×F | 12 (305) | 7-1/4 (184) | 39 (17.7) |
| 38038-1315 | 4″ (100) | M×F | 12 (305) | 7-1/4 (184) | 39 (17.7) |
Материал & Manufacturing Standards
- Корпус: High-strength alloy steel forging, heat-treated for optimal mechanical properties
- Weco Соединение Ends: Обработанный to tight tolerances for precise sealing with standard Weco wing nuts and seals
- Surface Finish: Anti-corrosion protective coating suitable for outdoor storage and field deployment
- Качество Control: 100% dimensional inspection and hydrostatic pressure testing per API specifications
Typical Applications
Weco Pup Joints serve as essential flowline connecting spools across a wide range of oil and gas operations:
- Cementing manifold and treating iron assemblies
- Высокого давления stimulation and fracturing lines
- Well testing and flowback equipment connections
- Свернутый tubing and snubbing unit piping
- Mud pump discharge and choke manifold connections
- Индивидуальный manifold configurations requiring precise spool lengths
Why Choose CAMTOP Weco Pup Joints?
At CAMTOP Нефтепромысловый Инструменты, every Weco Pup Соединение is manufactured with strict adherence to industry standards and backed by our commitment to quality. Whether you need a standard F×F pup joint for your mud system or a custom-length M×M pup joint for your fracturing manifold, we deliver products that perform reliably under the most demanding field conditions.
Request a Quote
Контакт CAMTOP Нефтепромысловый Инструменты today for competitive pricing on Weco Pup Joints. We maintain extensive inventory across all sizes and configurations, with fast turnaround on custom length requests. Our technical team is ready to help you select the right pup joint for your specific application.
