The CAMTOP TYPE F Насос Pressure Gauge is a high-performance, oilfield-grade pressure gauge designed for measuring pulsating pressures in mud pumps and standpipes. It is also suitable for measuring steady pressures in other industrial applications. The internal dampening mechanism works across the entire pressure range without requiring adjustment, providing accurate readings even under high-vibration conditions.

Built with a tuning fork, fluid cell system — the most reliable technology for harsh oilfield operating conditions — the TYPE F gauge is fully waterproof and built to withstand the most demanding environments. Its robust design ensures that the pumped medium is always isolated from the gauge internals, preventing damage and ensuring long service life.

Product Image

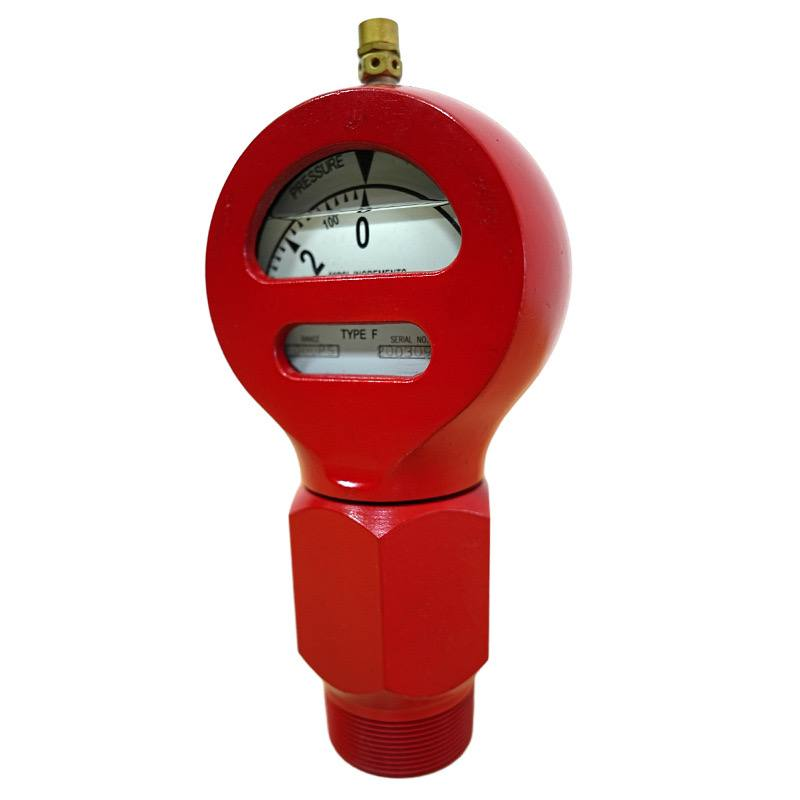

CAMTOP TYPE F Насос Pressure Gauge - Red Powder Coated Oilfield Pressure Gauge for Буровой насос and Standpipe

Figure 1: CAMTOP TYPE F Насос Pressure Gauge — Red Powder Coated, 1.6% Accuracy, 1-1/8″-12UN Mounting

Key Features

Full-Range Dampening: Internal dampening parts work across the entire pressure range — no adjustment required for any pressure level.
Dual-Mode Measurement: Accurately measures both steady and large pulsating pressure changes with equal reliability.
Fluid-Cell Dampening System: Proprietary tuning fork, fluid cell system provides superior vibration resistance in high-shock drilling environments.
Medium Isolation: The pumped medium is fully isolated from gauge internals at all times, preventing contamination and damage.
All-Weather Waterproof Design: Fully sealed and waterproof construction rated for the harshest outdoor and offshore environments.
Precision Accuracy: ±1.6% accuracy class for reliable pressure monitoring in critical drilling operations.
Wide Temperature Range: Operates from -35°C to +55°C, suitable for arctic to tropical environments.
Standard Oilfield Thread: 1-1/8″-12UN mounting thread for direct installation on mud pumps and standpipes.
High-Pressure Rating: Available in 10,000 psi, 15,000 psi, and 20,000 psi ranges to match your pump specifications.
Factory-Direct Pricing: CAMTOP manufactures and supplies directly — no distributor markup, OEM pricing available.

Technical Specifications

Parameter	Value / Specification
Model Series	TYPE F
Product Name	Насос Pressure Gauge / Буровой насос Pressure Gauge
Pressure Ranges	0–10,000 psi \| 0–15,000 psi \| 0–20,000 psi (Custom ranges available)
Accuracy Class	±1.6% of full scale
Operating Temperature	-35°C to +55°C (-31°F to +131°F)
Mounting Thread	1-1/8″-12UN (Standard oilfield thread)
Primary Applications	Mud Pumps, Standpipes, Circulation Systems
Dampening System	Tuning Fork, Fluid Cell (Built-in, non-adjustable)
Internal Fluid	CAMTOP All-Weather Gauge Oil (Specialized dampening fluid, do not replace)
Case Material	Стальной body with powder-coated finish (Red standard)
Waterproof Rating	IP65 / Fully sealed for harsh environments
Vibration Resistance	High — designed for continuous mud pump operation
Maximum Continuous Load	Do not exceed 2/3 of full scale for extended periods
Connection Type	Male threaded, direct mount
Certification	Manufactured to oilfield industry standards
Origin	CAMTOP — Made in China (Factory Direct)

Main Components & Operating Principle

The CAMTOP TYPE F gauge uses a tuning fork, fluid cell system as its primary internal mechanism. This time-proven design has demonstrated the highest reliability for oilfield operating conditions:

Стальной Gauge Корпус: Heavy-duty steel casing with red powder-coated finish for corrosion resistance and high visibility on the rig floor.
Tuning Fork Mechanism: Converts pressure pulses into stable mechanical oscillations, eliminating needle flutter under pulsating flow.
Fluid Cell Chamber: Contains proprietary dampening fluid that absorbs vibration energy and stabilizes the pressure reading.
Pressure Element (Bourdon Tube): High-strength pressure sensing element calibrated for 10K / 15K / 20K psi ranges.
Precision Dial & Pointer: Large-diameter dial with clear white face and black markings for easy reading at distance.
Relief Screw (Top): Factory-set pressure relief vent — must remain loosened 1 full turn during operation to prevent over-pressure damage.
Threaded Connection Base: 1-1/8″-12UN male thread for direct installation on mud pump discharge ports or standpipe outlets.

Dimensions & Product Variants

Variant	Pressure Range	Max Safe Operating Pressure	Typical Application
TYPE F-10K	0–10,000 psi	6,667 psi (continuous)	Standard mud pumps, triplex pumps
TYPE F-15K	0–15,000 psi	10,000 psi (continuous)	High-pressure mud pumps, deep drilling
TYPE F-20K	0–20,000 psi	13,333 psi (continuous)	Ultra-high-pressure cementing, HPHT wells

Note: For continuous operation, do not exceed 2/3 of the full-scale pressure range. All dimensions and part breakdowns are available from CAMTOP upon request.

Applications

Буровой насос Discharge Pressure Monitoring: Real-time monitoring of standpipe and pump discharge pressures during drilling and cementing operations.
Standpipe Pressure Measurement: Essential for detecting kick indicators, maintaining balanced drilling, and preventing well control incidents.
Circulation System Pressure: Monitoring pressure in drilling fluid circulation loops to ensure optimal flow rates and prevent equipment damage.
Cementing Operations: High-pressure cementing jobs require accurate pressure monitoring to prevent formation breakdown and ensure proper cement placement.
Well Service & Workover: Pressure monitoring during stimulation, fracturing, and well intervention operations.
Workshop & Test Bench: Calibrating and testing mud pumps, valves, and other pressure equipment in maintenance facilities.

Installation & Operation Instructions

⚠️ CAUTION: Improper installation or operation can result in serious personal injury or equipment damage. Read all instructions carefully before use.
