SL160 Rotary Шарнир 旋转水龙头
API SPEC 8C | 1600 kN Rated Нагрузка | 35 MPa (5,000 PSI) | Max 300 RPM
Product Overview
The SL160 Rotary Шарнир is a heavy-duty drilling swivel designed and manufactured to API SPEC 8C standards. With a rated static load capacity of 1600 kN and a maximum working pressure of 35 MPa (5,000 PSI), it is engineered for demanding drilling operations. The swivel features a self-sealing packing unit with quick-change design, allowing field replacement of the wash pipe and packing without disassembling other components.
Стандарт: API SPEC 8C | Rated Нагрузка: 1600 kN | Max Рабочее давление: 35 MPa (5,000 PSI) | Вес: 950 kg
В сборе Drawing

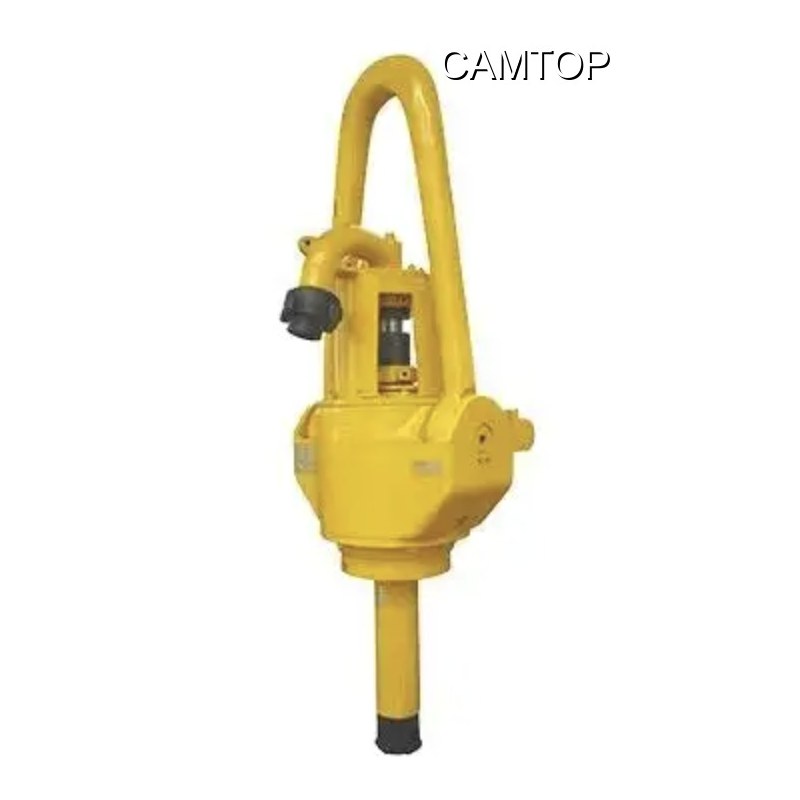

SL160 Rotary Шарнир General В сборе Drawing — For reference only
Шпонка Features
- API SPEC 8C Compliant: Designed and manufactured to international drilling equipment standards
- High Нагрузка Производительность: 1600 kN (360,000 lbs) rated static load for heavy-duty drilling operations
- Высокого давления Rating: 35 MPa (5,000 PSI) maximum working pressure
- Self-Sealing Набивка Блок: Быстрый-change design allows wash pipe and packing replacement without major disassembly in the field
- High Скорость Эксплуатация: Maximum 300 RPM rotation speed for efficient drilling
- 4-1/2″ REG LH Соединение: Стандарт API rotary shouldered connection for lower stem
- 3LP Gooseneck Соединение: API 5B standard line pipe thread for mud hose connection
- Thrust Подшипник Система: Main bearing with upper and lower stabilizer bearings for smooth rotation under load
- Dual Lubrication: Шестерня oil bath for main housing + lithium grease for packing and bearing fittings
- Low Температура Capable: Designed for operation down to -20°C (-4°F). Нижний temperature available on request
Technical Specifications
| Item | Specification |
|---|---|
| Модель | SL160 |
| Design Стандарт | API SPEC 8C |
| Rated Static Нагрузка | 1,600 kN (360,000 lbs) |
| Max Rotation Скорость | 300 RPM |
| Max Рабочее давление | 35 MPa (5,000 PSI) |
| Center Tube ID | 57 mm (2.24″) |
| Нижний Соединение | 4-1/2″ REG LH (Левый Hand) |
| Gooseneck Соединение | 3 LP (API 5B) |
| Dimensions (LxWxH) | 2,650 x 875 x 695 mm |
| Net Вес | 950 kg (2,094 lbs) |
| Min. Operating Температура | -20°C (-4°F) |
| Lubrication Масло | SAE 90 EP Industrial Шестерня Масло |
| Смазка Тип | Lithium-based Смазка No.2 |
Main Components
| Component | Description |
|---|---|
| Bail / Lifting Кольцо | Кованый lifting ring with pin connection for standard drilling hook |
| Gooseneck | 3 LP thread connection for mud hose, with supporting bracket |
| Набивка Блок | Self-sealing quick-change design with wash pipe, packing rings, O-rings, and snap ring |
| Main Подшипник В сборе | Thrust bearing with upper seat ring, rollers, cage, and lower seat ring |
| Center Tube | 57 mm ID, with 4-1/2 REG LH lower connection |
| Корпус / Корпус | Main load-bearing housing with oil bath lubrication system |
| Gland / Stuffing Box | Нижний seal housing with oil seals and stabilizer bearing |
Техническое обслуживание Schedule
| Frequency | Техническое обслуживание Required |
|---|---|
| Each Shift | Обратный oil level. Lubricate bail pin, packing unit, and bracket seals with lithium grease No.2 |
| Every 2 Months | Replace gear oil (new/repaired swivels: change after first 200 hrs) |
| Every 2 Years | Medium repair. NDT required on main load-bearing components |
| Every 3 Years | Major overhaul. Complete disassembly, inspection, and recertification |
Why Choose CAMTOP?
- API SPEC 8C compliant design and manufacturing
- ISO 9001 certified quality management system
- Complete quality documentation with material certificates and test reports
- Запасной parts and seal kits readily available
- Competitive factory-direct pricing with global shipping
- Technical support and maintenance guidance provided
