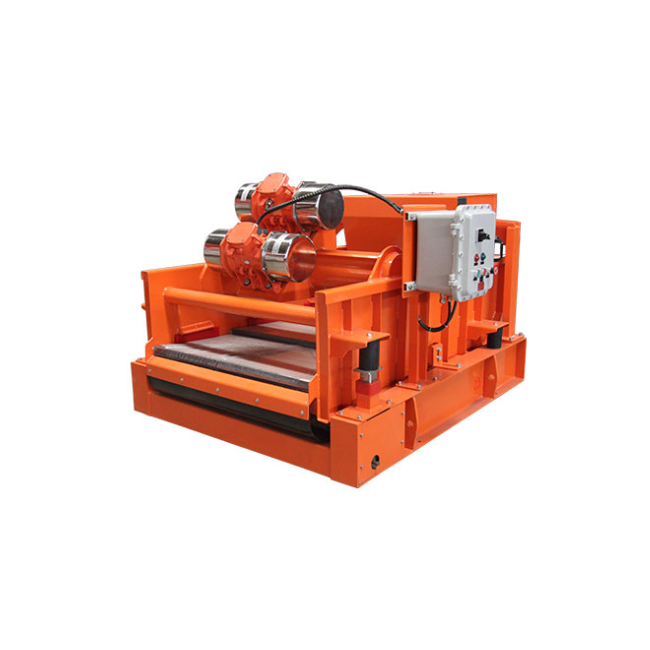

Shale Shaker
Shale Shaker is the first stage solids control equipment in drilling fluids recycling system; it is also the most important equipment. To a large extent, the performance of shale shaker decides the working efficiencies of whole solids control system. Besides single shale shaker, CAMTOP also could offer tandem shakers and triplicate shakers on single skid according to customers’ requirements and also the connecting manifold and mud distributor. CAMTOP provides the most popular type Linear Motion shale shaker.
- Ajustable High G force for primary solids control or cuttings drying.
- Тепло treatment on complete shale shaker deck.
- Vibrating Мотор: IEC Ex, ATEX and UL Сертифицированный.
- Electrical components: SIEMENS, Schneider Brand.
- Shale Shaker Bottom Deck Материал: Stainless Стальной.
- Wedge type design for easy and quick screen replacement.
- Электрический Shaker Deck angle adjustable while working.
| Модель | LK-200 | LK-528 | LK-616 |
|---|---|---|---|
| Вибрация Mode | Linear Motion | ||
| Производительность | 45m3/h(200GPM) | 120m3/h(528GPM) | 140m3/h(616GPM) |
| Вибрация Мотор | 2×0.75Kw | 2×1.72Kw | 2×1.94Kw |
| Screen Qty | 2pcs | 3pcs | 4pcs |
| Screen Размер: L×W | 750×900mm | 700×1250mm | 585×1165mm |
| Screen Площадь | 1.35m2 | 2.63m2 | 2.73m2 |
| Регулируемый G Усилие | ≤7.1G | ≤7.5G | ≤8.0G |
| Вибрация Amplitude | 3.92~5.62mm | 4.14~5.96mm | 4.4~6.34mm |
| Deck Angle Range | +2° | -1°~+5° (Регулируемый) | |
| Feeding Тип | Box Feeder | Box Feeder | Hopper Feeder |
| Weir Высота | 710mm | 1042mm | |
| EX Стандарт | ExdIIBt4 / IEC EX/ ATEX | ||
| Вес (Kg) | 893 | 1742 | 1638 |
| Dimension: L×W×H(mm) | 1676×1689×1062 | 2419×2055×1474 | 2761×1998×1428 |
