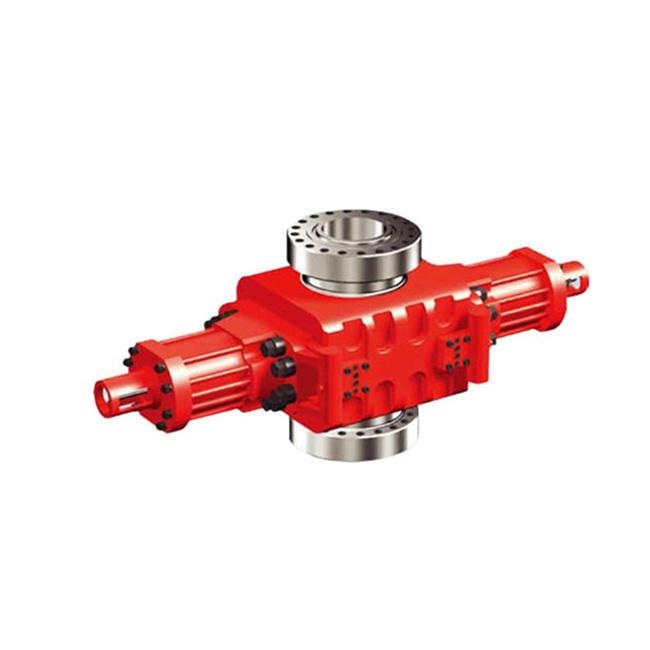

Our TYPE S Ram BOPs are designed and manufactured according to API Spec 16A standard and GB/T20174 and are equipped with single or double rams from 7 1/16″ to 21 1/4″ .

Features

• Стальной Корпус and side door.
• Uses floating type ram design. Передний ram rubber is separated from top ram rubber, making it more reliable in sealing and easier to change.
• Масло way inside body.
• Loading hinge separate from hydraulic hinge.
• Компактный hinge structure makes it easy to assemble and disassemble.
• Arc-shaped body chamber with four round corners as transition section to reduce stress peak value.
• Ram cavity can be fitted with ram assembly of same type ПВО made elsewhere.
• Stainless steel lined flange grooves.
