Description

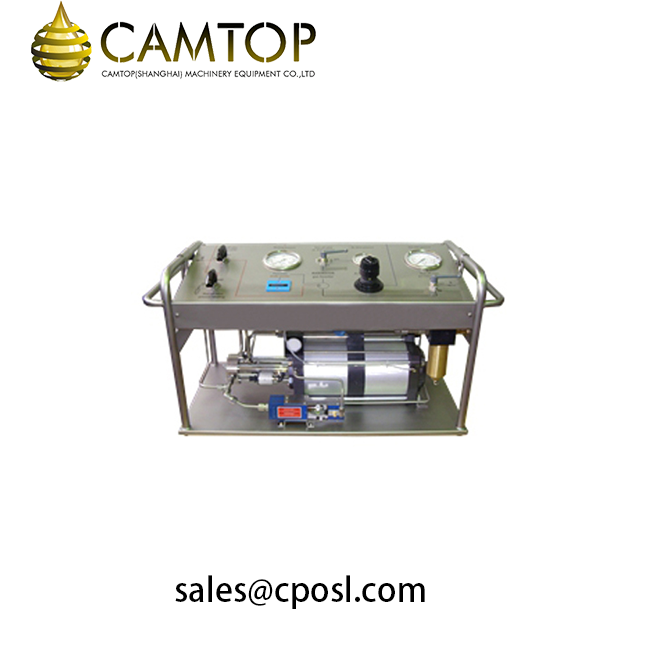

Портативный Вода Рукав Гидростатический Давление Испытательный усилитель Насос

Product Description

Introduction

Вода hose pressure booster are a fast, safe and simple method for hydrostatic testing, ideally suited to work with the above plugs or on a stand alone basis eg heat exchanger tubes, pipes, pressure vessels, hoses, etc.

Гидростатический head pressure test are for oil, water or aggressive medium are complete hydraulic units ready for connection which are provided for generating operating pressure up to 1,500bar.

The pressure will be generated by means of a pneumatically operated pump. The pump will be connected to the existing industrial compressed-air ductwork system.

Advantages

– Standstill of the pump when reaching the set final pressure

– No energy consumption in case of long pressure holding times

– No dissipated heat during the pressure holding phase

– Substitute of leakage by automatic re-delivery through the pump

– Регулятор to control inlet air supply

– High pressure bleed valve and high pressure outlet

– Simple air-driven pump

– Test in the field or in the shop

– Simple installation, operationally reliable, easy to maintain

Technical parameters

Item	Description
Medium	Вода,gas,glycol kinds of chemicals
Давление	0~1500bar
Поток	0~26.39GPM(it’s customize)
Давление accuracy	±1%FS
High pressure gauge	0~2000bar
Needle valve	412bar~2000bar(it’s customize)
Давление regulator	YES
Bleed-off valve	YES
Air compressor	N/A(it’s customize)
Вода tank	YES
Record	N/A/mechanical/electronic recorder
