Description

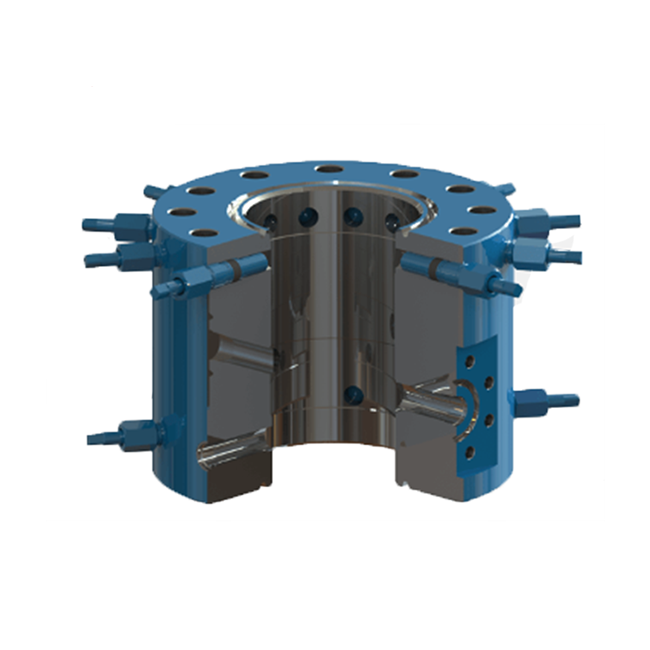

Multi-Bowl Устьевое оборудование System Multi-Bowl Spool
Multi-Bowl Устьевое оборудование В сборе supports and seals two strings of pipe in a single head, consists of two pieces: a lower housing and an upper housing-installed as one complete unit. If the intermediate casing sticks, the mandrel casing hanger cannot be used.
The two housings can be separated and the emergency slip-style casing hanger can easily be installed. CAMTOP’S produces and offers one of the most User-Friendly Multi-Bowl Устьевое оборудование Systems on the market.
Our multi-bowl wellhead system will save you time and money by safely landing multiple casing strings without having to have a nipple up crew working under a Противовыбросовый превентор.
Our Multi-Bowl Устьевое оборудование System comes complete with wear bushings, running tools, standard and emergency pack off, and combination test plug/running retrieving tool. Available in various sizes and types, we offer Multi-Bowl Устьевое оборудование systems from 2,000 PSI to 15,000 PSI to fit any need and can customize the configuration to meet customers’ ever-changing demands.
All of our Multi-Bowl Устьевое оборудование Assemblies are fully designed, manufactured, and tested in accordance with API 6A & NACE MR0175 standards. Aside from Multi-Bowl Устьевое оборудование, we also produce and supply Conventional Устьевое оборудование В сборе & Фонтанная арматура, Integral Устьевое оборудование, Dual Tubing Устьевое оборудование, Water Injection Устьевое оборудование, Thermal Recovery Устьевое оборудование, Frac Tree/Frac Stack, ESP Устьевое оборудование, Casing Heads, API6A Gate Valves, Choke & Kill Manifolds, Tubing Heads and Hangers, Flanges, Высокого давления Pipes & Fittings etc.
Product Attribute
| Delivery Date: | 45 days | Product Name: | Multi-Bowl Устьевое оборудование В сборе |
|---|---|---|---|
| Multi-Bowl Spool Size: | 8-5/8″, 9-5/8″, 10-3/4″, 11″, 13-5/8″ | Rated Working Pressure: | 2000PSI – 15000PSI |
| Material Class: | AA, BB, CC, DD, EE, FF | Temp Class: | L, P, R, S, T, U, V |
| Performance Requirement: | PR1, PR2 | Product Specification Level: | PSL1, PSL2, PSL3, PSL3G, PSL4 |
| Material: | AISI 4130 Кованый | Carried Standard: | API Spec 6A, NACE MR0175 |
| Application: | Oil Well & Gas Well Drilling Production |
Detailed Specifications:
Product Name: Multi-Bowl Устьевое оборудование В сборе, Multi Bowl Spools
Multi-Bowl Spools Size: 8-5/8″, 9-5/8″, 10-3/4″, 11″, 13-5/8″ Other sizes available upon request.
Rated Working Pressure: 2000PSI – 15000PSI
Main Components: Casing Head В сборе, Multi-Bowl Spools, Tubing Head В сборе, Studded Cross, Задвижка, Companion Фланец, Pressure Gauges, Кольцо Соединение Прокладка, etc.
Outlets: Studded Side Outlets
Material Class: AA, BB, CC, DD, EE, FF
Main Material: AISI4130 Integral Кованый or as per customers’ requirements
Temperature Class: L, P, R, S, T, U, V
Working Medium: Crude Oil, Natural Gas, Mud & Gas (H2S or CO2)
Performance Requirement: PR1, PR2
Product Specification Level: PSL-1, PSL-2, PSL-3, PSL-3G, PSL-4
Standard: API Spec 6A, NACE MR0175
Traceability: CAMTOP’S Multi-Bowl Устьевое оборудование Assemblies are supplied with full traceability documentation for each component.
Packing: Plywood
Origin: China
Application: Oil Well & Gas Well/Shale Gas Well Drilling Production etc.
The Multi-Bowl Spool is assembled to the top of the Casing Head and provides a time-saving and safer alternative to conventional spools by allowing casing and tubing to be installed, landed, and sealed through the ПВО stack.
Features/Others
Oilfield-Proven Design and Multi-Bowl Устьевое оборудование Products.
Time and Cost savings, combined with increased safety
Save rig time by reducing installation time.
Задвижка can be used as per customers’ requirements.
On-Time delivery
Competitively Priced
