Описание

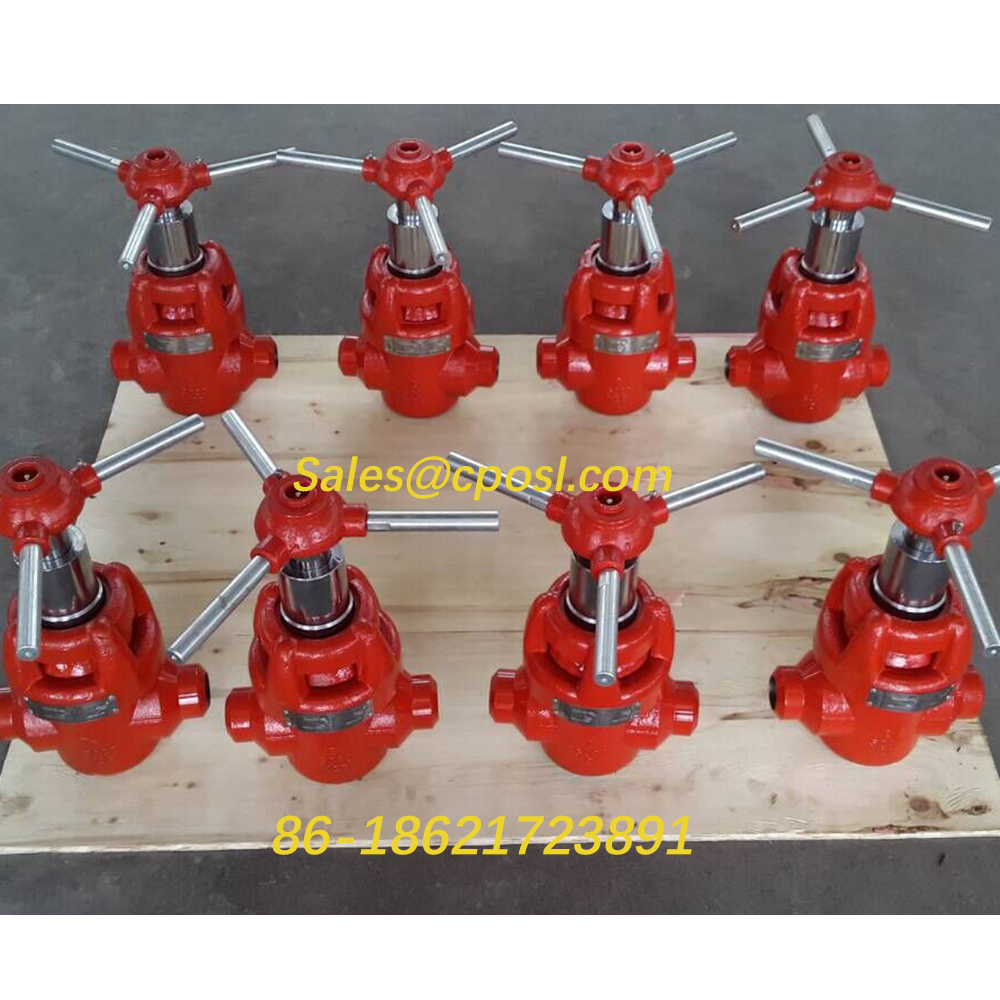

Z23Y series of mud gate valves are designed by parallel-type Metal to Metal Sealing, mainly used for Масло and Газ lines, Wellheads, Manifolds and Pipelines, Crude Масло and Sour Газ, Well Treating Chemicals. It is convenient to Открытый, the two ends of the Клапан and pipes are joined and staled with spherical movement, the movable Соединение of the rubber seal ring like “O” is not of high requirement about straightness of the two ends of pipes, When is fitted and its seal performance is good.

Технические характеристики:

MODEL Z23Y-35-
DN50		 Z23Y-35-
DN65		 Z23Y-35-
DN80		 Z23Y-35-
DN100		 Z43Y-70-
DN50		 Z43Y-70-
DN65		 Z43Y-70-
DN80		 Z43Y-70-
DN100
W.P. 5000 PSI 10000 PSI
SIZE 50
(2 1/16”)		 65
(2 9/16”)		 80
(3 1/8”)		 100
(4 1/16”)		 50
(2 1/16”)		 65
(2 9/16”)		 80
(3 1/8”)		 100
(4 1/16”)
Среда MUD
CONNECTON UNION,THREADED,BUTT WELDED FLANGE
Соединение SIZE Tr120x6
(Tr100x12)		 Tr130x6
(Tr120x12)		 Tr150x6 Tr180x6 BX152 BX153 BX154 BX155
STRUCTURE LENGTH 230 235 270 330 356 380 430 520
