Description

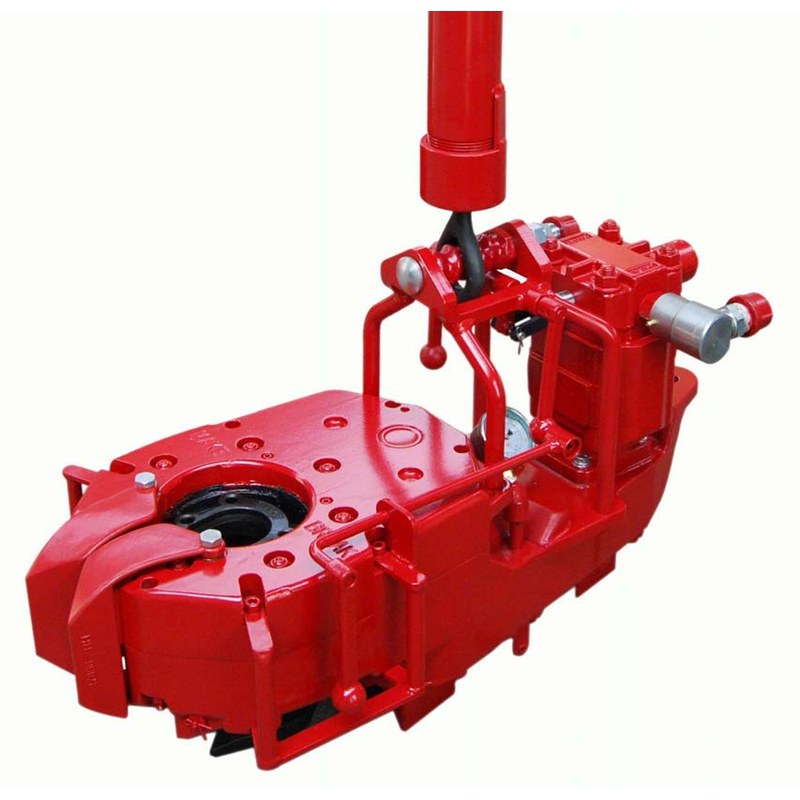

Sucker Rod Ключ – Multi-purpose Гидравлический Power Ключ for Oilfield Operations

The Sucker Rod Ключ is a new-generation multi-purpose hydraulic power tong designed with advanced international technology. It is specifically engineered for making up and breaking out sucker rods and tubing in oilfield operations.

With a compact structure, high reliability, and user-friendly design, this tong allows single-operator handling, making it an ideal solution for efficient and safe oilfield work.

Key Features

Wide Application Range
Suitable for sucker rods and tubing within specified size ranges, improving versatility in oilfield operations.
Advanced Clamping Mechanism
Specially designed system ensures fast, secure, and safe make-up or break-out for rods and tubing of various sizes.
Level Adjustment System
Equipped with a top hanger leveling screw, allowing the tong to remain perfectly balanced during threading operations.
Single Master Control
Integrated control system manages both rotation speed and direction, simplifying operation.
Tandem Control Design
Enables operation from front or either side, improving flexibility and safety on-site.
Real-Time Torque Display
Advanced torque sensor system provides accurate torque readings during make-up, ensuring precision and preventing over-tightening.
Automatic Safety Gate
Built-in safety gate offers enhanced protection and operational safety.
Flexible Jaw В сборе
- Standard unitized jaw fits 5/8″, 3/4″, and 7/8″ rods without replacement
- Quick-change jaws adapt to 1/2″, 1″, and 1-1/8″ rod sizes
- (Note: Standard configuration includes jaws for 5/8″, 3/4″, 7/8″, and 1″ rods)
Macaroni Tubing Compatibility
Can be converted for small-diameter macaroni tubing by replacing with specialized jaws
(Note: Standard model does not include jaws for small tubing sizes)
Technical Parameter

Technical Parameter
Model		(M20)	(M40)	(M50)	(M75)
Scope of applic ation	sucker rod	1/2”5/8”3/4“7/8”1”11/8”
	tubing	φ26mm(1.05”)、φ33mm(1.315”)、φ42mm(1.660”)、φ48mm(1.900”)
Rated torque		1181ft.lbs	1476 ft.lbs	1845 ft.lbs	2583 ft.lbs
Maximum speed		135 rpm	110 rpm	85 rpm	65 rpm
Rated working pressure		1000-1900psi
Oil supply of system		20-30gpm
Overall dimension (LxWxH)		33.5″×15″×18″
Total weight		3701bs
