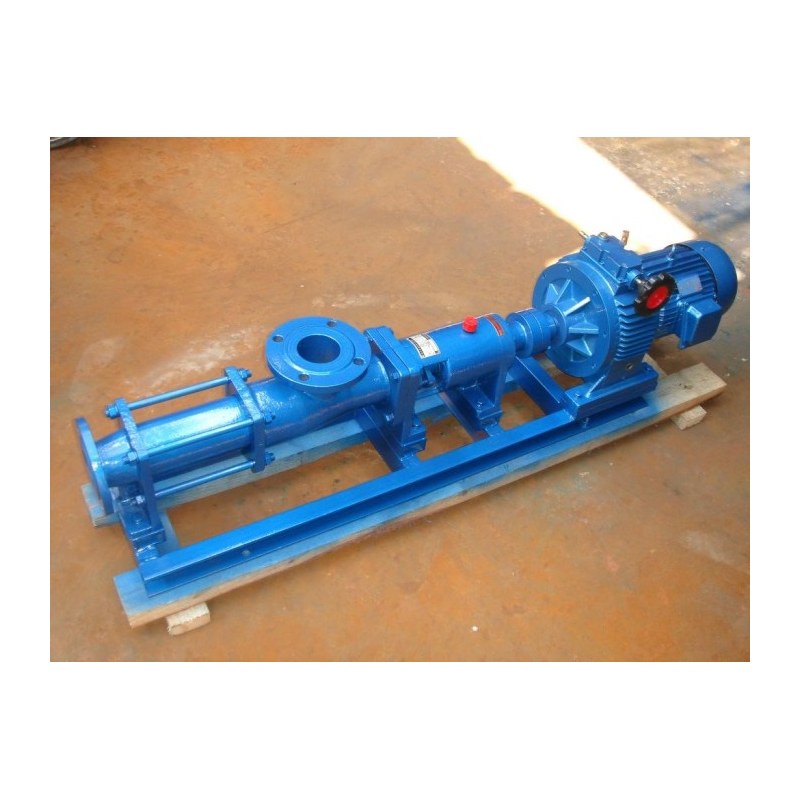

CAMTOP G Series Single Screw Progressive Cavity Pumps (Mono Screw Pumps)

CAMTOP is a leading professional manufacturer of high-performance progressive cavity pumps (PC Pumps), also known as Mono screw pumps or single screw pumps. Our G series pumps are designed for handling complex fluids that are highly viscous, shear-sensitive, or contain abrasive solids.

Technical Specifications

Feature	Specification Details
Series	G Series Positive Displacement Насос
Flow Rate (Capacity)	0.8 m³/h – 150 m³/h (Customizable)
Max Pressure	Up to 2.4 MPa (24 Bar)
Viscosity Range	1 – 1,000,000 cst
Material Options	Cast Iron / Stainless Стальной (SS304, SS316, SS316L)
Stator Material	NBR, EPDM, FPM (Viton), Food-grade Резиновый
Temperature Range	-20°C to 150°C

Why Choose CAMTOP Progressive Cavity Pumps?

Steady & Pulse-free Flow: The axial movement of the fluid ensures no turbulence or foaming, making it ideal for dosing and metering.
High Self-priming Ability: Excellent suction lift capabilities, even when handling air-liquid mixtures.
Low Shear Pumping: Protects shear-sensitive media (like polymers or food products) from damage during transport.
Versatile Media Handling: Efficiently moves sludge, thick slurries, chemical additives, and high-solid content fluids.
Durability by CAMTOP: Features high-precision rotors and wear-resistant stators for extended service life and reduced maintenance.

Typical Applications

CAMTOP Mono pumps are widely utilized across various global industries:

Oil & Gas: Oily sludge, drilling mud, and crude oil transfer.
Waste Water Treatment: Dewatered sludge, polymer dosing, and flocculant feeding.
Food & Beverage: Fruit pulp, honey, chocolate, yogurt, and beverages (Food-grade SS available).
Chemical Industry: Acids, alkalis, resins, paints, and high-viscosity adhesives.
Mining & Construction: Grout, mortar, and mineral slurries.

Frequently Asked Questions (FAQ)

Q: Can CAMTOP single screw pumps handle solids?A: Yes, our G series design allows for the passage of suspended solids and fibrous materials without clogging, thanks to the elastic stator technology.

Q: Are CAMTOP pumps reversible?A: Absolutely. The progressive cavity principle allows for reversible flow by simply changing the direction of the motor rotation.

Looking for a reliable Mono Насос Manufacturer? Contact CAMTOP today for a custom quotation based on your specific medium, viscosity, and pressure requirements.
