Description

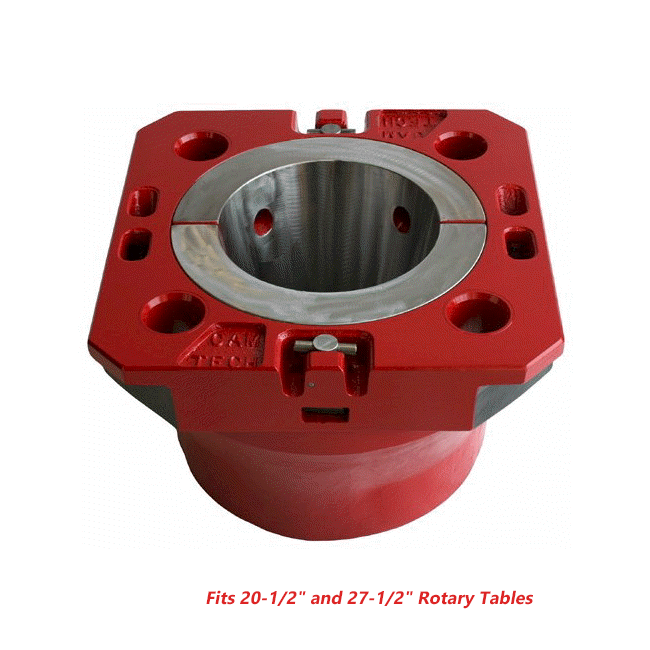

Fits 20-1/2″ and 27-1/2″ Rotary Tables

CAMTOP has developed a special type Split Types Палец Drive Мастер-втулка suitable for 27.5″ API Роторный стол conforming to API-7K specifications which can handle tubular size from 2-3/8″ to 13-3/8″ OD with the help of bowl no. 1,2 & 3 and Мастер-втулка designed to handle string load of 500 tons.

Втулка Тип Роторный стол Размер(in) Вставка Bowls Handling Pipe OD(in)
MSS Solid body and Split Корпус 17 1/2 API Bowl 1011 2 3/8-8 5/8
EXT.Bowl 1024
20 1/2 API Bowl 1011
EXT.Bowl 1024
27 1/2 API Bowl 1022
EXT.Bowl 1025
Вставка Bowl 1026
MDSP Split Корпус 17 1/2 EXT.No.3 Taper 2 3/8-8 5/8
20 1/2
MSPC Solid body 20 1/2 Bowl 1809 2 3/8-8 5/8
Bowl 1902 9 5/8-10 3/4
Корпус only 1805 11 3/4-13 3/8
27 1/2 Bowl 1810(No3) 2 3/8-8 5/8
Bowl 1904(No2) 9 5/8-10 3/4
Bowl 1903(No1) 11 3/4-13 3/8
MSP Split Корпус 27 1/2 EXT.No.3 Taper 2 3/8-8 5/8
MPCH 37 1/2 Bowl 6608(No3) 2 3/8-8 5/8
Bowl 6609(No2) 9 5/8-10 3/4
Bowl 6610(No1) 11 3/4-13 3/8
