Description

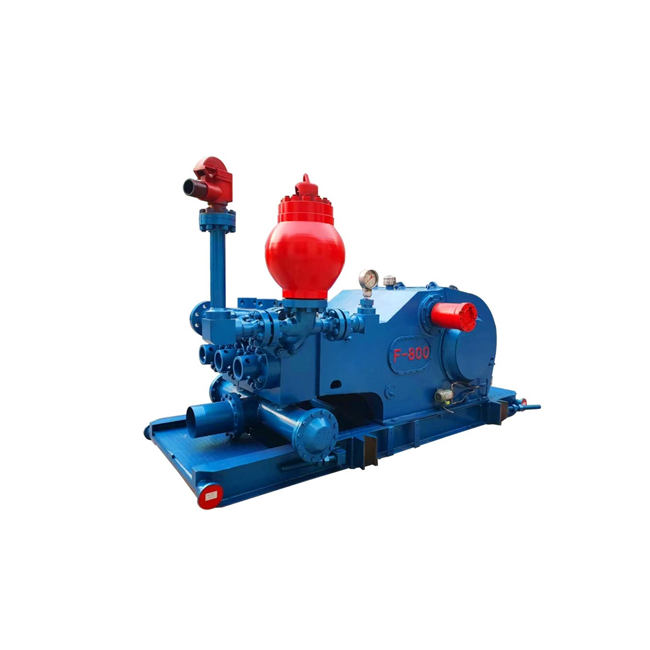

F-800 Буровой насос



  • F Series Mud Pumps are manufactured under standard of API Spec 7k, mud pump parts at the fluid end are interchangeable with the parts that are in conformity with API Spec.
  • The suction pulsation dampener has an advanced structure which is reliable to use and can make the pump realize its best suction performance.
  • Performance of mud pump was greatly improved by durable fluid end; and examination, mud pump repair and mud pump maintenance are easier to make due to its independent structure.

F-800 mud pump specification

Model F-800
Rated Power(kW/HP) 597/800
Type Triplex Single-Acting
Strokes per minute 150
Stroke Length(mm/in) 229/9″
Max. Втулка Dia(mm/in) 170/6 3/4″
Шестерня Type Herringbone Шестерня
Клапан Pot API-6#
Шестерня Ratio 4.185:1
Dia of Suction Inlet(mm/in) 254/10″
Dia of Discharge Outlet 5 1/8″flange 5000psi
Dia. of Pinion Shaft(mm/in) 177.8(7)
Max Pressure(Mpa/psi) 34.5/5000
Overall Dimensions(mm/in) 3963*3025*2410 / 56″*119″*95″
Weight kg(lb) 14500(31970)
