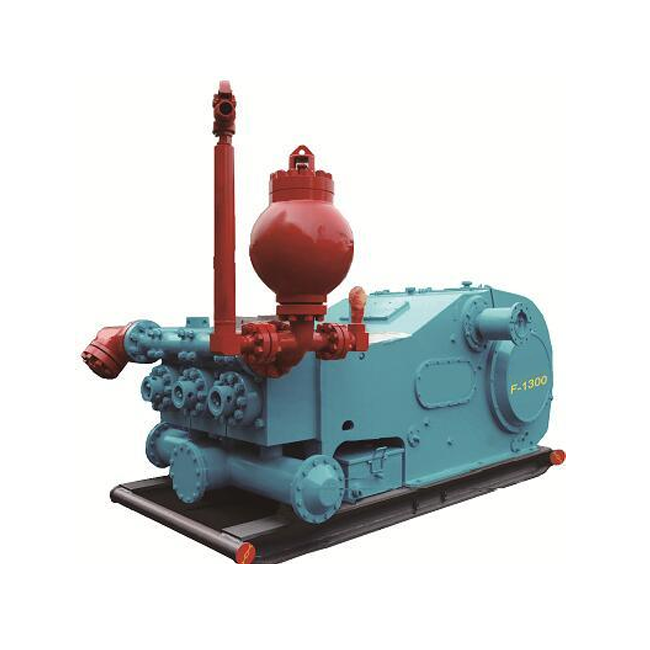

F-1300 Буровой насос



  • F Series Mud Pumps are manufactured under standard of API Spec 7k, mud pump parts at the fluid end are interchangeable with the parts that are in conformity with API Spec.
  • The suction pulsation dampener has an advanced structure which is reliable to use and can make the pump realize its best suction performance.
  • Performance of mud pump was greatly improved by durable fluid end; and examination, mud pump repair and mud pump maintenance are easier to make due to its independent structure.

F-1300 mud pump specification

Model F-1300
Rated Power (kW/HP) 969/1300
Type Triplex Single-Acting
Strokes per minute 120
Stroke Length(mm/in) 305/12″
Max. Втулка Dia(mm/in) 180/7″
Шестерня Type Herringbone Шестерня
Клапан Pot API-7#
Шестерня Ratio 4.206:1
Dia of Suction Inlet(mm/in) 305/12″
Dia of Discharge Outlet 5 1/8″flange
5000psi
Dia. of Pinion Shaft(mm/in) 215.9(8 1/2)
Max Pressure(Mpa/psi) 34.5/5000
Overall Dimensions(mm/in) 4617*3260*2600 / 82″*128″*102″
Weight kg(lb) 24572(54170)
