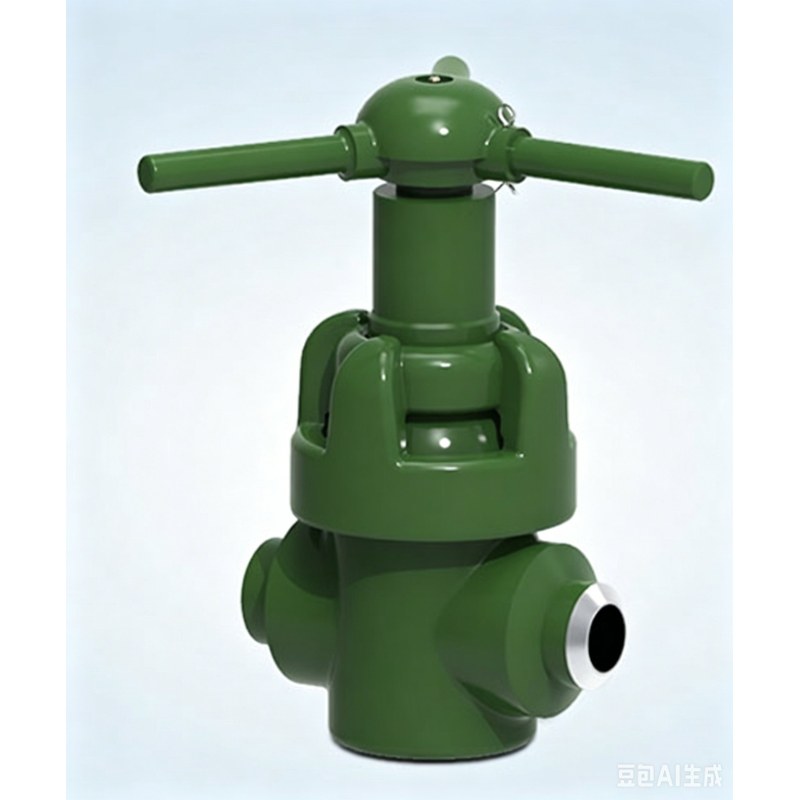

DEMCO DM Серия Низкого давления Gate Клапаны – 2000, 3000 & 5000 PSI WP
The DEMCO DM Серия Низкого давления Gate Клапаны offer versatile, cost-effective flow control solutions for general service conditions in the oilfield industry. Available in three pressure ratings — 2000 PSI, 3000 PSI, and 5000 PSI — and two valve sizes — 2 in. (50 mm) Полнопроходной and 2-1/2 in. (65 mm) Reduced Port — these gate valves provide reliable performance for a wide range of upstream, midstream, and downstream applications.
Unlike the high-pressure 7500 PSI DM Серия, these low-pressure models feature four end connection options: Резьбовой, Grooved, Weld, and Фланцевый (RTJ), giving maximum flexibility for different piping systems. The valves are available with multiple body configurations, material options, and coating choices to suit various service environments from standard hydrocarbon to sour gas applications.
Шпонка Features & Benefits
- Multiple Давление Ratings: 2000 PSI, 3000 PSI, and 5000 PSI WP to match different application requirements
- Dual Клапан Sizes: 2 in. (50 mm) Полнопроходной and 2-1/2 in. (65 mm) Reduced Port options
- Four End Connections: Резьбовой, Grooved, Weld, and Фланцевый (RTJ) for maximum installation flexibility
- Multiple Корпус Configurations: Резьбовой (4), Weld (5), Grooved (6 – 2000 PSI only), and Фланцевый (7)
- Stainless Стальной Trim Options: 303 SS and 316 SS stem and gate materials
- Гибкий Sealing: Buna-N, Viton, and Hypalon elastomer options for different media compatibility
- Protective Coatings: DEMCO 10, DEMCO 11, and DEMCO 12 coating options for corrosion resistance
- Repair Комплект Availability: Major Repair Комплект (J025091-10221) for one year’s service
Dimensional Data & Weights
2 in. (50 mm) Полнопроходной & 2-1/2 in. x 2 in. (65 mm x 50 mm) Reduced Port
| Dimension | 2000 WP – 4000 Test | 3000 WP – 6000 Test | 5000 WP – 7500 Test |
|---|---|---|---|
| A – Резьбовой, Weld & Grooved | 9.00″ (229 mm) | 9.00″ (229 mm) | 9.00″ (229 mm) |
| A – Фланцевый – RTJ | 11.62″ (295 mm) | 11.62″ (295 mm) | 12.12″ (308 mm) |
| Фланец OD | 6.50″ (165 mm) | 8.50″ (216 mm) | 8.50″ (216 mm) |
| Фланец Bolts (Qty – Размер) | 8 – 5/8″ | 8 – 7/8″ | 8 – 7/8″ |
| Кольцо Number (RTJ) | R-23 | R-24 | R-24 |
| Overall Высота (Открытый) | 13.00″ (330 mm) | 13.00″ (330 mm) | 13.00″ (330 mm) |
| Overall Ширина | 14.00″ (356 mm) DIA | 14.00″ (356 mm) DIA | 14.00″ (356 mm) DIA |
| Клапан Седло ID (Полнопроходной) | 2.00″ (51 mm) | 2.00″ (51 mm) | 2.00″ (51 mm) |
| Bonnet Высота | 2.62″ (67 mm) | 2.62″ (67 mm) | 2.62″ (67 mm) |
Вес Specifications
| Соединение Тип | 2000 PSI | 3000 PSI | 5000 PSI |
|---|---|---|---|
| Резьбовой, Weld, Grooved | 56 lb (25 kg) | 58 lb (26 kg) | 58 lb (26 kg) |
| Фланцевый | 70 lb (32 kg) | 100 lb (45 kg) | 110 lb (50 kg) |
Стандарт Weld End Suffixes by Pipe Размер
| Pipe Размер | 2000 psi | 3000 psi | 5000 psi |
|---|---|---|---|
| 2 in. (50 mm) | 0 & 1 | 1 & 5 | 1, 2 & 5 |
| 2-1/2 in. (65 mm) | 0 & 1 | 1 & 5 | 1, 2 & 5 |
Suffix codes: 0 – LP, 1 – Sch 80, 2 – XXH, 5 – Sch 160
В сборе Part Number Configuration
| Code Position | Description | Options |
|---|---|---|
| 1st Digit | End Соединение | 0 – Фланцевый (2000 RTJ) | 1 – 3000 RTJ | 2 – 5000 RTJ | 0 – LP Резьбовой | 0 – Sch 80 Grooved | 0 – Sch 40 Weld |
| 2nd Digit | Корпус Configuration | 4 – Резьбовой | 5 – Weld | 6 – Grooved (2000 only) | 7 – Фланцевый |
| 3rd Digit | Шток Материал | 2 – 303 SS | 8 – 316 SS |
| 4th Digit | Gate Материал | 2 – Стальной | 8 – 316 SS |
| 5th Digit | Вставка Материал | 1 – Ductile Iron | 8 – 316 SS |
| 6th Digit | Седло/Уплотнение Elastomer | 1 – Buna-N/Buna-N | 2 – Viton/Viton | 3 – Hypalon/Buna-N |
| 7th Digit | Coating | 0 – Непокрытый | 1 – DEMCO 10 | 4 – DEMCO 11 | 5 – DEMCO 12 |
Example: J0XXXXX = В сборе Base Number. Weld end bodies are not coated. Consult factory for additional trim options.
Уплотнение & Elastomer Options
- Buna-N (Nitrile): Стандарт general-purpose elastomer suitable for most oil and gas applications. Температура range: -40°F to 250°F (-40°C to 121°C).
- Viton (FKM): High-performance fluoroelastomer for elevated temperatures and aggressive hydrocarbon service. Температура range: -20°F to 400°F (-29°C to 204°C).
- Hypalon (CSM): Superior chemical and ozone resistance for specialized applications. Температура range: -40°F to 275°F (-40°C to 135°C).
Корпус Materials
- Резьбовой, Weld & Grooved: ASTM A105 Normalized carbon steel
- 2000 PSI Фланцевый: Fabricated from Weld End Корпус and Commercial Flanges
- 3000 PSI Фланцевый: ASTM A216 Grade WCB cast carbon steel
- 5000 PSI Фланцевый: ASTM A487 Grade 4A or 2B cast steel
Coating Options
- DEMCO 10: Стандарт protective coating for general service
- DEMCO 11: Enhanced corrosion resistance for harsh environments
- DEMCO 12: Maximum protection for severe service conditions
Typical Applications
- Low to medium pressure flowline systems
- Вода injection and disposal well manifolds
- Production gathering and transfer lines
- Refinery and petrochemical process piping
- Pipeline isolation and bypass systems
- General industrial fluid control applications
Why Choose DEMCO DM Серия Низкого давления Gate Клапаны?
DEMCO DM Серия low pressure gate valves deliver proven reliability and cost-effective performance for general service conditions. With multiple pressure ratings, end connections, and material configurations, these valves can be tailored to meet the specific requirements of your application. The comprehensive parts list and repair kit availability ensure long-term maintainability and reduced total cost of ownership.
