Description

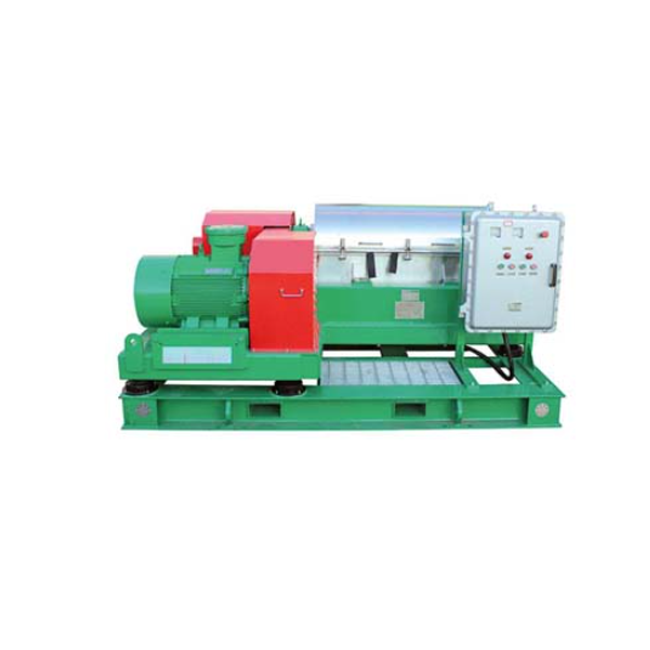

Decanter Centrifuge
Decanter Centrifuge is the premium centrifuge with the best material configuration. It is the best option for middle term and long term investment because of its reliability and working life. This series of decanter centrifuge are popular for the drilling waste management, oil sludge treatment, tank cleaning waste treatment, as well as solids control, barite recovery, Low gravity and high gravity solids separation, dewatering etc.
- High G Усилие up to max 3000. Big Объём Design.
- Bowl Материал Duplex Stainless Стальной 2205 made from centrifugal casting.
- Conveyor Износ Surface: Tungsten carbide tiles .The life is much longer than hard surface. And all tiles is interchangeable for easy maintenance.
- Pressurized Взрывозащищённый with PLC and HMI control for automatically operation.
- All the bearings for the centrifuge are SKF brand premium bearings.
| Модель | LW363C | LW363C-V | LW453C-V | LW553C-V |
|---|---|---|---|---|
| Bowl Диаметр | 360mm(14inch) | 360mm(14inch) | 450mm(18inch) | 550mm(22inch) |
| Bowl Длина | 1271mm(50inch) | 1271mm(50inch) | 1540mm(61inch) | 1800mm(71inch) |
| Max. Производительность | 200GPM(45m3/h) | 200GPM(45m3/h) | 352GPM(80m3/h) | 484GPM(110M3/h) |
| Effective Производительность | 132GPM(30m3/h) | 132GPM(30m3/h) | 264GPM(60m3/h) | 400GPM(90m3/h) |
| Max Bowl Скорость | 3900RPM | 3900RPM | 3200RPM | 3000PRM |
| Typical Bowl Скорость |
3200RPM | 0~3200RPM | 0~2800RPM | 0~2500RPM |
| Max G-Усилие | 3063 | 3063 | 2578 | 2719 |
| Typical G-Усилие | 2062 | 0~2062 | 0~1973 | 0~1888 |
| Separation point | 2~5µm | 2~5μm | 2~5µm | 2~5μm |
| Differential Скорость | 40 | 0~40 | 0~35 | 0~45 |
| Gearbox Torch | 3500N.M | 3500N.M | 7500N.M | 12000N.M |
| Шестерня Box Ration | 57:1 | 57:1 | 57:1 | 35:1 |
| Main Drive Мотор | 37KW(50HP) | 37KW(50HP) | 55KW(75HP) | 90KW(120HP) |
| Back Drive Мотор | 11KW(15HP) | 11KW(15HP) | 22KW(30HP) | 37KW(50HP) |
| Recommend Насос | 7.5KW(10HP) | 7.5KW(10HP) | 15KW(20HP) | 22KW(30HP) |
| EX Стандарт | ExdIIBt4 / IEC EX/ ATEX | |||
| Электрический Carbinet | Exd Стандарт | PLC+Положительный Pressurized | ||
| Вес | 3500KG | 3400KG | 4580KG | 5840KG |
| Dimension | 3305x1638x1277mm | 3305x1638x1277mm | 3824x1798x1317 | 4293x1978x1381 |
