Description

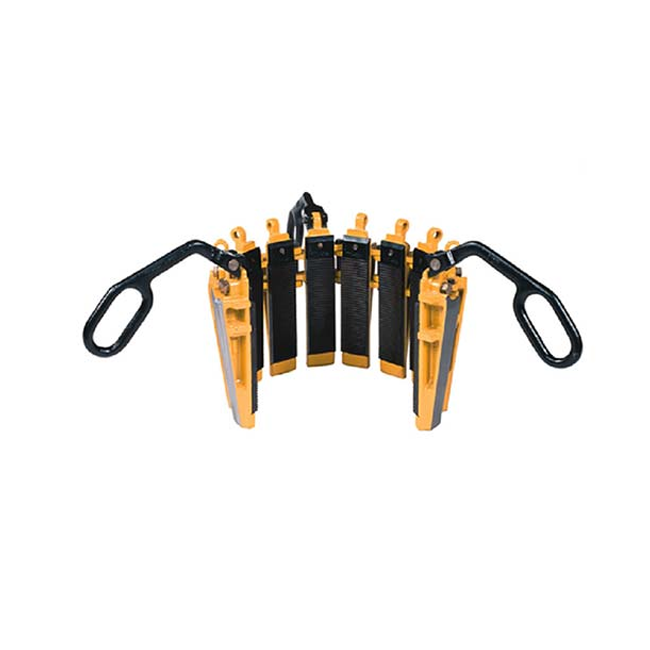

Обсадная колонна Плашка Тип UC-3
Обсадная колонна Slips Тип UC-3 are multi-segment slips with of 3in/ft on the diameter taper slips (except size 8.5/8”). Every segment of one slip is forced equally while working. Thus the casings could keep a better shape. They should work together with spiders and insert bowls with same taper. The slips are designed and manufactured according to API Spec 7K.
| Обсадная колонна OD | specification of body | Total Number of segments | Total Number of Вставка | Taper | Номинальная грузоподъёмность (Short tons) |
|
|---|---|---|---|---|---|---|
| in | mm | 85/8 | 10 | 10 | 1：3 | 250 |
| 7 | 177.8 | |||||
| 75/8 | 193.7 | |||||
| 85/8 | 219.1 | |||||
| 9 | 228.6 | 103/4 | 10 | 10 | 1：4 | |
| 95/8 | 244.5 | |||||
| 103/4 | 273.1 | |||||
| 113/4 | 298.5 | 133/8 | 12 | 12 | ||
| 123/4 | 323.9 | |||||
| 133/8 | 339.7 | |||||
| 16 | 406.4 | As same as133/8 | 14 | 14 | ||
| 185/8 | 473.1 | 17 | 17 | |||
| 20 | 508 | 17 | 17 | |||
| 221/2 | 571.5 | 19 | 19 | |||
| 24 | 609.6 | 19 | 19 | |||
| 26 | 660.4 | 21 | 21 | |||
| 30 | 762 | 24 | 24 | |||
| 36 | 914.4 | 28 | 28 | |||
| 42 | 1066.8 | 32 | 32 | |||
