Description
1. Product Overview
The CAMTOP 20-3/4″ 3M psi Bolted-Крышка Сферический превентор is the largest-bore member of our API 16A Class bolted-cover spherical ПВО family. Designed for the largest surface casing strings, conductor strings, and high-capacity drilling rigs, this 20-3/4″ bore (527 mm) ПВО delivers 3,000 psi working pressure on a forged alloy-steel body with replaceable wear bands and the original CAMTOP dual-packer sealing system.
CAMTOP’s Bolted-Крышка Spherical BOPs (also known as “spherical preventers” or “mud line BOPs”) combine a hinged spherical body that rotates to open or close on the drill string with a bolted cover for fast field rebuild access. The cover is held by a circle of B7 studbolts and 2H nuts – the same principle used on Cameron-style and Shaffer-style spherical BOPs found on jack-up rigs and large onshore drilling platforms worldwide.
This page also includes CAMTOP’s complete 26-part core maintenance BOM (Bill of Materials) plus the optional Уплотнение Комплект 156527 (which includes all recommended spare seals) and Гидроаккумулятор Комплект 152717 (non-standard) — the same parts list we issue with our refurbishment kits.

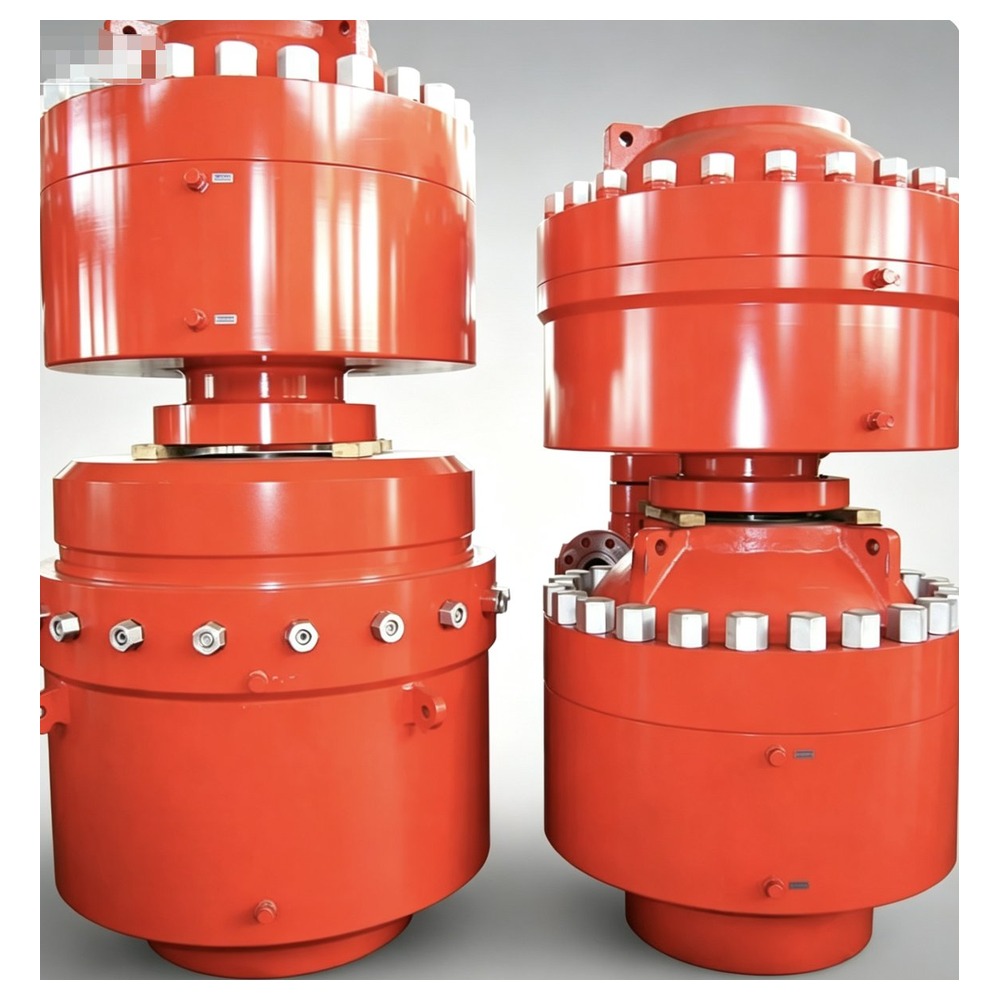

2. Product Image
3. Key Features
- 20-3/4″ (527 mm) Large-Bore Design — the largest bore in CAMTOP’s bolted-cover spherical ПВО family, sized for 20″ conductor strings and surface casing.
- 3,000 psi (3M) Working Pressure — API 16A Class PR1, ideal for conductor-pipe and surface-casing pressure control on land rigs and large jack-ups.
- Bolted-Крышка Construction — covers secured by 24× B7 studbolts and 2H nuts provide fast field-rebuild access without specialized hydraulic tools.
- Кованый Alloy-Стальной Корпус — ASTM A4130 / A4140 low-alloy forged steel, normalized and tempered per API 16A.
- Dual-Пакер Sealing System — interchangeable nitrile (blue, standard) and natural (red, high-temp) elastomer packers seal on open hole, on pipe, or on closed blind.
- Replaceable Wear Bands — top adapter-ring wear band and piston wear rings (P/N 150613 family) reduce erosion on sealing surfaces, increasing service life.
- API 6A Studded End Connections — top and bottom flanges conform to API 6A / 16A flange specifications for direct wellhead-bowl integration.
- Sour-Service (NACE MR0175) Compatible — elastomers, seals, and trim materials available in NACE MR0175 sour H₂S configuration.
- Optional Уплотнение Комплект 156527 — pre-packaged set of all recommended spare seals for fast field rebuild during rig downtime.
- Optional Гидроаккумулятор Комплект 152717 — pre-engineered accumulator pre-charge assembly (non-standard accessory for fast ПВО-loop commissioning).
4. Technical Specifications
| Parameter | Specification | CAMTOP / Industry Standard |
|---|---|---|
| Bore Size | 20-3/4″ (527 mm) | Largest bore in bolted-cover spherical family |
| Working Pressure | 3,000 psi (20.7 MPa) | API 16A Class PR1 |
| Test Pressure | 1.5× WP = 4,500 psi hydrostatic | API 16A / 16D hydrostatic test |
| API Material Class | Class AA / BB / CC / DD / EE | Per API 6A material classification |
| Performance Class | PR1 | API 16D performance |
| Temperature Class | T-21 (Class B, -29 °C to +121 °C) | Low-temp carbon / alloy steel |
| Корпус Material | Кованый alloy steel ASTM A4130 / A4140 | Normalized & tempered, ultrasonic-tested |
| Крышка Bolts | B7 studbolts × 2H nuts, 24× around cover | ASTM A193 B7 / A194 2H |
| Elastomer Material | Nitrile (blue) standard; Natural (red) high-temp | H₂S / NACE MR0175 optional |
| Replaceable Wear Bands | Поршень wear rings × 3; Переходник-ring wear band × 1 | Extends ПВО service life |
| End Connection | API 6A studded flange (top & bottom) | API 6A / 16A flange standard |
| Operation | Гидравлический actuator (separate unit) | 3000 psi hydraulic supply standard |
| Гидравлический Operating Pressure | 1,500 – 3,000 psi | Standard rig accumulator charge |
| Approx. Weight | ~12,500 kg (27,500 lb) | Heavy-duty forged construction |
| Approx. Height | 2,032 mm (80″) | Spherical cavity included |
| Operating Temperature | -29 °C to +121 °C (-20 °F to +250 °F) | API 16A Class B |
| Coating | Red epoxy (RAL 3000) marine-grade | Salt-water and offshore-rated |
| Standard Sour Trim | NACE MR0175 compliant | Sour-service H₂S available |
| Optional Уплотнение Комплект | P/N 156527 — full set of recommended spare seals | *Not a standard accessory |
| Optional Гидроаккумулятор Комплект | P/N 152717 — pre-charge assembly (non-standard) | †Not a standard accessory |
5. Component Breakdown & Construction (Figure 4-13 Exploded View)
The diagram below shows the complete CAMTOP Bolted-Крышка Сферический превентор exploded view, with all replaceable component groups called out for maintenance reference.
| Callout | Component | Function |
|---|---|---|
| ① | Гайка for Top API Фланец | Secures top flange to upper housing |
| ② | Шпилька for Top API Фланец | High-tensile threaded stud for top flange |
| ③ | Гайка (cover) | Secures bolted cover to upper housing |
| ④ | Шпилька (cover) | High-tensile stud holding cover in place |
| ⑤ | Anchor Shackle | Lifting eye for rig hoisting / ПВО handling |
| ⑥ | Верхний Корпус, Studded | Top forging — accepts cover flange & pivots shut |
| ⑦ | Sealing Element (packer) | Nitrile (blue) or Natural (red) elastomer |
| ⑧ | Уплотнение, Переходник O.D. (5) | Outer-diameter seal between adapter ring & body |
| ⑨ | Уплотнение, Переходник Top (C) | Top-face seal of adapter ring |
| ⑩ | Переходник Кольцо* | Wear-resistant inner sleeve (with optional wear band) |
| ⑪ | Уплотнение, Переходник I.D. Верхний (B) | Верхний inner-diameter seal of adapter |
| ⑫ | Уплотнение, Переходник I.D. Нижний (4) | Нижний inner-diameter seal of adapter |
| ⑬ | Поршень | Moves sealing element up/down to close on pipe |
| ⑭ | Wear Band | Replaceable wear surface (top & bottom of piston) |
| ⑮ | Уплотнение, Поршень O.D. Верхний (3) and Нижний (1) | Outer piston seals (top & bottom) |
| ⑯ | Уплотнение, Поршень I.D. Верхний (A) | Верхний piston inner-diameter seal |
| ⑰ | Уплотнение, Поршень I.D. Нижний (2) | Нижний piston inner-diameter seal |
| ⑱ | Wear Band | Replaceable wear surface (additional) |
| ⑲ | Нижний Корпус, Flanged | Bottom forging —
