CAMTOP SMLOCK Hub Clamp — API 16A Компактный Clamp Разъём

The CAMTOP SMLOCK Hub Clamp is a compact, high-pressure clamp connector designed and manufactured in full compliance with API 16A specification for wellhead and Christmas tree equipment. Engineered for fast make-up and break-out of hub-type connections, the SMLOCK design eliminates the need for heavy hammer unions and provides a leak-tight seal across all standard pressure classes (2,000 / 3,000 / 5,000 / 10,000 / 15,000 PSI).

Manufactured with appropriate forged materials for specific pressure ratings, the CAMTOP SMLOCK Hub Clamp is available in standard A105 carbon steel and AISI 4130 low-alloy steel, with full customisation to other carbon, low-alloy, and stainless-steel grades per customer specification. Sizes cover the full range from 1/2″ to 7-1/16″ NPSO diameter, with all PSL grades (PSL 1 through PSL 4) and CL temperature classes (CL KU, EE, FF, HH, LL, and exotic classes) available.

Product Image — В сборе & Specifications

Complete assembly drawing showing 5-piece composition, all dimensional specifications, and standard size / pressure class tables.

Product Image

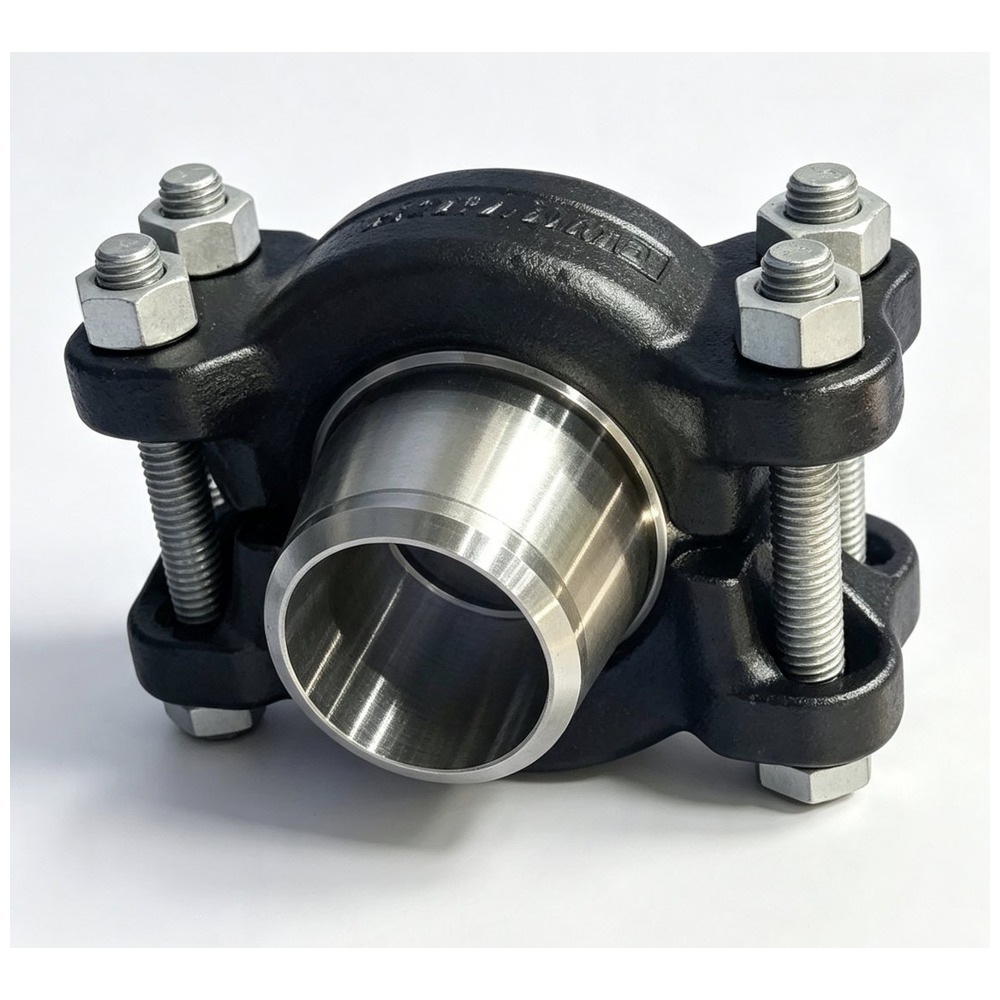

The SMLOCK Hub Clamp is engineered as a compact clamp connector for wellhead and Christmas tree equipment. The clamp body is manufactured from high-strength cast iron, with a precision-machined stainless steel hub featuring ring grooves for hub connector engagement. Four heavy-duty stud-and-nut assemblies provide uniform clamping force and reliable sealing under high pressure.

Шпонка Features

• API 16A Compliance — Designed and manufactured to American Petroleum Institute 16A specification for wellhead and Christmas tree equipment
• Компактный Clamp Разъём Design — Replaces traditional hammer unions with a quick-connect clamp, reducing rig-up time by up to 60%
• 5-Piece Simple Composition — Smlock Clamp + Шпилька Болт + Гайка C10 + Smlock Hub + Прокладка IP16 Control — minimal BOM, easy field service
• Кованый Материал Construction — Стандарт A105 carbon steel / AISI 4130 low-alloy steel; custom stainless available
• Full Размер Range — 1/2″ to 7-1/16″ NPSO diameter, with 62 gasket sizes covering the most common wellhead flange connections
• All PSL Grades — PSL 1, PSL 2, PSL 3, PSL 3G, PSL 4 — covers standard service through sour H₂S environments
• All CL Температура Classes — CL KU (K/U), CL EE, CL FF, CL HH, CL HH1, CL HH2, CL LL, CL FF1 — covers -60 °F to +250 °F operating range
• Multiple Давление Ratings — 2,000 / 3,000 / 5,000 / 10,000 / 15,000 PSI working pressure across all sizes
• IP16 Control Прокладка — Стандарт hex-profile gasket with integral metal-to-metal seal for bubble-tight shut-off
• Быстрый-Make Шпилька Болт Система — Pre-lubricated stud bolts (BHZ series) with castellated nuts for repeatable torque loading
• Reusable Design — All 5 components are field-replaceable; gasket and clamp can be inspected without special tools
• Cost-Effective Устьевое оборудование Solution — Нижний cost than flanged connections of equivalent pressure class; lighter to ship and handle

5-Piece Composition & Стандарт Quantity

Hub Clamp Dimensions

Стандарт clamp body dimensions for the six most common line sizes. All dimensions in inches (in) and millimetres (mm).

Уплотнение Прокладка Sizes (IP16 Control Серия)

Full range of 62 standard IP16 Control gasket sizes, matched to SMLOCK Hub Clamp line sizes. Индивидуальный materials and coatings available for sour-service (NACE MR0175) applications.

Ref	Outside Диаметр		Inside Диаметр		Ребро Thickness		Overall Thickness		Sealing Вес
	in	mm	in	mm	in	mm	in	mm	Lbs	Kg
1	2.09	53.0	1.00	25.40	0.125	3.2	0.15	Похожие продукты Противофонтанное оборудование Модель QB21-80 3-Цилиндр Crank Плунжерный насос | ПВО Гидравлический Control Насос Подробнее Противофонтанное оборудование CAMTOP Hi-G Drying Shaker | 8.0G, 150 m³/h | Бурение Cuttings CT-HGDS-001 Подробнее Противофонтанное оборудование FJ105/70-NC31 Drill Internal Противовыбросовый превентор | IBOP Drill String Предохранительный клапан Подробнее Противофонтанное оборудование Кернодержатель PEEK Модель DCH-02 Подробнее CAMTOP Naft — сертифицированный производитель нефтегазового оборудования API 6A / 16A / 16C. Все права защищены.
