CAMTOP Гидравлический Bucking Блок

Description

2 7/8″ – 15 1/4″
Диаметр Производительность

180 KN.m
Max Break-out Крутящий момент

360°
Непрерывный Rotation (Optional)

Product Overview

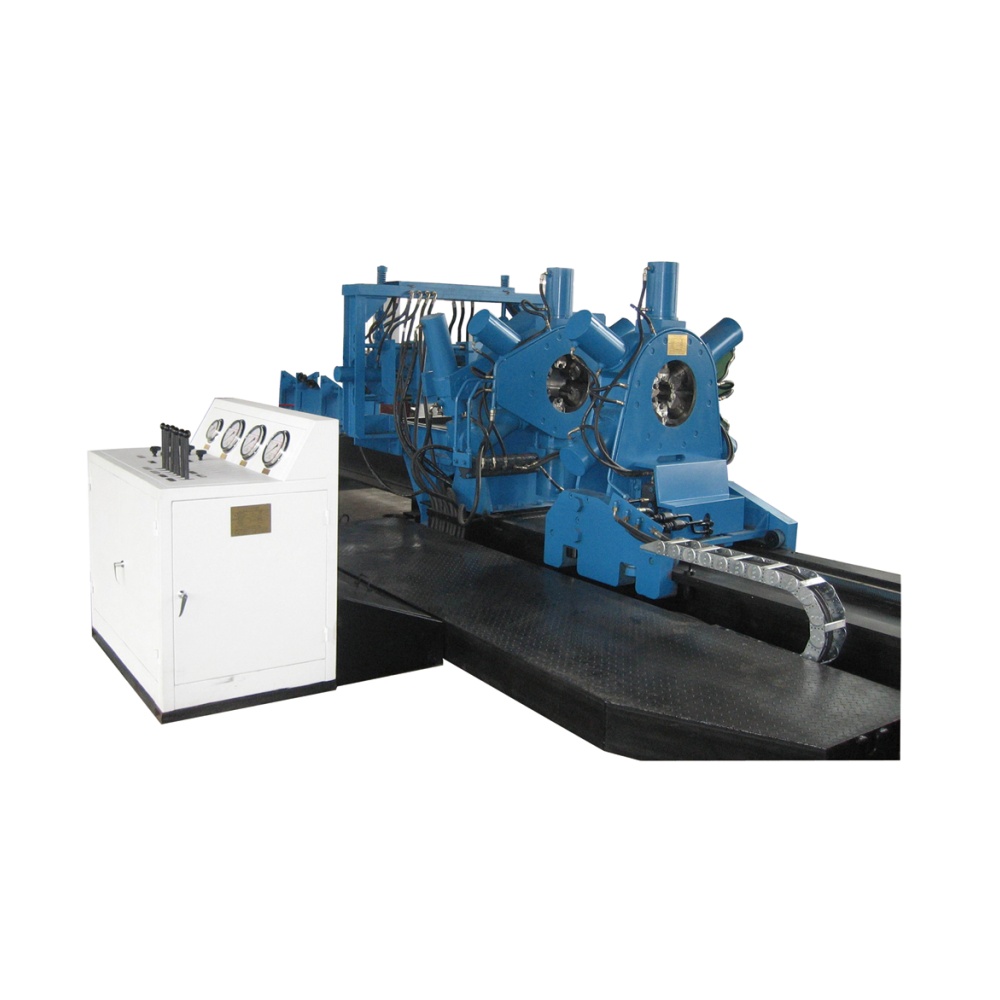

CAMTOP YXQ16-II Гидравлический Bucking Блок (Make Up & Break Out Machine) is a self-contained hydraulic drive unit designed for fast and accurate make-up or break-out of threaded connections of tubular tools and motors in either workshop or oil field location.

This machine features a patent quick rotation unit, synchronized clamp cylinders in the movable chuck and shock screwing chuck, and an optional 360° continuous rotation headstock. It delivers reliable torque control and high efficiency for tubular assembly and disassembly operations.

Specifications – YXQ16-II Make Up & Break Out Machine

Parameter	YXQ16-II-320	YXQ16-II-400
Chucking Производительность	73mm ~ 340mm	73mm ~ 390mm
Мотор Мощность	15 kW	15 kW
Мотор Скорость	1500 rpm	1500 rpm
Max. Make-up Крутящий момент	150 KN.m	150 KN.m
Max. Break-out Крутящий момент	180 KN.m	180 KN.m
Stroke for Push/Pull Цилиндр	1500 mm	1500 mm
Max. Tons for Push/Pull Цилиндр	150 KN	150 KN
Быстрый Эксплуатация Крутящий момент	2.5 ~ 4.0 KN.m	2.5 ~ 4.0 KN.m

Шпонка Features

Patent Быстрый Rotation Блок Fast and efficient rotation for rapid make-up and break-out cycles.	Wide Диаметр Производительность Handles tubular tools from 2 7/8″ to 15 1/4″ in diameter.
Synchronized Clamp Cylinders Movable chuck and shock screwing chuck work in sync for stable operation.	High Крутящий момент Output 150 KN.m make-up torque and 180 KN.m break-out torque for heavy-duty connections.
360° Непрерывный Rotation Optional headstock rotation for complete circumferential make-up operations.	Workshop & Масло Field Use Self-contained hydraulic unit suitable for both indoor workshop and outdoor rig use.

When Ordering Please Specify

✔ Tubular diameter range and max torque requirement

✔ Модель (YXQ16-II-320 or YXQ16-II-400)

✔ Мощность supply and optional 360° continuous rotation headstock

Applications

▶ Drill pipe and collar make-up	▶ Downhole motor break-out	▶ Tubular tools threading operations
▶ Workshop repair and maintenance	▶ Масло field rig site service	▶ Тяжёлый-duty tubular connection assembly
