Description

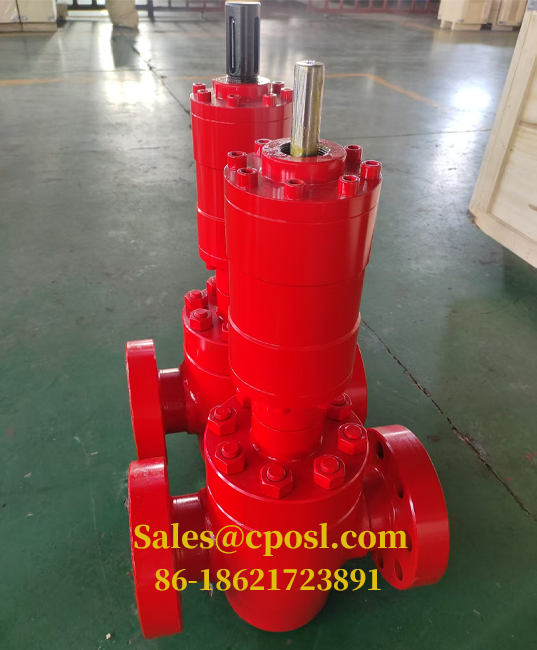

The Гидравлический Gate valve is as part of the wellhead equipment the hydraulic gate valve is manufactured as per API 6A specification,mainly used to control the connection and disconnection of piping
The hydraulic gate valve is designed with temperature rating for API Spec 6A in L, P, R, S, T, U type, – available for temperatures up to 350 ° C or 650 ° C. Давление classes 2000psi, 3000psi, 5000psi, 10000psi, 15000psi, 20000psi. Материал level API 6A AA~FF, product specification level PSL1~3, performance level PR1~2.
Features of hydraulic gate valve:
* The hydarulic gate valve is designed with simple structure, easily removable gate and seat assembly.
* Bi-directional use, long service life.
* Thrust bearing for minimum torque.
* Набивка injection fitting for seal integrity.
* Gate and seat of hydraulic gate valve with hard facing for maximum wear and corrosion resistance.
* The hydraulic gate valve is manufactured with orged body construction
* Can be fitted with expanding or slab gates.
* Available as manual or actuated versions.
* Being an OEM manufacturer, these valves and their parts are compatible with the leading brands
Technical parameter of hydraulic gate valve:
| Bore Размер: | 2-1/16″ to 7 1/16″ |
|---|---|
| Рабочее давление Rating: | 5, 000psi to 20, 000psi |
| Материал Class: | AA, BB, CC, DD, EE, FF |
| Температура Class: | K, L, P, R, S, T, U, V, X |
| Product Specification Уровень: | PSL1 to PSL3 |
| Performance Rating: | PR1 and PR2 |
| End connections: | Фланцевый, Studded |
| Medium: | Масло, Газ, Вода, etc |
