3″ 5000 PSI Ручной Reset Relief Клапан Parts & Repair Kits – OTECO Replacement Components
Complete replacement parts catalog for the OTECO 3″ 5000 PSI Ручной Reset Relief Клапан. This high-pressure safety valve is widely used in oilfield drilling, well servicing, and flowline operations for reliable overpressure protection. Our comprehensive parts inventory ensures fast turnaround on maintenance, repairs, and rebuilds to keep your operations running safely and efficiently.
Product Overview
The 3″ 5000 PSI Ручной Reset Relief Клапан is a critical safety component in high-pressure oilfield systems. When system pressure exceeds the preset relief setting, the valve opens to vent excess pressure. The manual reset feature requires operator intervention to reclose, ensuring that overpressure events are always acknowledged and investigated. This valve is rated for 5,000 PSI (345 Bar) working pressure with 3″ nominal flow path, making it ideal for high-volume flowline and manifold applications.

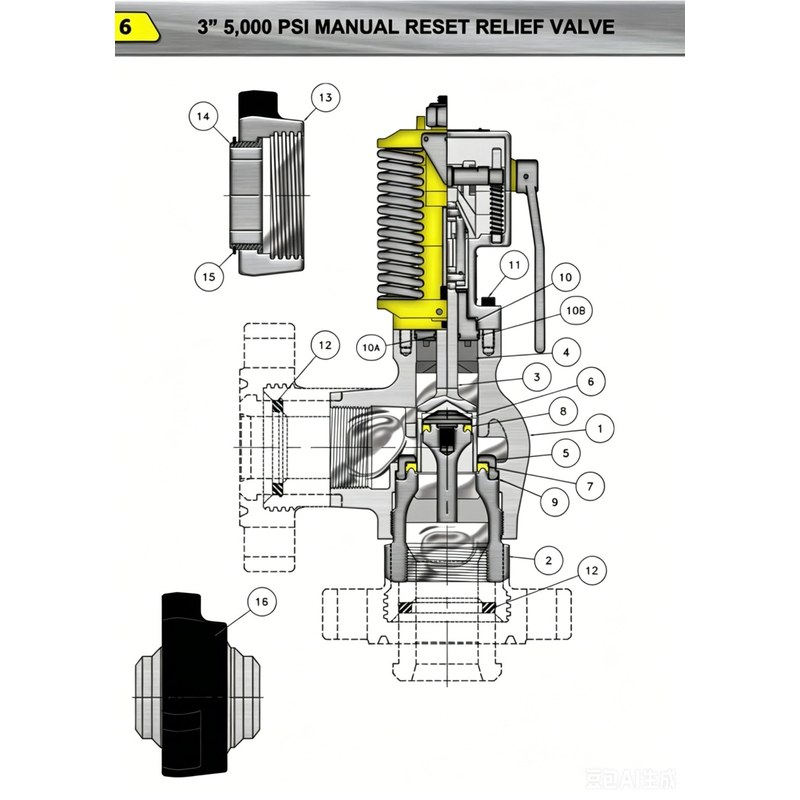

Exploded View Diagram
Complete Parts List
The following table lists all replacement components for the 3″ 5000 PSI Ручной Reset Relief Клапан, including standard and sour gas service variants:
Item 1 – Клапан Корпус
| Description |
OTECO Part No. |
Weight (lbs/kg) |
| BODY with 3″ LPT OUTLET, STANDARD |
143100 |
39 / 17.7 |
| BODY with 3″ LPT OUTLET, SOUR GAS |
143189 |
39 / 17.7 |
| BODY with 3.125″-5,000# RJ FLANGED OUTLET, STANDARD, CHARPY |
143019 |
57 / 25.9 |
| BODY with 3″ FIGURE 1502 FEMALE OUTLET, STANDARD |
143191 |
47 / 21.3 |
| BODY with 3″ FIGURE 1502 MALE OUTLET, STANDARD |
143192 |
47 / 21.3 |
Item 2 – Inlet Переводник
| Description |
OTECO Part No. |
Weight (lbs/kg) |
| SUB with 3″ LPT INLET, STANDARD |
143190 |
12 / 5.4 |
| SUB with 3″ LPT INLET, SOUR GAS |
143188 |
12 / 5.4 |
| SUB with 3.125″-5,000# RJ FLANGED INLET, STANDARD |
142038 |
30 / 13.6 |
| SUB with 3″ FIGURE 1502 FEMALE INLET, STANDARD |
143014 |
20 / 9.1 |
| SUB with 3″ FIGURE 1502 FEMALE INLET, SOUR GAS |
143021 |
20 / 9.1 |
Item 3 – Поршень with Подшипник В сборе
| Description |
OTECO Part No. |
Weight (lbs/kg) |
| PISTON with BEARING ASSEMBLY, STANDARD |
143110 |
2 / 0.9 |
| PISTON with BEARING ASSEMBLY, SOUR GAS |
143007 |
2 / 0.9 |
Item 4 – Cushion Кольцо
| Description |
OTECO Part No. |
Weight (lbs/kg) |
| CUSHION RING, (NBR) NITRILE, STANDARD |
143130 |
0.5 / 0.23 |
| CUSHION RING, (ECO) HYDRIN, SOUR GAS |
142131 |
0.5 / 0.23 |
Item 5 – Outer Retainer
| Description |
OTECO Part No. |
Weight (lbs/kg) |
| OUTER RETAINER, STANDARD |
143170 |
2 / 0.9 |
| OUTER RETAINER, SOUR GAS |
143006 |
2 / 0.9 |
Item 6 – Inner Retainer
| Description |
OTECO Part No. |
Weight (lbs/kg) |
| INNER RETAINER, STANDARD |
143160 |
0.5 / 0.23 |
| INNER RETAINER, SOUR GAS |
143010 |
0.5 / 0.23 |
Item 7 – Outer Уплотнение
| Description |
OTECO Part No. |
Weight (lbs/kg) |
| OUTER SEAL, (UHMWPE) POLYETHYLENE, STANDARD |
302686 |
0.1 / 0.05 |
| OUTER SEAL, (ECO) HYDRIN, SOUR GAS |
143009 |
0.1 / 0.05 |
| OUTER SEAL, (HNBR) HYDROGENATED NITRILE |
143181 |
0.1 / 0.05 |
Item 8 – Inner Уплотнение
| Description |
OTECO Part No. |
Weight (lbs/kg) |
| INNER SEAL, (UHMWPE) POLYETHYLENE, STANDARD |
302687 |
0.1 / 0.05 |
| INNER SEAL, (ECO) HYDRIN, SOUR GAS |
143008 |
0.1 / 0.05 |
Item 9 – Переводник to Корпус Кольцо уплотнительное
| Description |
OTECO Part No. |
Weight (lbs/kg) |
| SUB to BODY “O”-RING, (NBR) NITRILE, STANDARD |
143150 |
0.1 / 0.05 |
| SUB to BODY “O”-RING, (VIT) VITON, SOUR GAS |
143151 |
0.1 / 0.05 |
Item 10 – Шток Bushing & O-Rings
| Description |
OTECO Part No. |
Weight (lbs/kg) |
| STEM BUSHING |
143140 |
2 / 0.9 |
| STEM to STEM BUSHING “O”-RING, (NBR) NITRILE, STANDARD |
302752 |
0.1 / 0.05 |
| STEM BUSHING to BODY “O”-RING, (NBR) NITRILE, STANDARD |
302750 |
0.1 / 0.05 |
Item 11 – Socket Head Cap Screw
| Description |
OTECO Part No. |
Weight (lbs/kg) |
| 1/2″-13UNC SOCKET HEAD CAP SCREW, CADMIUM, STANDARD |
143310 |
0.1 / 0.05 |
| 1/2″-13UNC SOCKET HEAD CAP SCREW, CADMIUM, SOUR GAS |
143311 |
0.1 / 0.05 |
Item 12 – FMC Соединение Уплотнение Кольцо
| Description |
OTECO Part No. |
Weight (lbs/kg) |
| 3″ FMC UNION SEAL RING 602/1002/1502, (NBR) NITRILE, STANDARD |
301862 |
0.1 / 0.05 |
| 3″ FMC UNION SEAL RING 602/1002/1502, (VIT) VITON, SOUR GAS |
302542 |
0.1 / 0.05 |
FMC Detachable Гайка В сборе (Item 13-15)
| Item |
Description |
OTECO Part No. |
Weight (lbs/kg) |
| 13 |
3″ FIGURE 1502 UNION NUT, STANDARD/DETACHABLE, DNV |
302625 |
12 / 5.4 |
| 13 |
3″ FIGURE 1502 UNION NUT, STANDARD/DETACHABLE, SOUR GAS, CHARPY |
302540 |
12 / 5.4 |
| 14 |
3″ FIGURE 1502 UNION NUT, RETAINER RING SEGMENTS, STANDARD, DNV |
302628 |
0.5 / 0.23 |
| 14 |
3″ FIGURE 1502 UNION NUT, RETAINER RING SEGMENTS, SOUR GAS |
302541 |
0.5 / 0.23 |
| 15 |
3″ FIGURE 1502 UNION NUT, RETAINER SNAP RING, ALL ASSEMBLIES |
301515 |
0.1 / 0.05 |
FMC Соединение Weldolet В сборе (Item 16) – Not Included with RRV В сборе
| Description |
